Fujitsu ESPRIMO D956/E94+

Tuote

Valmistaja

Fujitsu

Tuoteperhe / -sarja

ESPRIMO D

Tuotenimi

D956/E94+

Julkaisupäivä

12.10.2016

Valmistajan linkki

http://www.fujitsu.com/fts/products/computing/pc/desktops/espr..

Tuotekoodit

Valmistajan tuotekoodit

• VFY:D0956P37APNC

GTIN- / EAN-koodit

• 4057185716772

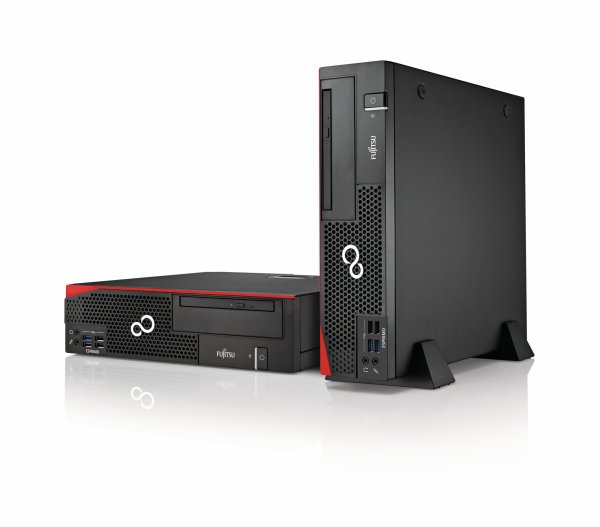

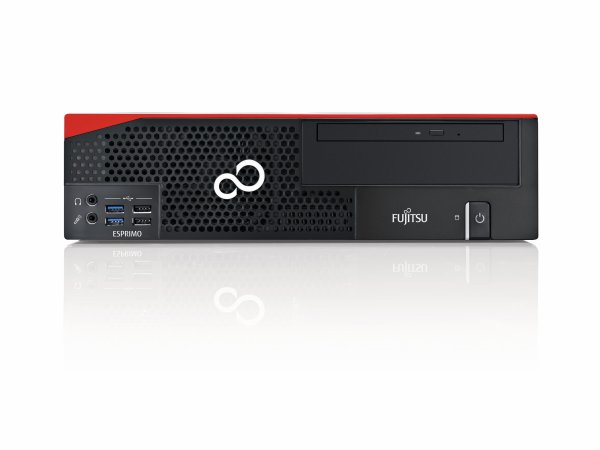

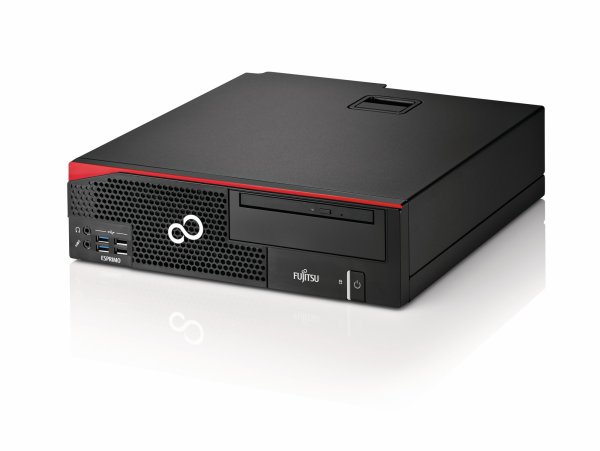

Tuotekuvat

Processor

Processor manufacturer

Intel

Processor family

6th gen Intel® Core™ i7

Processor model

i7-6700

Processor cores

4

Processor frequency

3.4 GHz

Processor boost frequency

4 GHz

Processor socket

LGA 1151 (Socket H4)

Processor cache

8 MB

Processor cache type

Smart Cache

Processor threads

8

System bus rate

8 GT/s

Bus type

DMI3

Processor lithography

14 nm

Processor operating modes

64-bit

Processor series

Intel Core i7-6700 Desktop series

Processor codename

Skylake

Thermal Design Power (TDP)

65 W

Tcase

71 °C

PCI Express slots version

3.0

Maximum number of PCI Express lanes

16

PCI Express configurations

2x8,1x8+2x4,1x16

Number of processors installed

1

Stepping

R0

Maximum internal memory supported by processor

64 GB

Memory types supported by processor

DDR3L-SDRAM,DDR4-SDRAM

Memory clock speeds supported by processor

1333,1600,1866,2133 MHz

Memory bandwidth supported by processor (max)

34.1 GB/s

ECC supported by processor

Ei

Memory voltage supported by processor

1.35 V

Memory

Internal memory

16 GB

Internal memory type

DDR4-SDRAM

Maximum internal memory

64 GB

Memory layout (slots x size)

2 x 8 GB

Memory slots

4x DIMM

Memory clock speed

2133 MHz

Non-ECC

Kyllä

Memory channels

Dual-channel

Storage

Total storage capacity

256 GB

Optical drive type

DVD Super Multi

Storage media

SSD

Number of storage drives installed

1

Number of SSDs installed

1

SSD capacity

256 GB

SSD interface

M.2

RAID support

Kyllä

RAID levels

0,1,5,10

Graphics

Discrete graphics adapter

Ei

On-board graphics adapter

Kyllä

Discrete graphics adapter model

Not available

On-board graphics adapter family

Intel® HD Graphics

On-board graphics adapter model

Intel® HD Graphics 530

On-board graphics adapter base frequency

350 MHz

On-board graphics adapter dynamic frequency (max)

1150 MHz

Maximum on-board graphics adapter memory

1.74 GB

Number of displays supported (on-board graphics)

3

On-board graphics adapter DirectX version

12.0

On-board graphics adapter OpenGL version

4.4

On-board graphics adapter ID

1912

Graphics adapter Open GL support

Kyllä

Network

Ethernet LAN

Kyllä

Ethernet LAN data rates

10,100,1000 Mbit/s

Cabling technology

10/100/1000Base-T(X)

Ports & interfaces

USB 2.0 ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

6

DVI port

Kyllä

DisplayPorts quantity

2

PS/2 ports quantity

2

Ethernet LAN (RJ-45) ports

1

Microphone in

Kyllä

Headphone outputs

1

Line-out

Kyllä

Line-in

Kyllä

Serial ports quantity

1

Expansion slots

PCI Express x1 (Gen 1.x) slots

1

PCI Express x4 (Gen 2.x) slots

1

PCI Express x16 (Gen 3.x) slots

1

Design

Chassis type

Desktop

Placement supported

Horizontal/Vertical

Number of 3.5" bays

2

Number of 5.25" bays

1

Cable lock slot

Kyllä

Cable lock slot type

Kensington

Product colour

Black, Red

Performance

Product type

PC

Motherboard chipset

Intel® Q170

Audio chip

Realtek ALC671

Audio system

High Definition Audio

Audio output channels

5.1 channels

Password protection

Kyllä

Password protection type

BIOS, HDD, Supervisor, User

BIOS type

UEFI

Software

Operating system installed

Windows 10 Pro

Operating system architecture

64-bit

Pre-installed software

Adobe Reader, McAfee Multi Access Security, Microsoft Office

Processor special features

Intel® Small Business Advantage (Intel® SBA)

Kyllä

Intel® Wireless Display (Intel® WiDi)

Kyllä

Intel 64

Kyllä

Enhanced Intel SpeedStep Technology

Kyllä

Embedded options available

Kyllä

Intel® InTru™ 3D Technology

Kyllä

Intel® Insider™

Kyllä

Intel® Clear Video HD Technology (Intel® CVT HD)

Kyllä

Intel Clear Video Technology

Kyllä

Intel VT-x with Extended Page Tables (EPT)

Kyllä

Intel TSX-NI

Kyllä

Idle States

Kyllä

Thermal Monitoring Technologies

Kyllä

Intel Stable Image Platform Program (SIPP)

Kyllä

Intel® AES New Instructions (Intel® AES-NI)

Kyllä

Intel® Secure Key

Kyllä

Intel® OS Guard

Kyllä

Intel Trusted Execution Technology

Kyllä

Execute Disable Bit

Kyllä

Intel Enhanced Halt State

Kyllä

Intel Software Guard Extensions (Intel SGX)

Kyllä

Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)

Kyllä

Processor package size

37.5 x 37.5 mm

Supported instruction sets

SSE4.1,AVX 2.0,SSE4.2

Processor code

SR2BT

Scalability

1S

CPU configuration (max)

1

Graphics & IMC lithography

14 nm

Thermal solution specification

PCG 2015C

Intel Virtualization Technology for Directed I/O (VT-d)

Kyllä

Intel Identity Protection Technology version

1.00

Intel Stable Image Platform Program (SIPP) version

1.00

Intel Secure Key Technology version

1.00

Intel Virtualization Technology (VT-x)

Kyllä

Intel Small Business Advantage (SBA) version

1.00

Intel TSX-NI version

1.00

Processor ARK ID

88196

Intel® Turbo Boost Technology

2.0

Intel® Hyper Threading Technology (Intel® HT Technology)

Kyllä

Intel® Quick Sync Video Technology

Kyllä

Intel® Identity Protection Technology (Intel® IPT)

Kyllä

Conflict-Free processor

Kyllä

Power

Power supply

280 W

Power supply input voltage

100 - 240 V

Power supply input frequency

50 - 60 Hz

Operational conditions

Operating temperature (T-T)

10 - 35 °C

Operating relative humidity (H-H)

5 - 85 %

Certificates

Certification

WEEE, TÜV GS, CE, FCC, cCSAus

Weight & dimensions

Width

332 mm

Depth

338 mm

Height

89 mm

Weight

8000 g

Packaging content

Display included

Ei

Mouse included

Kyllä

Keyboard included

Kyllä

Cables included

AC, DisplayPort

Manual

Kyllä

Technical details

Sustainability certificates

Blue Angel, RoHS, Gold, ENERGY STAR

Other features

Optical drives quantity

1
