Asrock Z270M Extreme4

Tuote

Valmistaja

Asrock

Tuotenimi

Z270M Extreme4

Julkaisupäivä

30.11.2016

Valmistajan linkki

http://www.asrock.com/MB/Intel/Z270M%20Extreme4/index.asp

Tuotekoodit

Valmistajan tuotekoodit

• 90-MXB3X0-A0UAYZ
• Z270M EXTREME4

GTIN- / EAN-koodit

• 4717677332506

Tuotekuvat

Processor

Processor manufacturer

Intel

Processor socket

LGA 1151 (Socket H4)

Compatible processor series

Intel® Celeron®, Intel® Pentium®

Maximum number of SMP processors

1

Intel Core i3/i5/i7/i9 series

i3-6xxx,i5-6xxx,i7-6xxx

Memory

Supported memory types

DDR4-SDRAM

Number of memory slots

4

Memory slots type

DIMM

Memory channels

Dual-channel

ECC

Kyllä

Non-ECC

Kyllä

Supported memory clock speeds

2133,2400,2800,2933,3200,3600 MHz

Supported memory module capacities

4GB,8GB,16GB

Maximum internal memory

64 GB

Unbuffered memory

Kyllä

Storage controllers

RAID levels

0,1,5,10

Graphics

Parallel processing technology support

2-Way CrossFireX,2-Way SLI,4-Way CrossFireX

Maximum resolution

3840 x 2160 pixels

HDCP

Kyllä

DirectX version

12.0

Discrete graphics support

Kyllä

Internal I/O

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

Number of SATA III connectors

6

Number of SATA connectors

6

Audio connector

Kyllä

Front panel connector

Kyllä

ATX Power connector (24-pin)

Kyllä

CPU fan connector

Kyllä

Number of chassis fan connectors

2

Chassis intrusion connector

Kyllä

EPS power connector (8-pin)

Kyllä

Number of COM connectors

1

TPM connector

Kyllä

Thunderbolt headers

2

12V power connector

Kyllä

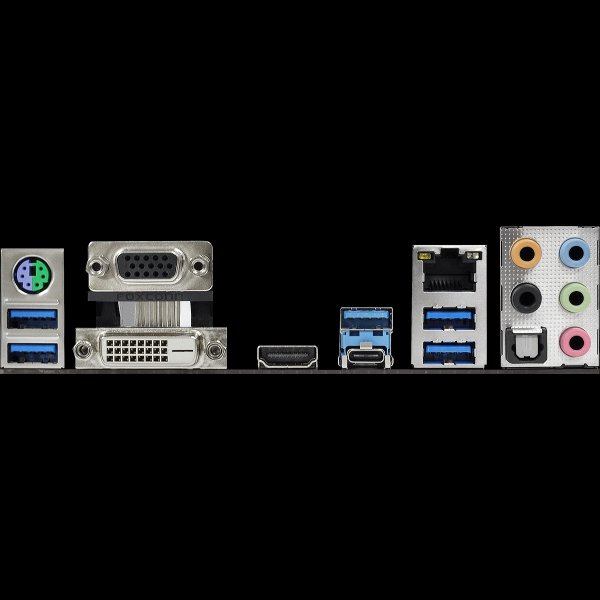

Rear panel I/O ports

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

Ethernet LAN (RJ-45) ports

1

PS/2 ports quantity

1

VGA (D-Sub) ports quantity

1

HDMI ports quantity

1

DVI-D ports quantity

1

Headphone outputs

1

Microphone in

Kyllä

S/PDIF out port

Kyllä

USB connector type

USB Type-A

Network

Ethernet LAN

Kyllä

Ethernet interface type

Gigabit Ethernet

LAN controller

Intel® I219

Wake-on-LAN ready

Kyllä

Features

Component for

PC

Motherboard form factor

Micro ATX

Motherboard chipset family

Intel

Motherboard chipset

Intel® Z270

Audio chip

Realtek ALC1220

Audio output channels

7.1 channels

PC health monitoring

CPU,FAN,Temperature,Voltage

Cooling type

Passive

Power source type

ATX

Windows operating systems supported

Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64

Certification

FCC, CE, WHQL, ErP/EuP

Expansion slots

PCI Express x1 (Gen 3.x) slots

1

PCI Express x16 (Gen 3.x) slots

3

Number of M.2 (M) slots

2

BIOS

BIOS type

UEFI AMI

BIOS memory size

128 Mbit

ACPI version

6.0

Processor special features

Intel® Clear Video HD Technology (Intel® CVT HD)

Kyllä

Trusted Platform Module (TPM)

Kyllä

Intel Rapid Storage Technology

Kyllä

Intel® Smart Response Technology

Kyllä

Intel Extreme Memory Profile (XMP)

Kyllä

Intel® Quick Sync Video Technology

Kyllä

Intel® Insider™

Kyllä

Intel® InTru™ 3D Technology

Kyllä

Intel® Optane™ Memory Ready

Kyllä

Weight & dimensions

Width

244 mm

Depth

244 mm

Packaging content

Cables included

SATA

Manual

Kyllä

Drivers included

Kyllä

Bundled software

ASRock A-Tuning\nASRock AURA RGB LED\nASRock APP Charger\nASRock XFast LAN\nASRock EZ Mode\nASRock Full HD UEFI\nASRock My Favorites in UEFI\nASRock Instant Flash\nASRock Internet Flash\nASRock Crashless BIOS\nASRock UEFI System Browser\nASRock UEFI Tech Service\nASRock Easy RAID Installer

Other features

Quick installation guide

Kyllä

Utilities included

Kyllä
