Aten CS22DP-AT

Tuote

Valmistaja

Aten

Tuotenimi

CS22DP-AT

Valmistajan linkki

https://www.atten.eu/

Tuotekoodit

Valmistajan tuotekoodit

• CS22DP-AT

GTIN- / EAN-koodit

• 4719264645525

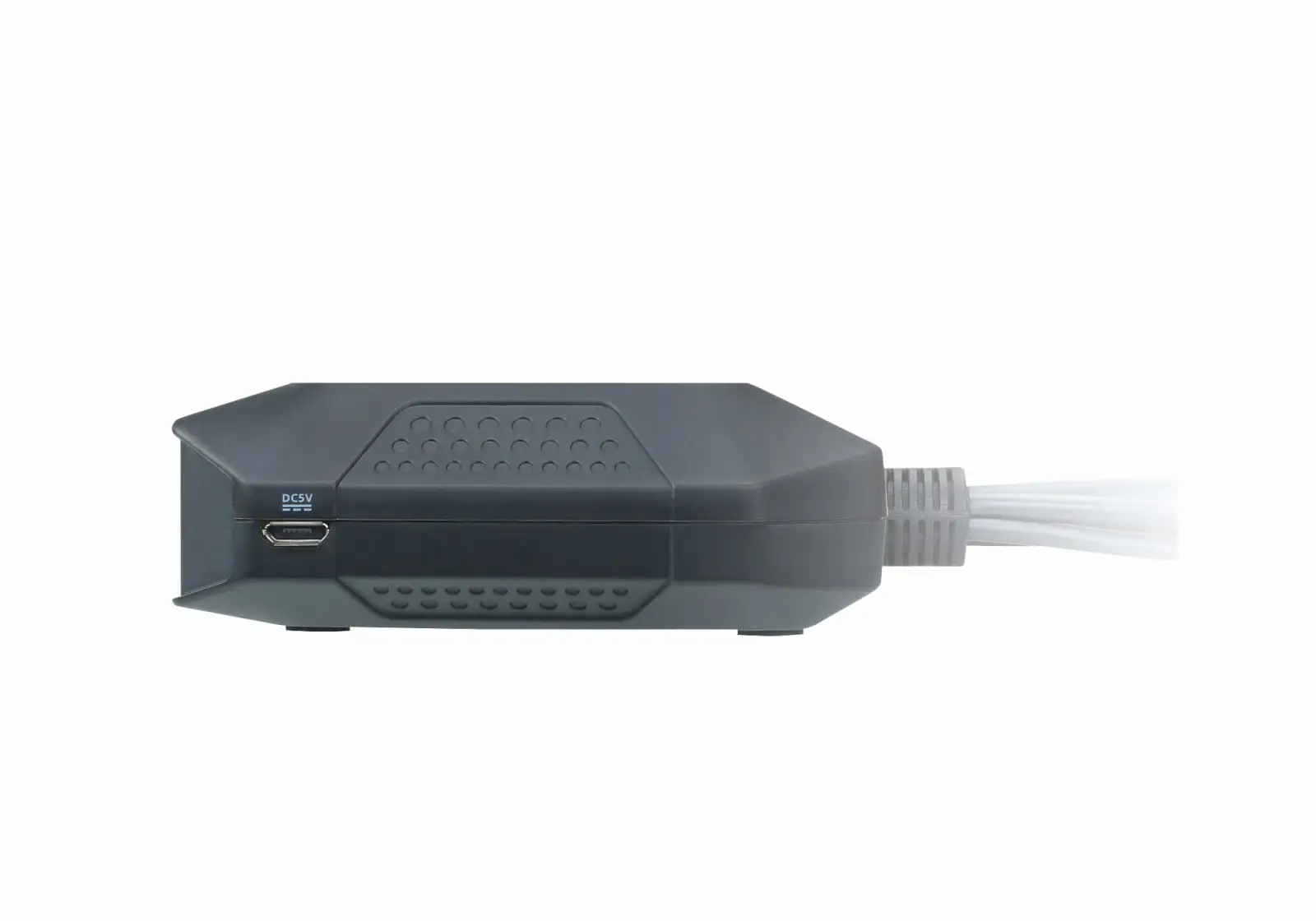

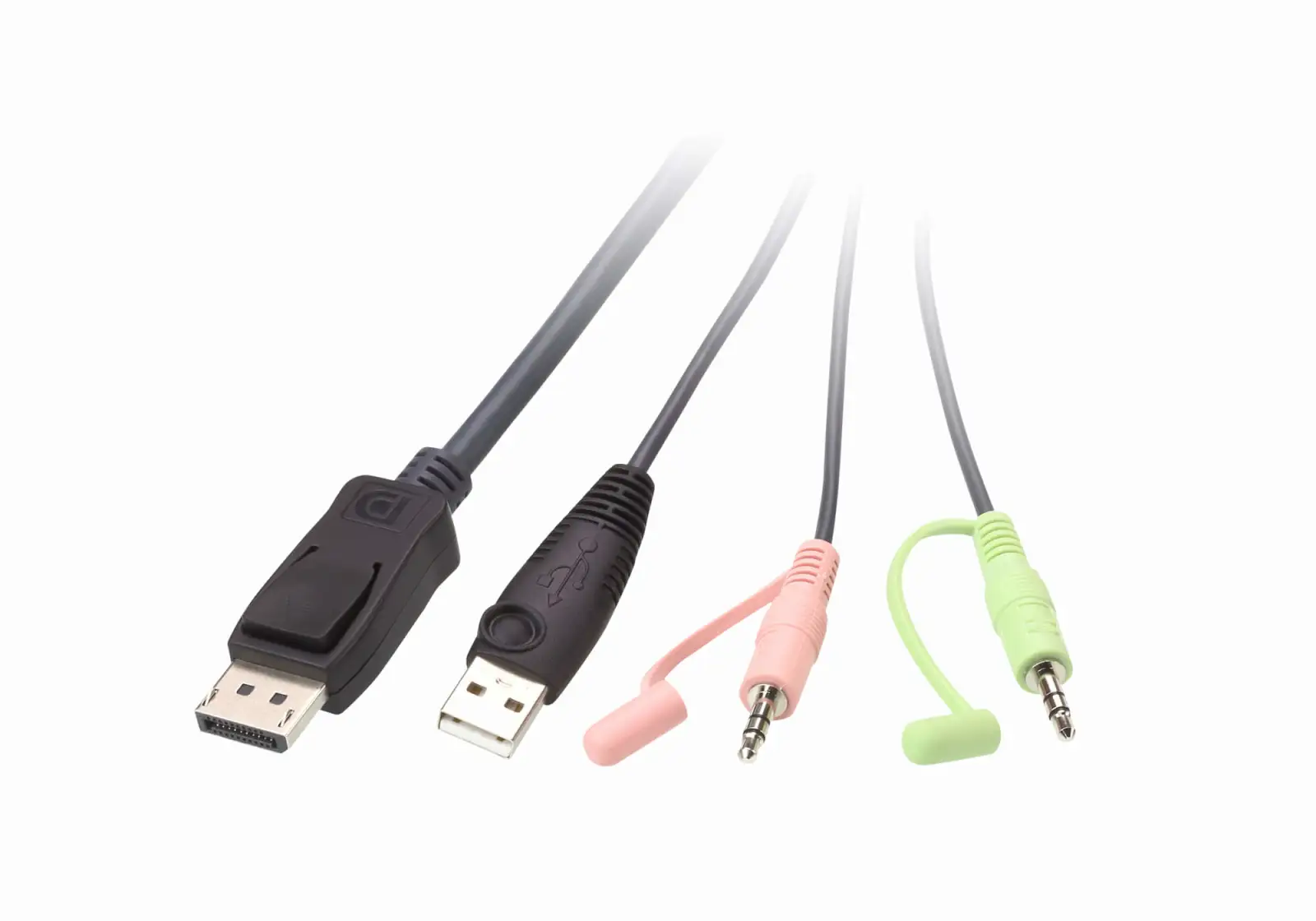

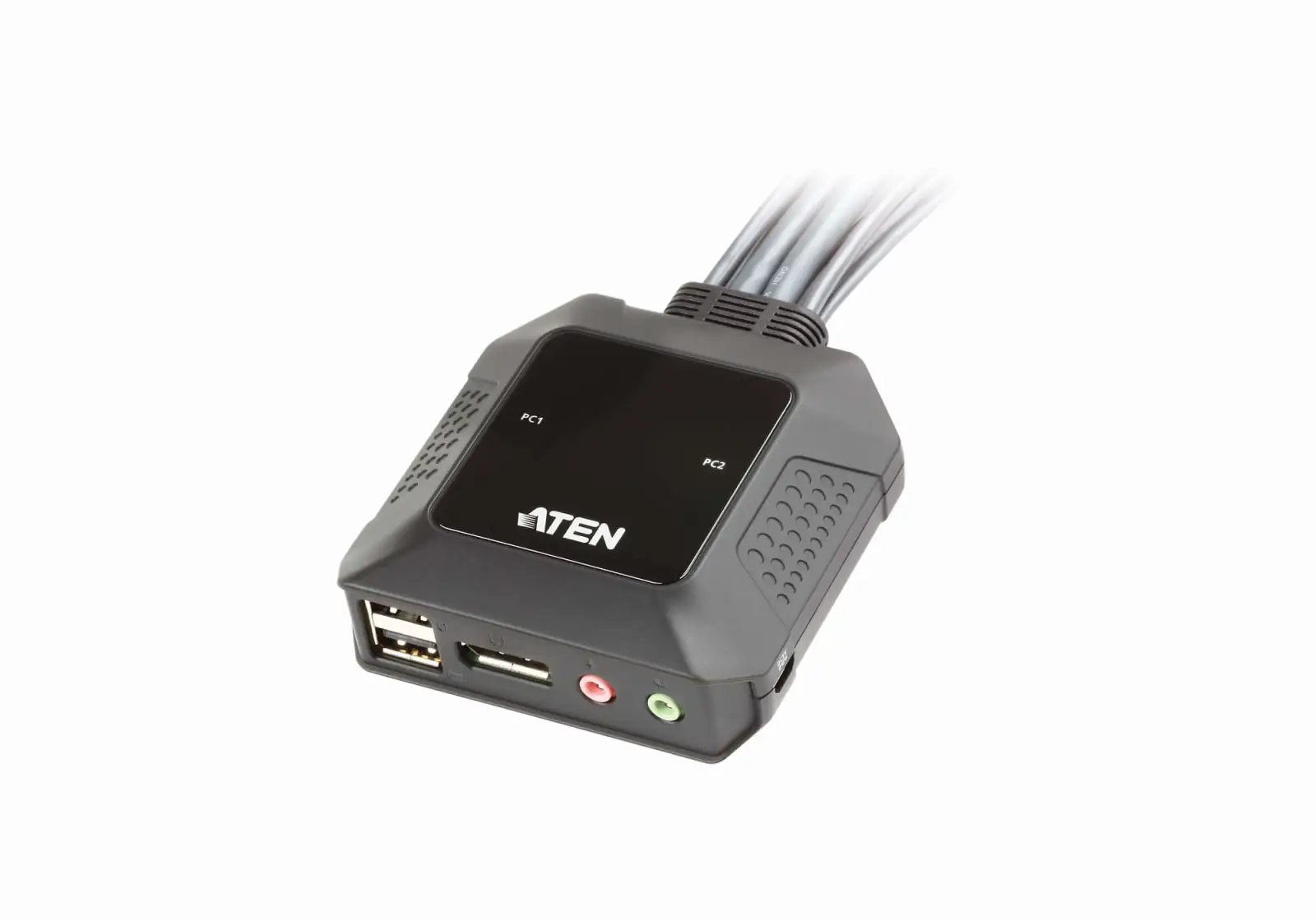

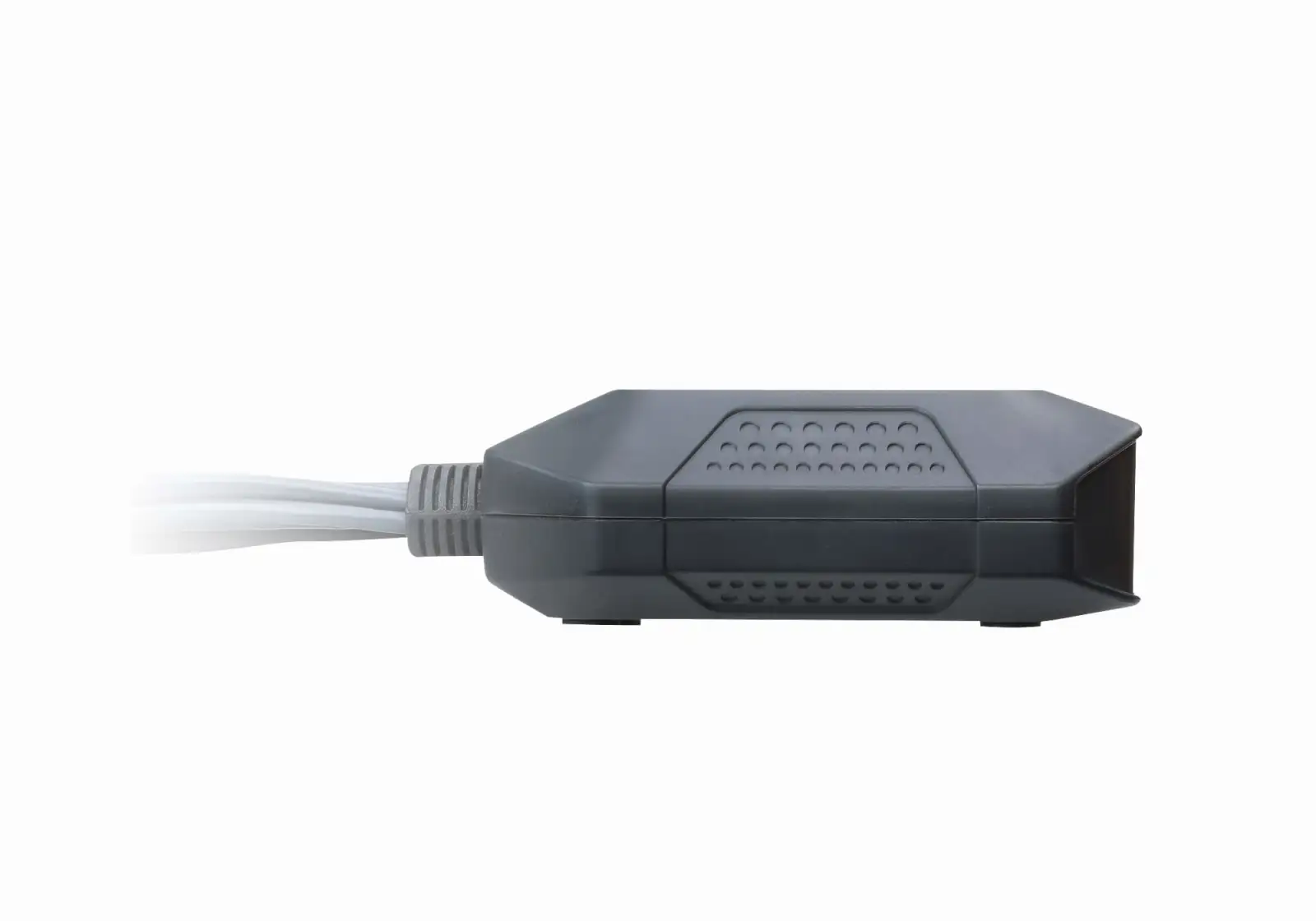

Tuotekuvat

Ports & interfaces

Number of computers controlled

2

Keyboard port type

USB

Mouse port type

USB

Video port type

DisplayPort

DisplayPorts quantity

1

DisplayPort version

1.1

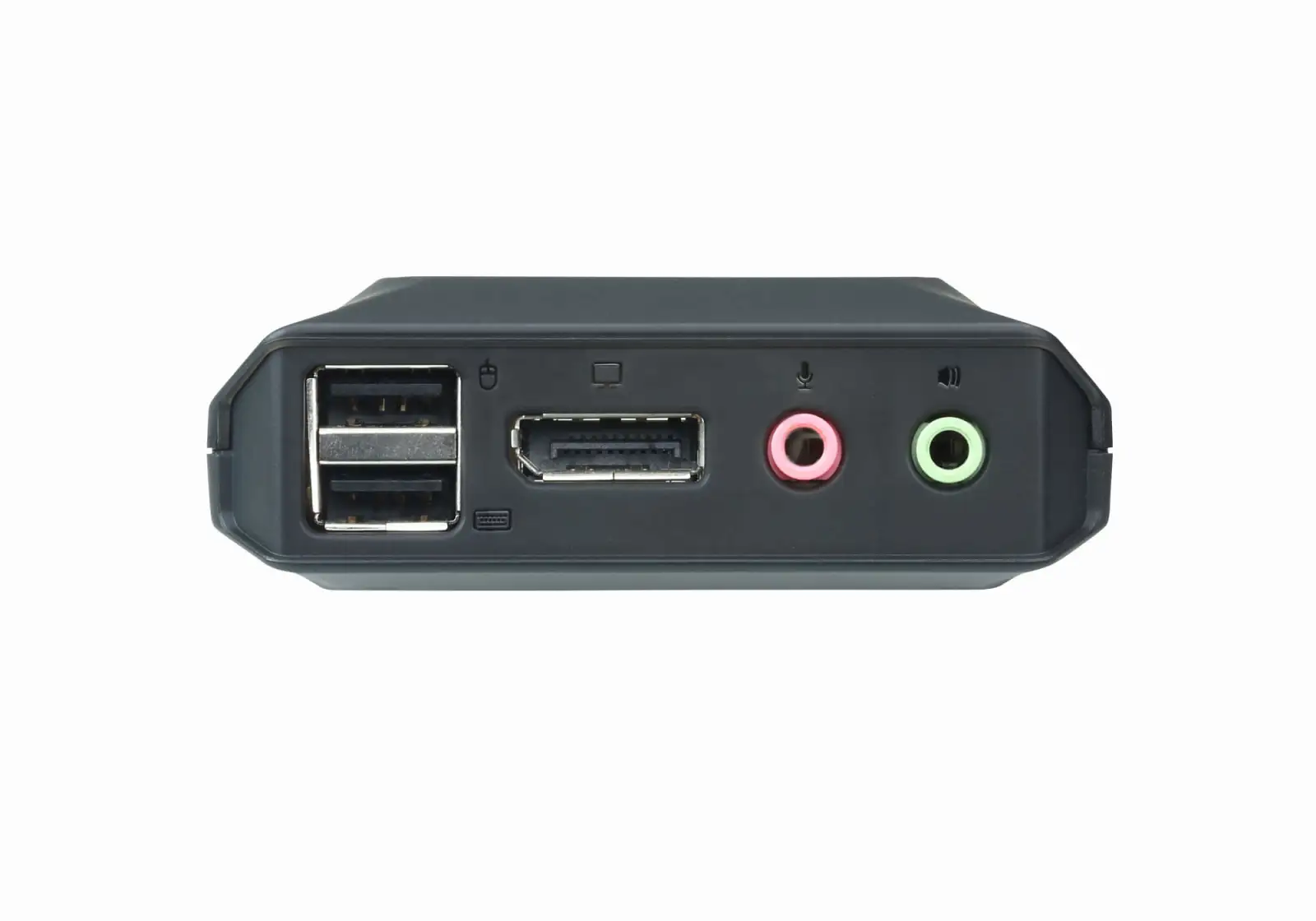

Console ports

3.5mm headphone, 3.5mm mic, DisplayPort, USB A

Console USB ports quantity

2

USB 2.0 ports quantity

2

USB connector type

Micro-USB B, USB Type-A

Audio connections

Kyllä

Headphone outputs

1

Number of microphone inputs

1

Network

Ethernet LAN

Ei

Performance

HD type

4K Ultra HD

Maximum resolution

4096 x 2160 pixels

Video bandwidth

30 Hz

HDCP

Kyllä

Hot-Plug support

Kyllä

Design

Rack mounting

Ei

Product colour

Black

Housing material

Plastic

Wired remote switch

Kyllä

Cable length

1.2 m

Remote switch cable length

1.8 m

LED indicators

Kyllä

Display

Built-in display

Ei

Power

Power source

DC

Input voltage

5 V

Power consumption (typical)

1.38 W

USB powered

Kyllä

System requirements

Windows operating systems supported

Kyllä

Linux operating systems supported

Kyllä

Mac operating systems supported

Kyllä

Sustainability

Sustainability certificates

RoHS

Compliance certificates

RoHS

Operational conditions

Operating temperature (T-T)

0 - 50 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

0 - 80 %

Weight & dimensions

Width

84.2 mm

Depth

83.4 mm

Height

30.4 mm

Weight

360 g

Packaging data

Package width

55 mm

Package depth

155 mm

Package height

225 mm

Package weight

435 g

Packaging content

Manual

Kyllä

Logistics data

Master (outer) case net weight

7200 g

Harmonized System (HS) code

85176200

Master (outer) case width

328 mm

Master (outer) case length

389 mm

Master (outer) case height

330 mm

Master (outer) case gross weight

9330 g

Products per master (outer) case

20 pc(s)
