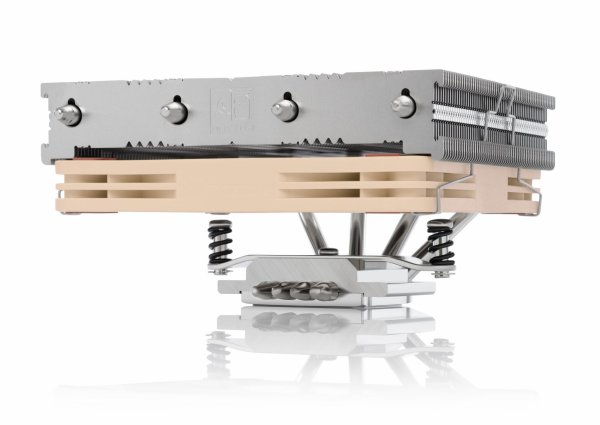

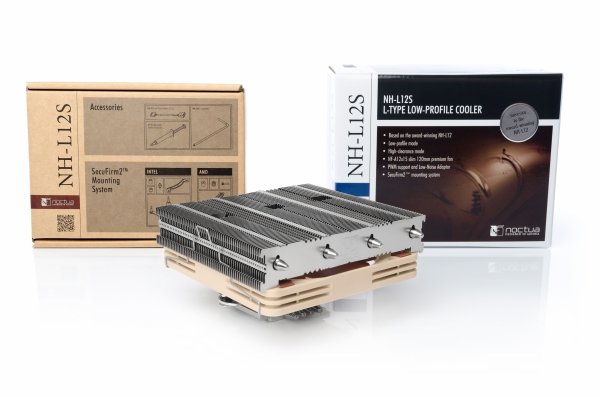

Noctua NH-L12S

Tuote

Valmistaja

Noctua

Tuotenimi

NH-L12S

Valmistajan linkki

http://noctua.at/en/nh-l12s

Tuotekoodit

Valmistajan tuotekoodit

• NH-L12S

GTIN- / EAN-koodit

• 0841501100055
• 9010018000054

Tuotekuvat

Performance

Suitable location

Processor

Type

Cooler

Fan diameter

120 mm

Supported processor sockets

LGA 1851, LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5

Compatible processor series

AMD A, Intel® Celeron®, Intel® Pentium®

Rotational speed (min)

450 RPM

Rotational speed (max)

1850 RPM

Rotational speed with LNA (max)

1400 RPM

Noise level (high speed)

23.9 dB

Noise level with LNA (max)

16.8 dB

Airflow

94.2 m³/h

Airflow with LNA (max)

70.8 m³/h

Maximum air pressure

1.53 mmH2O

Pulse-width modulation (PWM) support

Kyllä

Bearing type

Self-Stabilising Oil-pressure Bearing (SSO)

Mean time between failures (MTBF)

150000 h

Design

Product colour

Beige, Nickel

Material

Aluminium, Copper, Nickel

Number of fans

1 fan(s)

Fins material

Aluminium

Fan connector

4-pin

Power

Power supply

1.56 W

Voltage

12 V

Weight & dimensions

Width

128 mm

Depth

87 mm

Height

146 mm

Weight

520 g

Fan dimensions (W x D x H)

120 x 15 x 120 mm

Heatsink weight

390 g

Package width

142 mm

Package depth

146 mm

Package height

185 mm

Package weight

1178 g

Packaging content

Low-noise adaptor (LNA)

Kyllä

Other features

Heatsink dimensions (W x D x H)

128 x 70 x 146 mm

Logistics data

Harmonized System (HS) code

84733080

Master (outer) case width

308 mm

Master (outer) case length

330 mm

Master (outer) case height

400 mm

Master (outer) case gross weight

10180 g

Products per master (outer) case

8 pc(s)
