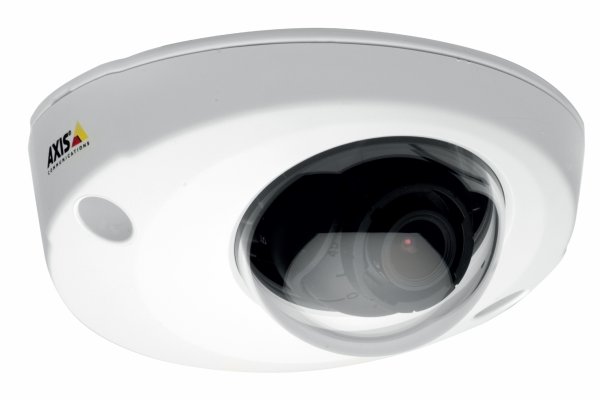

Axis 01073-001

Tuote

Valmistaja

Axis

Tuotenimi

01073-001

Valmistajan linkki

https://www.axis.com/gb/en/products/axis-p3905r-mkii/

Tuotekoodit

Valmistajan tuotekoodit

• 01073-001

GTIN- / EAN-koodit

• 7331021059641

Performance

Type

IP security camera

Placement supported

Outdoor

Connectivity technology

Wired

PTZ control

Kyllä

Wide Dynamic Range (WDR)

Kyllä

Number of languages

11

Languages support

Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Portuguese, Russian

Certification

EN 55032 A, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC 5 A, ICES-003 A, VCCI A, RCM AS/NZS CISPR 32 A, KCC KN32 A, KN35, EN 50121-4, EN 50121-3-2, IEC 62236-4, ECE R10 05 (E), EN 50498, IEC/EN/UL 62368-1, EN 45545, UN ECE R118, NFPA 130d; IEC/EN 60529 IP66/67, NEMA 250 Type 4X, IEC/EN 62262 IK08, IEC 60721-3-5 M3, EN 50155:2017 OT2/ST2 (EN 50155:2007 TX), IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-64, IEC 60068-2-78

Design

Form factor

Dome

Mounting type

Ceiling

Product colour

White

Housing material

Aluminium

International Protection (IP) code

IP67

IK code

IK08

Camera

Minimum illumination

0.06 lx

Angle of rotation

175 °

Lens viewing angle, horizontal

87 °

Lens viewing angle, vertical

49 °

Tilt angle range

15 - 90 °

Pan range

-30 - 30 °

Camera shutter speed

1/32500 - 2 s

Image sensor

Sensor type

CMOS

Optical sensor size

1/2.9 "

Progressive scan

Kyllä

Lens system

Maximum aperture number

2

Fixed focal length

3.6 mm

Video

Maximum resolution

1920 x 1080 pixels

Video compression formats

AVC, H.264, M-JPEG, MPEG4

Supported graphics resolutions

160 x 90, 1920 x 1080 (HD 1080)

Supported video modes

1080p

Frame rate

30 fps

Video streaming

Kyllä

Full HD

Kyllä

Image quality adjustment

Brightness, Contrast, Sharpness

Privacy masking

Kyllä

Bit rate control

Variable Bit Rate (VBR)

Network

Wi-Fi

Ei

Bluetooth

Ei

Networking standards

IEEE 802.3af, IEEE 802.3at

Supported network protocols

IPv4/v6, HTTP, HTTPS , SSL/TLS, QoS l3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH

Storage

Built-in HDD

Ei

Card reader integrated

Kyllä

Compatible memory cards

MicroSD (TransFlash), MicroSDHC, MicroSDXC

Flash memory

256 MB

Internal memory

512 MB

Ports & interfaces

Interface

M12

Security

Password protection

Kyllä

Video motion detection

Kyllä

IP address filtering

Kyllä

Security algorithms

HTTPS

Management features

Web-based management

Kyllä

Power

Power source type

PoE

Power consumption (typical)

2.9 W

Power consumption (max)

3.6 W

Power over Ethernet (PoE)

Kyllä

Operational conditions

Operating temperature (T-T)

-40 - 60 °C

Storage temperature (T-T)

-40 - 65 °C

Operating relative humidity (H-H)

10 - 100 %

Weight & dimensions

Height

49 mm

Diameter

109 mm

Weight

248 g

Packaging content

Number of cameras

1

User guide

Kyllä

Logistics data

Harmonized System (HS) code

85258900
