Asrock B450 Pro4

Tuote

Valmistaja

Asrock

Tuotenimi

B450 Pro4

Valmistajan linkki

https://www.asrock.com/MB/AMD/B450%20Pro4/index.asp#Overview

Tuotekoodit

Valmistajan tuotekoodit

• "B450 PRO4"
• 90-MXB8B0-A0UAYZ
• 90-MXBEE0-A0UAYZ
• B450 PRO4
• B450 PRO4 R2.0
• B450-PRO4
• B450PRO4

GTIN- / EAN-koodit

• 4710483932786
• 4717677336252

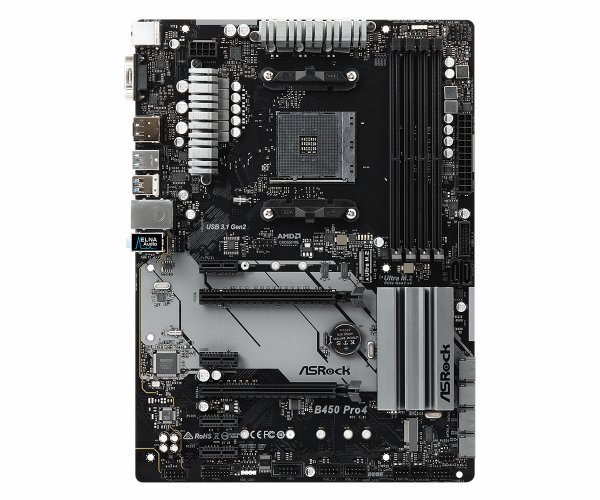

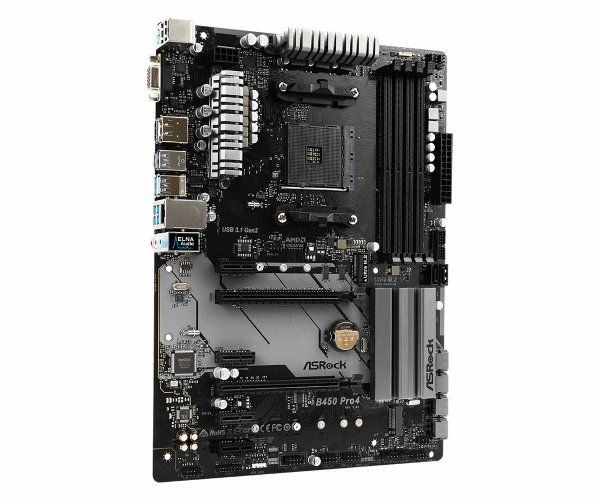

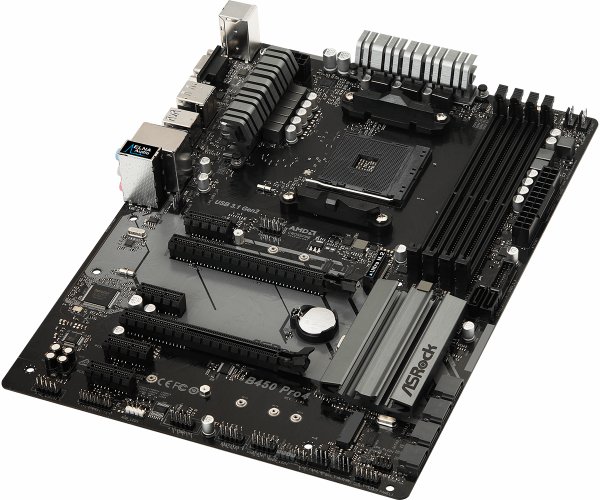

Tuotekuvat

Processor

Processor manufacturer

AMD

Processor socket

Socket AM4

Compatible processor series

AMD Athlon, AMD Ryzen 2000 Series, AMD Ryzen 3000 Series

Maximum number of SMP processors

1

Supported processor sockets

Socket AM4

Memory

Supported memory types

DDR4-SDRAM

Number of memory slots

4

Memory slots type

DIMM

Memory channels

Dual-channel

ECC сompatibility

ECC & Non-ECC

Supported memory clock speeds

2133,2400,2667,2933,3200 MHz

Supported memory clock speed (max)

3200 MHz

Maximum internal memory

128 GB

Supported memory module capacities

4GB, 8GB, 16GB, 32GB

Unbuffered memory

Kyllä

Storage controllers

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

M.2, SATA III

RAID support

Kyllä

RAID levels

0, 1, 10

Graphics

Parallel processing technology support

CrossFireX, Quad-GPU CrossFireX

Maximum resolution

4096 x 2160 pixels

HDCP

Kyllä

DirectX version

12.0

Number of displays supported

3

Internal I/O

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

6

Front panel audio connector

Kyllä

Front panel connector

Kyllä

ATX Power connector (24-pin)

Kyllä

CPU fan connector

Kyllä

Number of chassis fan connectors

3

Peripheral (Molex) power connectors (4-pin)

1

EPS power connector (8-pin)

Kyllä

Number of COM connectors

1

TPM connector

Kyllä

12V power connector

Kyllä

RGB LED pin header

Kyllä

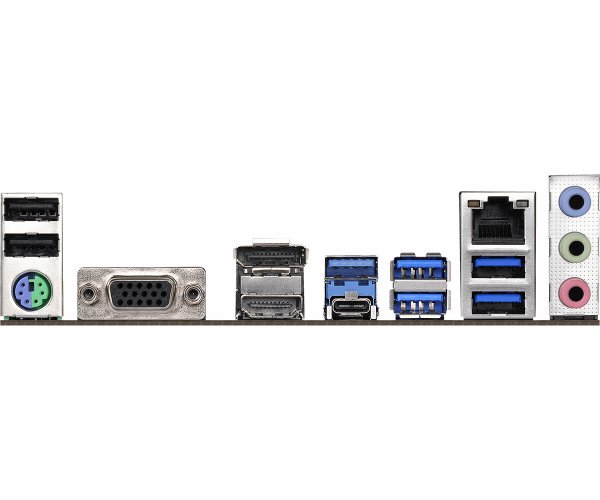

Rear panel I/O ports

USB 2.0 ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

Ethernet LAN (RJ-45) ports

1

PS/2 ports quantity

1

VGA (D-Sub) ports quantity

1

HDMI ports quantity

1

DVI-D ports quantity

0

DisplayPorts quantity

1

DisplayPort version

1.2

Microphone in

Kyllä

Network

Ethernet LAN

Kyllä

Ethernet interface type

Gigabit Ethernet

LAN controller

Realtek RTL8111H

Wake-on-LAN ready

Kyllä

Wi-Fi

Ei

Features

Component for

PC

Motherboard form factor

ATX

Motherboard chipset family

AMD

Motherboard chipset

AMD B450

Audio chip

Realtek ALC892

Audio output channels

7.1 channels

PC health monitoring

CPU, Fan, Temperature, Voltage, Water cooling

Power source type

ATX

Windows operating systems supported

Windows 10 x64, Windows 11 x64

Certification

FCC, CE, ErP/EuP

Expansion slots

PCI Express x1 (Gen 2.x) slots

4

PCI Express x16 (Gen 3.x) slots

2

Number of M.2 (M) slots

2

BIOS

BIOS type

UEFI AMI

BIOS memory size

128 Mbit

ACPI version

5.1

Plug and Play

Kyllä

System Management BIOS (SMBIOS) version

2.3

Logistics data

Harmonized System (HS) code

84733020

Weight & dimensions

Width

305 mm

Depth

224 mm

Packaging content

Cables included

SATA

Drivers included

Kyllä

Bundled software

ASRock A-Tuning, ASRock Polychrome RGB, ASRock XFast LAN, ASRock Full HD UEFI, ASRock Instant Flash, ASRock Easy RAID Installer

Other features

Quick installation guide

Kyllä
