Gigabyte Z390 M Gaming

Tuote

Valmistaja

Gigabyte

Tuotenimi

Z390 M Gaming

Julkaisupäivä

08.10.2018

Valmistajan linkki

https://www.gigabyte.com/Motherboard/Z390-M-GAMING-rev-10#kf

Tuotekoodit

Valmistajan tuotekoodit

• GA-Z390 M GAMING
• Z390-M-GAMING
• Z390MGAMING

GTIN- / EAN-koodit

• 4719331804428

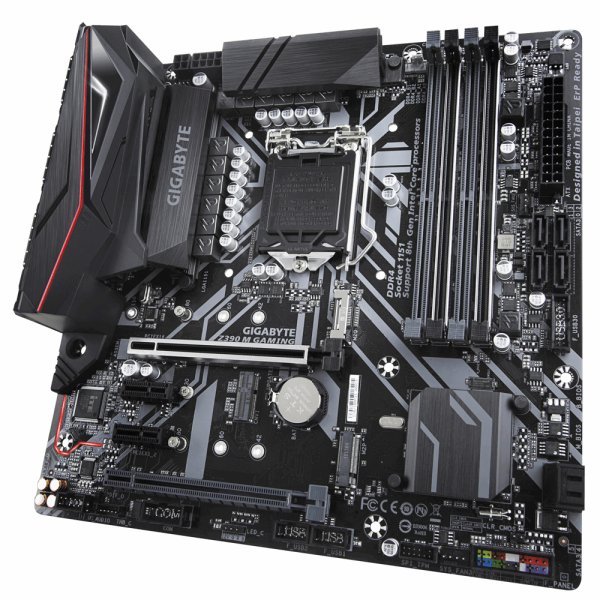

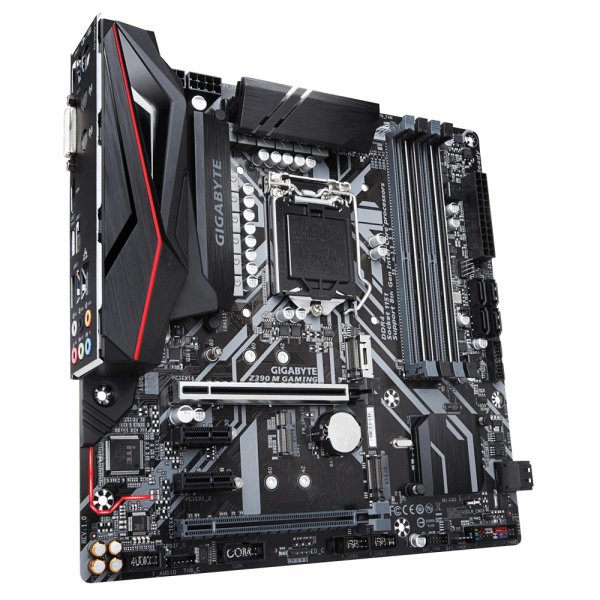

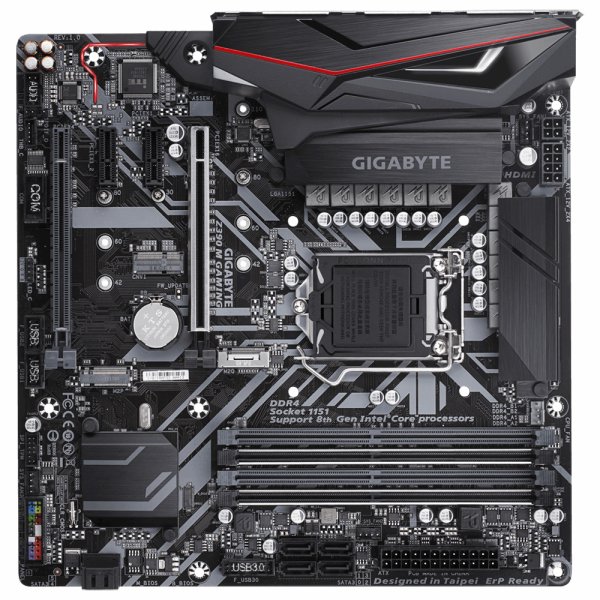

Tuotekuvat

Processor

Processor manufacturer

Intel

Processor socket

LGA 1151 (Socket H4)

Compatible processor series

Intel® Celeron®, Intel® Core™ i3, Intel Core i5, Intel Core i7, Intel® Pentium®

Memory

Supported memory types

DDR4-SDRAM

Number of memory slots

4

Memory slots type

DIMM

Memory channels

Dual-channel

ECC

Kyllä

Non-ECC

Kyllä

Supported memory clock speeds

2133,2400,2666 MHz

Maximum internal memory

64 GB

Unbuffered memory

Kyllä

Storage controllers

RAID levels

0,1,5,10

Graphics

Parallel processing technology support

2-Way CrossFireX,Quad-GPU CrossFireX

On-board graphics card

Kyllä

Graphics card

HD Graphics

Maximum resolution

4096 x 2160 pixels

HDCP

Kyllä

Discrete graphics support

Kyllä

Internal I/O

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

Number of SATA III connectors

6

S/PDIF out connector

Kyllä

Front panel audio connector

Kyllä

Front panel connector

Kyllä

ATX Power connector (24-pin)

Kyllä

CPU fan connector

Kyllä

Number of chassis fan connectors

3

Peripheral (Molex) power connectors (4-pin)

1

EPS power connector (8-pin)

Kyllä

TPM connector

Kyllä

Serial port headers

1

Thunderbolt headers

1

RGB LED pin header

Kyllä

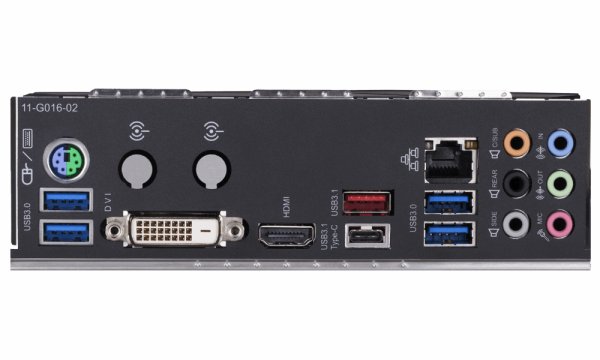

Rear panel I/O ports

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

Ethernet LAN (RJ-45) ports

1

PS/2 ports quantity

1

HDMI ports quantity

1

HDMI version

1.4

DVI-D ports quantity

1

S/PDIF out port

Kyllä

Network

Ethernet LAN

Kyllä

Ethernet interface type

Gigabit Ethernet

Features

Component for

Mini PC

Motherboard form factor

Micro ATX

Motherboard chipset family

Intel

Motherboard chipset

Intel Z390

Audio chip

Realtek ALC892

Audio output channels

7.1 channels

PC health monitoring

FAN,Temperature,Voltage

Windows operating systems supported

Windows 10 Education x64,Windows 10 Enterprise x64,Windows 10 Home x64,Windows 10 Pro x64

Expansion slots

PCI Express x1 (Gen 3.x) slots

2

PCI Express x16 slots

1

Number of M.2 (M) slots

2

BIOS

BIOS type

UEFI AMI

ACPI version

5.0

Clear CMOS jumper

Kyllä

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

Processor special features

Trusted Platform Module (TPM)

Kyllä

Weight & dimensions

Width

244 mm

Depth

244 mm

Packaging content

Bundled software

Norton Internet Security, cFosSpeed

Other features

DualBIOS

Kyllä
