LevelOne FCS-5096

Tuote

Valmistaja

LevelOne

Tuotenimi

FCS-5096

Valmistajan linkki

http://global.level1.com/Camera/FCS-5096/p-4112.htm

Tuotekoodit

Valmistajan tuotekoodit

• FCS-5096

GTIN- / EAN-koodit

• 4015867205334

Tuotekuvat

Performance

Type

IP security camera

Placement supported

Indoor & outdoor

Connectivity technology

Wired

PTZ control

Kyllä

Wide Dynamic Range (WDR)

Kyllä

Day/night mode

Kyllä

Infrared (IR) cut-off filter

Kyllä

Alarm input/output

Kyllä

Certification

CE/FCC

Design

Form factor

Bullet

Mounting type

Ceiling/wall

Product colour

White

LED indicators

Power

Protection features

Dust resistant, Water resistant

International Protection (IP) code

IP67

IK code

IK10

Country of origin

China

Camera

Minimum illumination

0.005 lx

Lens viewing angle, horizontal

105 °

Lens viewing angle, vertical

56 °

Lens viewing angle, diagonal

126 °

White balance

Auto

Camera shutter speed

1/3 - 1/100000 s

Image sensor

Sensor type

CMOS

Optical sensor size

1/2.8 "

Progressive scan

Kyllä

Lens system

Number of lenses

1

Zoom capability

Kyllä

Optical zoom

4.3 x

Focal length range

2.8 - 12 mm

Night vision

Night vision

Kyllä

Night vision distance

50 m

LED type

IR

Video

Maximum resolution

1920 x 1080 pixels

Total megapixels

2 MP

Video formats supported

AVI

Video compression formats

H.264, H.265, M-JPEG

Supported graphics resolutions

320 x 240, 352 x 288, 640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)

Supported video modes

240p, 360p, 480p, 720p, 960p, 1080p

Frame rate

60 fps

3D NR (Noise Reduction)

Kyllä

Full HD

Kyllä

Image quality adjustment

Brightness, Contrast, Saturation, Sharpness

Privacy masking

Kyllä

Back Light Compensation (BLC)

Kyllä

Audio

Audio input channels

1.0 channels

Audio output channels

1.0 channels

Audio codecs

G722.1/G711ulaw/G711alaw/G726/MP2L2/PCM

Network

Ethernet LAN

Kyllä

Wi-Fi

Ei

Bluetooth

Ei

Ethernet interface type

Fast Ethernet

Networking standards

IEEE 802.3at

Supported network protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP,IGMP, 802.1X, QoS, IPv6, Bonjour

Cabling technology

10/100Base-T(X)

Number of users

32 user(s)

Quality of Service (QoS) support

Kyllä

Storage

Built-in HDD

Ei

Card reader integrated

Kyllä

Compatible memory cards

MicroSD (TransFlash), SDHC, SDXC

Maximum memory card size

128 GB

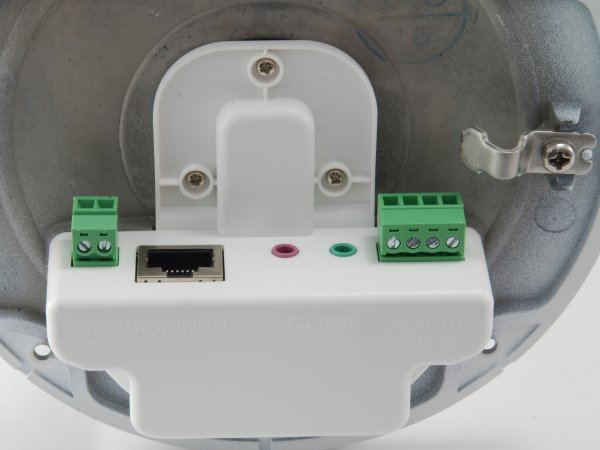

Ports & interfaces

Ethernet LAN (RJ-45) ports

1

Composite video out

1

Terminal block port

Kyllä

DC-in jack

Kyllä

Interface

RJ-45

Security

Password protection

Kyllä

Video motion detection

Kyllä

Intelligent Video Surveillance (IVS) system features

Face detection

Anti-flicker

Kyllä

Heartbeat

Kyllä

Mirror

Kyllä

Digital watermark

Kyllä

Management features

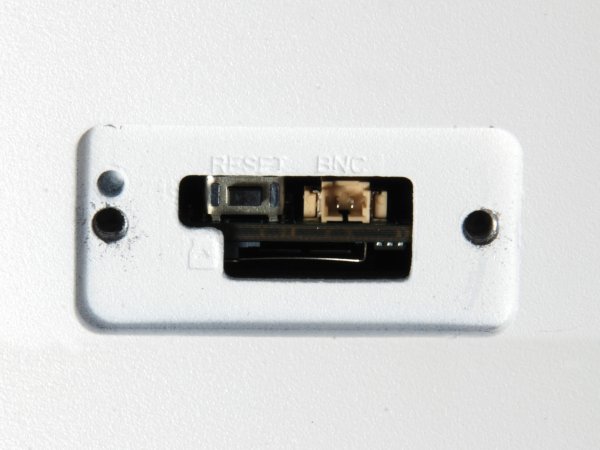

Reset button

Kyllä

Behavior analysis

Intrusion detection, Line crossing detection

Power

Power source type

DC, PoE

Power consumption (max)

15.5 W

Power consumption (Power over Ethernet (PoE))

17.5 W

DC output voltage

12

DC output current

1.3 A

Operational conditions

Operating temperature (T-T)

-30 - 60 °C

Operating relative humidity (H-H)

0 - 95 %

Weight & dimensions

Width

332.73 mm

Depth

332.73 mm

Height

144.13 mm

Weight

1893 g

Packaging data

Package width

185 mm

Package depth

200 mm

Package height

385 mm

Package weight

2280 g

Package type

Box

Packaging content

Number of cameras

1

Screws included

Kyllä

Resource CD

Kyllä

Other features

Browser supported

IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+

Logistics data

Harmonized System (HS) code

85258900

Master (outer) case width

570 mm

Master (outer) case length

410 mm

Master (outer) case height

595 mm

Master (outer) case gross weight

15525 g

Products per master (outer) case

9 pc(s)
