Akyga AK-B1-600

Tuote

Valmistaja

Akyga

Tuotenimi

AK-B1-600

Valmistajan linkki

http://www.akyga.com/products/7-power-supply-atx-ak-b1-600-600w.

Tuotekoodit

Valmistajan tuotekoodit

• AK-B1-600

GTIN- / EAN-koodit

• 5901720130358

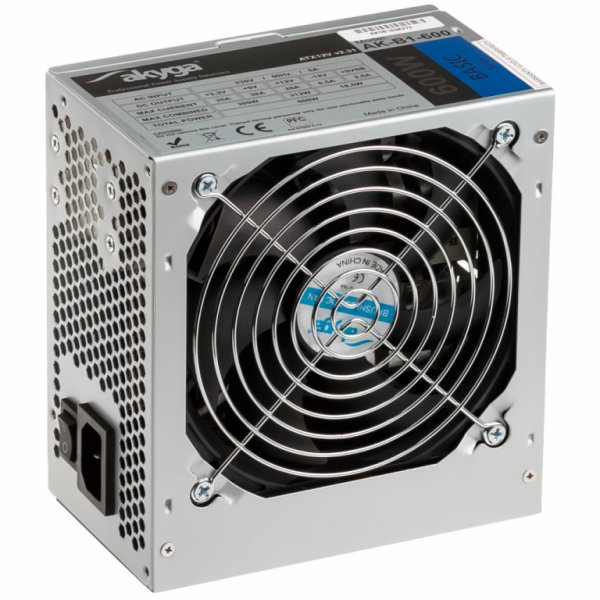

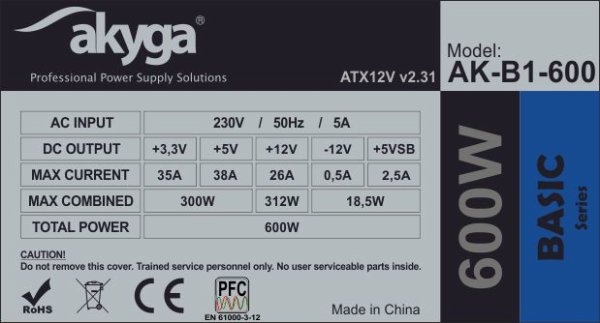

Tuotekuvat

Power

Total power

600 W

AC input voltage

230 V

AC input frequency

50 Hz

Input current

5 A

Power Factor Correction (PFC) type

Passive

Combined power (+3.3V)

300 W

Combined power (+12V)

312 W

Combined power (+5V)

300 W

Combined power (-12V)

18.5 W

Combined power (+5Vsb)

18.5 W

Max output current (+3.3V)

35 A

Max output current (+12V)

36 A

Max output current (+5V)

38 A

Max output current (-12V)

0.5 A

Max output current (+5Vsb)

2.5 A

Efficiency

70 %

Power protection features

Over current, Over power, Over voltage, Short circuit, Under voltage

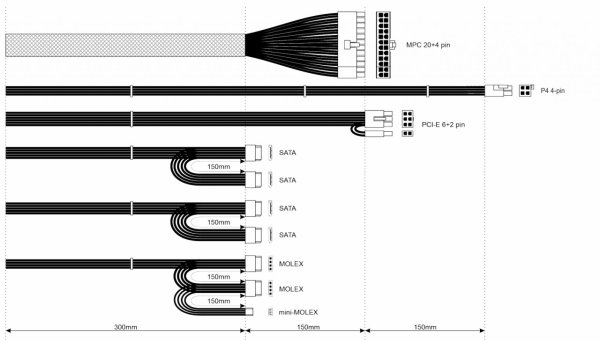

Ports & interfaces

Motherboard power connector

20+4 pin ATX

Number of SATA power connectors

4

Peripheral (Molex) power connectors (4-pin)

2

EPS power connector (8-pin)

Ei

PCI Express power connectors (6+2 pin)

1

Cabling type

Non-Modular

Performance

Purpose

PC

Power supply unit (PSU) form factor

ATX

ATX version

2.31

Mean time between failures (MTBF)

100000 h

Design

Product colour

Grey

Fan diameter

120 mm

Number of fans

1 fan(s)

Operational conditions

Operating temperature (T-T)

5 - 50 °C

Certificates

Compliance certificates

RoHS

Certification

REACH, CE, RoHS

Weight & dimensions

Width

150 mm

Depth

140 mm

Height

87 mm

Weight

1120 g

Packaging data

Package width

160 mm

Package depth

220 mm

Package height

95 mm

Package weight

1190 g

Package type

Box
