LevelOne OAN-4058

Tuote

Valmistaja

LevelOne

Tuotenimi

OAN-4058

Valmistajan linkki

http://uk.level1.com/Antennas/OAN-4058/p-4107.htm

Tuotekoodit

Valmistajan tuotekoodit

• OAN-4058

GTIN- / EAN-koodit

• 4015867205020

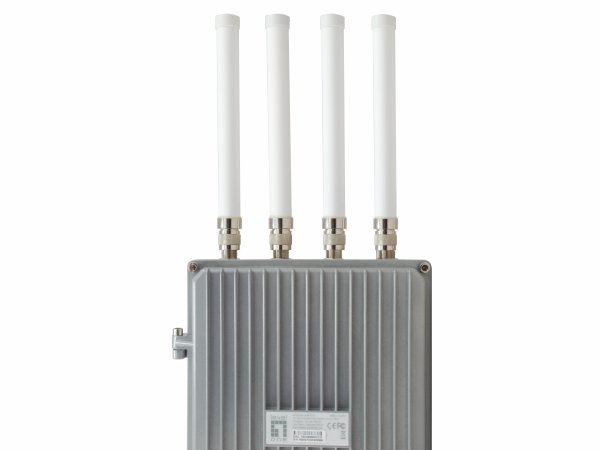

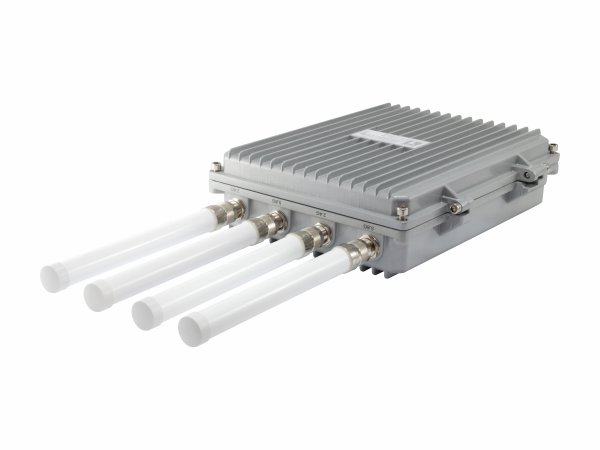

Tuotekuvat

Performance

Antenna gain level (max)

8 dBi

Frequency band

2.4 - 5 GHz

Networking standards

IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n

Gain

5 / 8 dBi

Antenna gain (2.4 GHz)

5 dBi

Antenna gain (5 GHz)

8 dBi

Impedance

50 Ω

Horizontal beam width (2.4 GHz)

360 °

Vertical beam width (2.4 GHz)

51.7 °

Horizontal beam width (5 GHz)

360 °

Vertical beam width (5 GHz)

27.7 °

Features

Antenna type

Omni-directional antenna

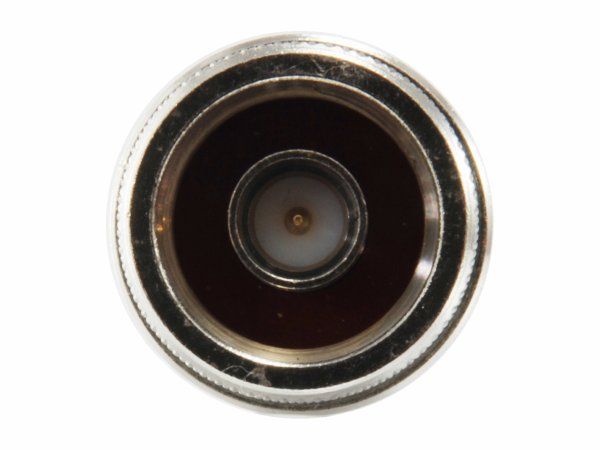

Antenna connector type

N-type

Connector gender

Female

Polarization

Vertical polarization

Voltage Standing Wave Ratio (VSWR)

2

Product colour

White

Operational conditions

Operating temperature (T-T)

-30 - 60 °C

Operating relative humidity (H-H)

0 - 95 %

Weight & dimensions

Width

22 mm

Depth

203 mm

Height

22 mm

Weight

860 g

Packaging data

Package width

70 mm

Package depth

60 mm

Package height

265 mm

Package weight

192 g

Package type

Blister

Packaging content

Quantity per pack

1 pc(s)

Logistics data

Harmonized System (HS) code

85177100

Country of origin

Taiwan

Master (outer) case width

480 mm

Master (outer) case length

560 mm

Master (outer) case height

290 mm

Master (outer) case gross weight

11000 g

Master (outer) case volume

50 cm³

Products per master (outer) case

50 pc(s)
