Edimax OAP1300

Tuote

Valmistaja

Edimax

Tuotenimi

OAP1300

Valmistajan linkki

https://www.edimax.com/edimax/merchandise/merchandise_detail/d..

Tuotekoodit

Valmistajan tuotekoodit

• OAP1300

Tuotekuvat

Features

2.4 GHz

Kyllä

5 GHz

Kyllä

Maximum data transfer rate

1266 Mbit/s

Ethernet LAN data rates

10,100,1000 Mbit/s

Frequency band

2.412-2.462; 2.412-2472; 2.412-2.484; 5.18-5.24; 5.26-5.32; 5.745-5.825; 5.5-5.7 GHz

Networking standards

IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az

Fit AP mode features

Wireless distribution system (WDS)

Wi-Fi Multimedia (WMM)/(WME)

Kyllä

Fast roaming

Kyllä

VLAN support

Kyllä

Quality of Service (QoS) support

Kyllä

Transmitting power

23 dBmW

Receiver sensitivity

-93 dBm

Security

Security algorithms

802.1x RADIUS, EAP, SNMP, SNMPv3, SSH, WEP, WPA, WPA2

MAC address filtering

Kyllä

Number of SSID supported

32

Auto Wireless Distribution System (WDS)

Kyllä

VPN support

IPsec, L2TP, PPTP

Ports & interfaces

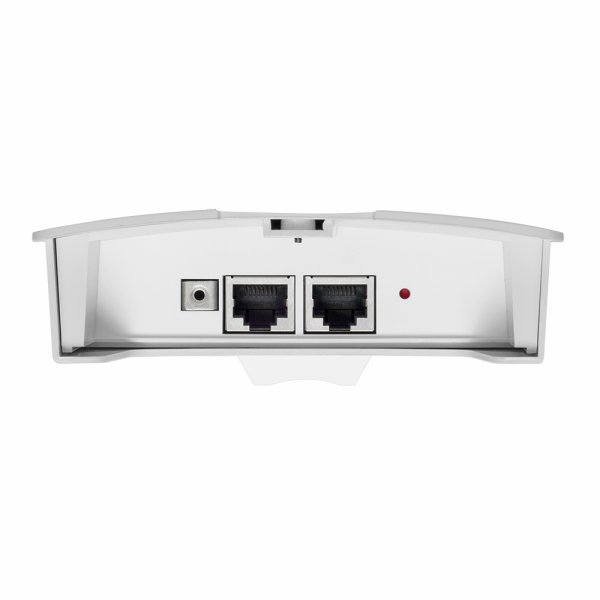

Ethernet LAN (RJ-45) ports

2

USB 2.0 ports quantity

0

Power

Power over Ethernet (PoE)

Kyllä

Power consumption (max)

15 W

Design

Placement

Pole, Wall

Product colour

White

Reset button

Kyllä

LED indicators

LAN, Power, Status

Internal

Ei

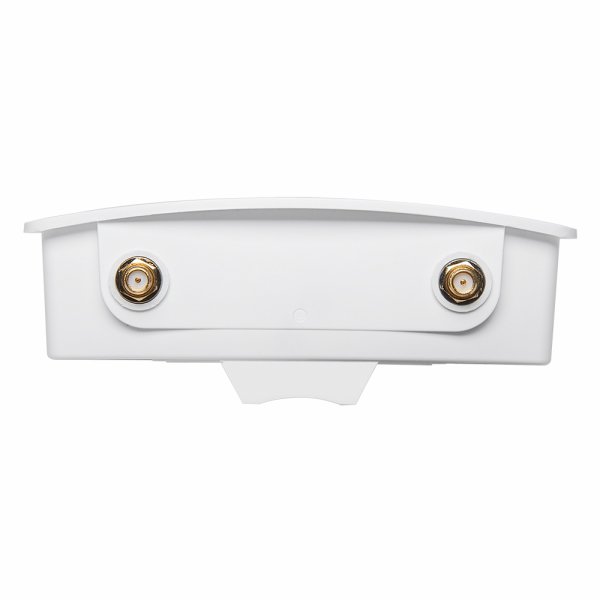

Antenna

Antennas quantity

2

Antenna gain level (max)

4.41 dBi

Antenna connector type

N-type

Certificates

Certification

CE / FCC

Weight & dimensions

Width

120.9 mm

Depth

271.8 mm

Height

35 mm

Weight

592 g

Packaging data

CD manual

Kyllä

Packaging content

Cables included

LAN (RJ-45)

Mounting kit

Kyllä

Operational conditions

Operating relative humidity (H-H)

0 - 90 %

Operating temperature (T-T)

-40 - 60 °C
