Noctua NH-U12A

Tuote

Valmistaja

Noctua

Tuotenimi

NH-U12A

Julkaisupäivä

13.04.2019

Valmistajan linkki

https://noctua.at/en/nh-u12a

Tuotekoodit

Valmistajan tuotekoodit

• 841501100161
• NH-U12A

GTIN- / EAN-koodit

• 9010018000160

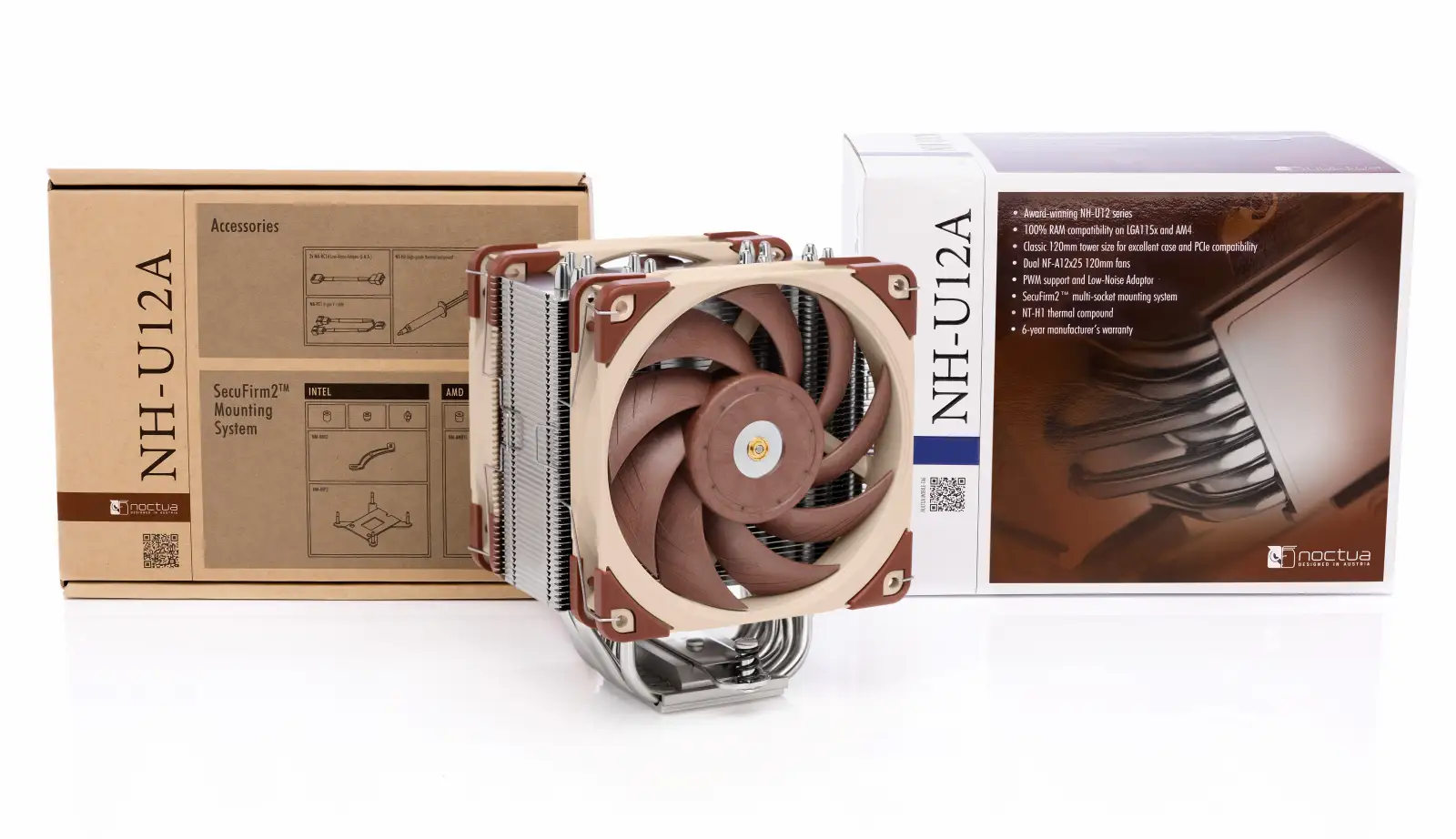

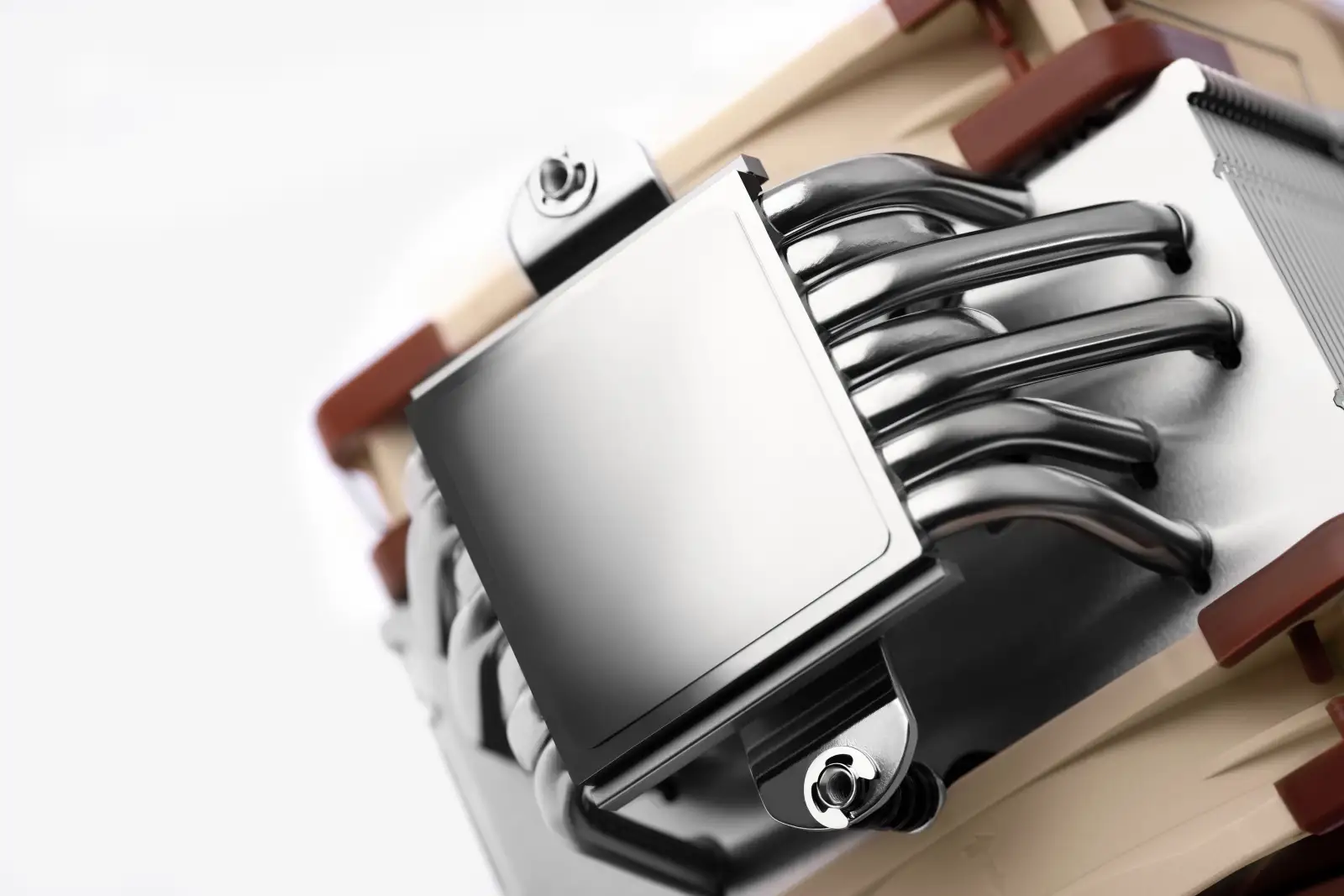

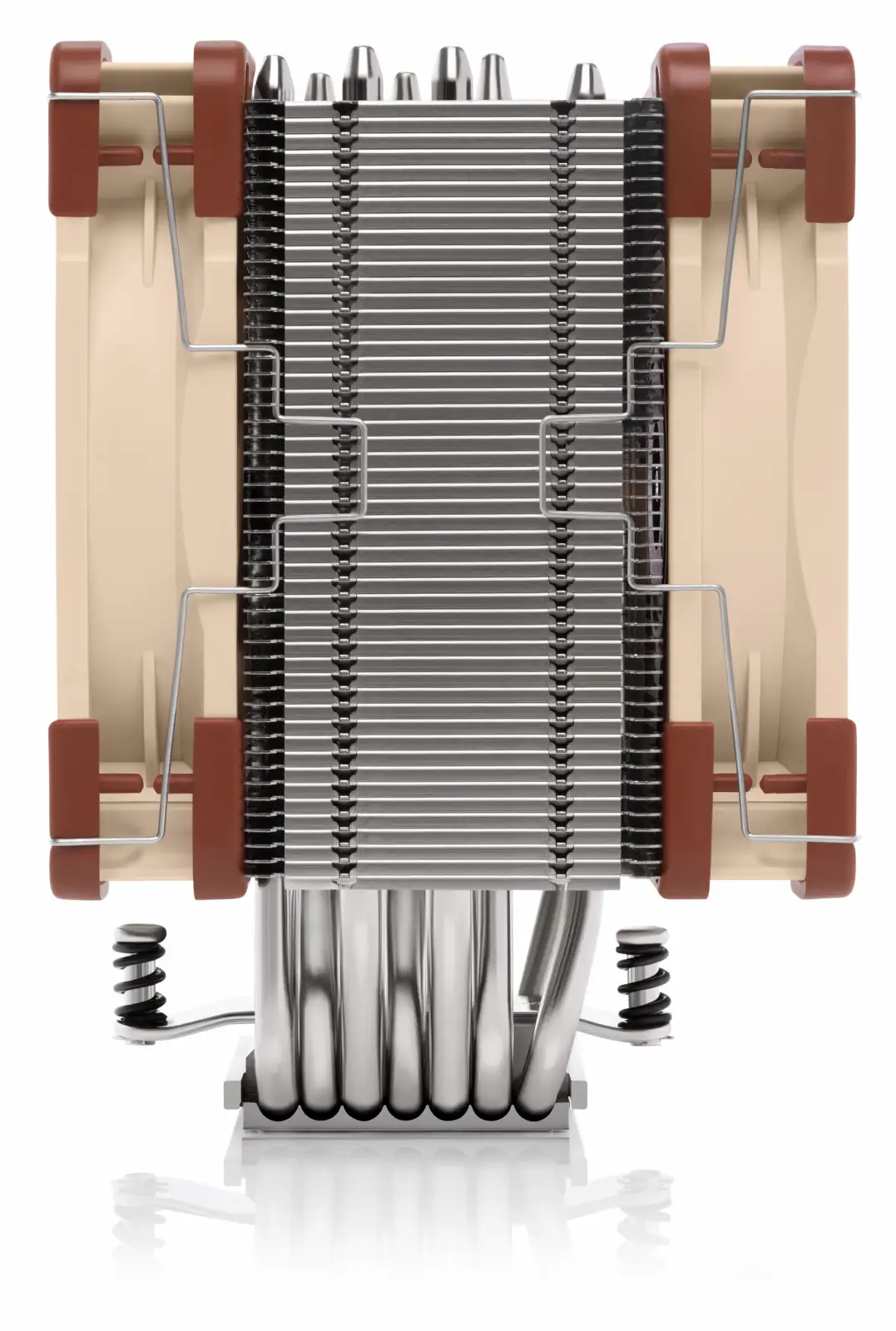

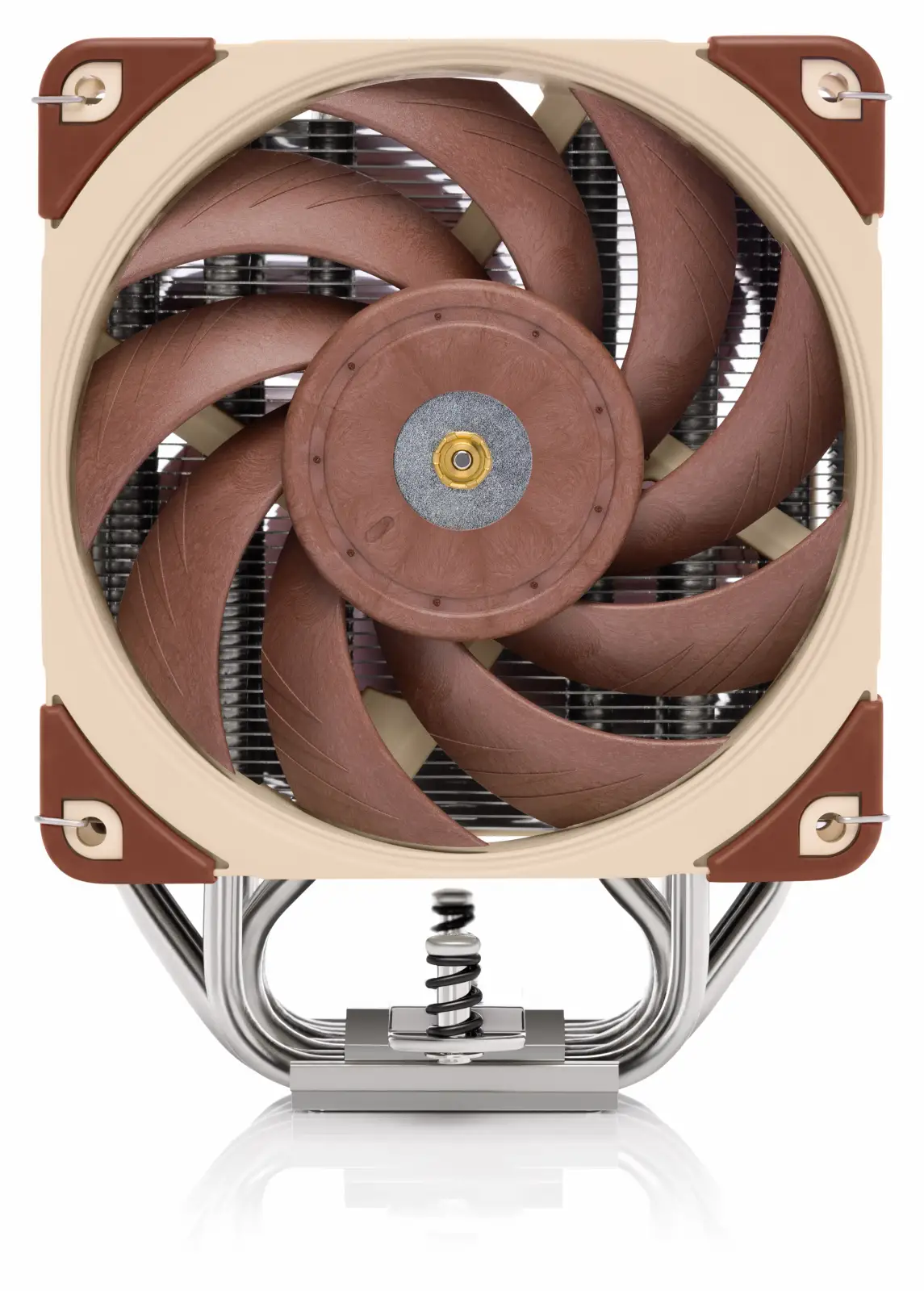

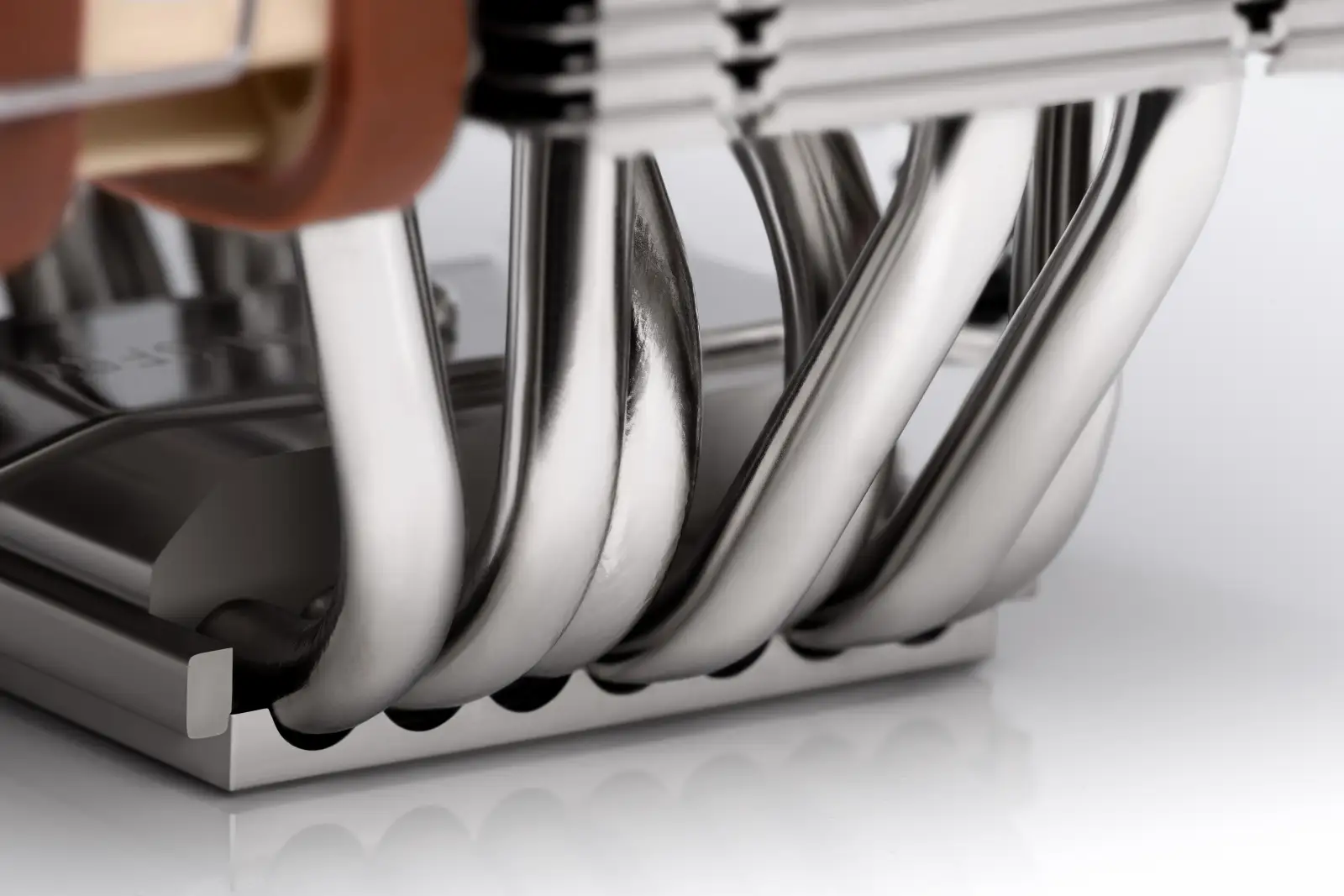

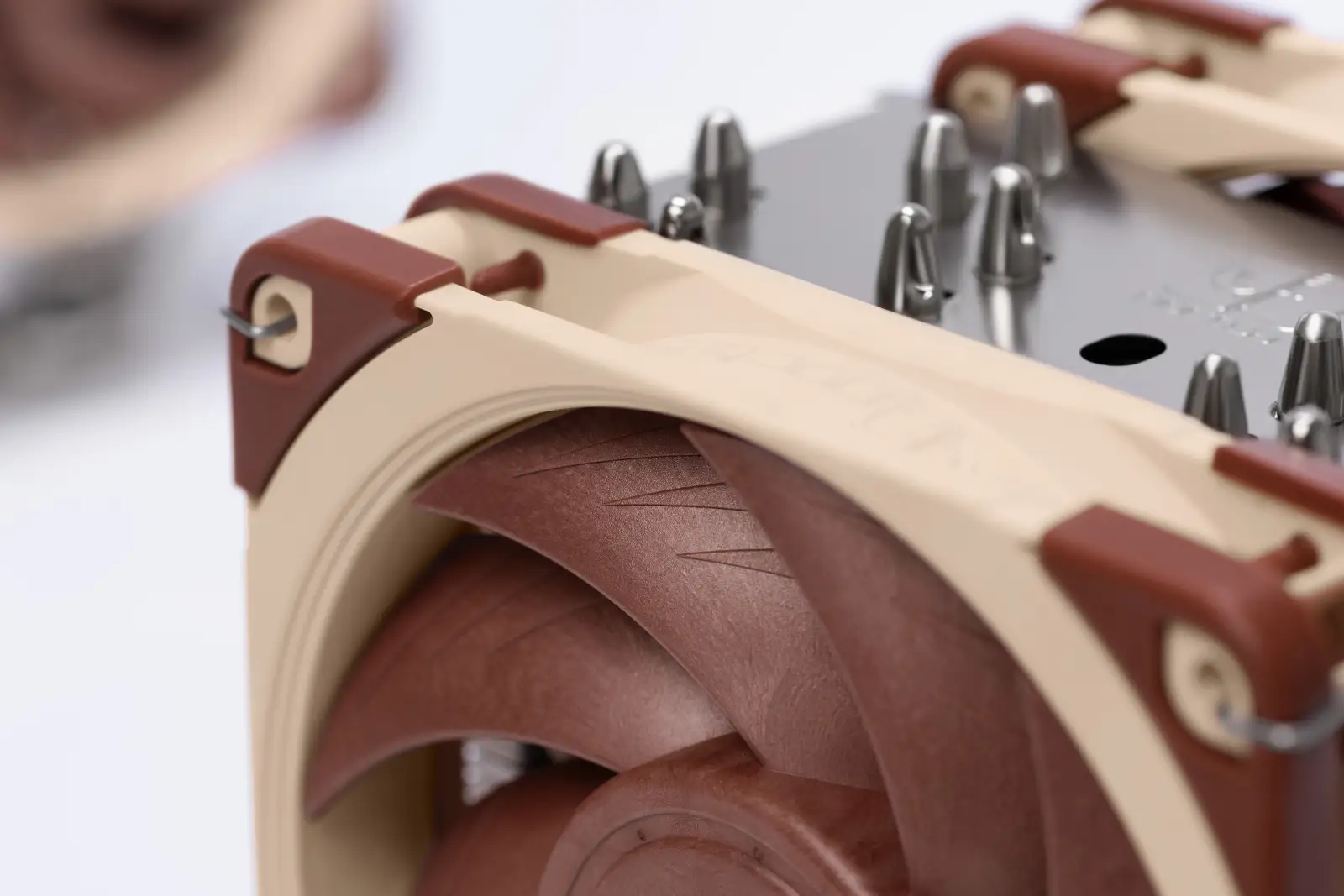

Tuotekuvat

Performance

Suitable location

Processor

Type

Cooler

Fan diameter

120 mm

Supported processor sockets

LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 2011 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2, Socket FM2+

Compatible processor series

AMD A, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®

Rotational speed (min)

450 RPM

Rotational speed (max)

2000 RPM

Rotational speed with LNA (max)

1700 RPM

Noise level (high speed)

22.6 dB

Noise level with ULNA (max)

18.8 dB

Airflow

102.1 m³/h

Airflow with LNA (max)

84.5 m³/h

Maximum air pressure

2.34 mmH2O

Maximum air pressure with LNA

1.65 mmH2O

Pulse-width modulation (PWM) support

Kyllä

Bearing type

Self-Stabilising Oil-pressure Bearing (SSO)

Design

Product colour

Beige, Red, Stainless steel

Base plate material

Copper

Number of fans

2 fan(s)

Fins material

Aluminium

Fan connector

4-pin

Power

Power supply

1.68 W

Voltage

12 V

Weight & dimensions

Width

125 mm

Depth

112 mm

Height

158 mm

Weight

1220 g

Fan dimensions (W x D x H)

120 x 25 x 120 mm

Heatsink weight

760 g

Package width

177 mm

Package depth

170 mm

Package height

216 mm

Package weight

1860 g

Packaging content

Mounting kit

Kyllä

Low-noise adaptor (LNA)

Kyllä

Other features

Thermal grease

Kyllä

Heatsink dimensions (W x D x H)

125 x 58 x 158 mm

Mean time to failure (MTTF)

150000 h

Logistics data

Master (outer) case width

376 mm

Master (outer) case length

378 mm

Master (outer) case height

475 mm

Master (outer) case gross weight

15980 g

Products per master (outer) case

8 pc(s)
