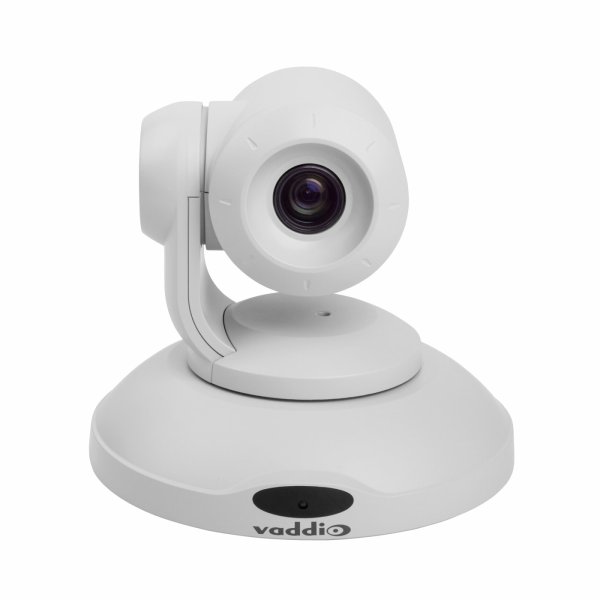

Vaddio ConferenceSHOT AV Bundle - CeilingMIC 1 w/o Speaker

Tuote

Valmistaja

Vaddio

Tuotenimi

ConferenceSHOT AV Bundle – CeilingMIC 1 w/o Speaker

Julkaisupäivä

05.04.2019

Valmistajan linkki

https://www.legrandav.com/products/vaddio/cameras/hd_ptz_camer..

Tuotekoodit

Valmistajan tuotekoodit

• 999-99950-801W

GTIN- / EAN-koodit

• 0840077505509

Tuotekuvat

Performance

Product colour

White

Signal-to-Noise Ratio (SNR)

50 dB

Pan range

-165 - 165 °

Pan speed

90 °/sec

Tilt speed

90 °/sec

Tilt angle range

-30 - 90 °

Video

HD type

Full HD

Supported video modes

480p, 720p, 1080p

Maximum frame rate

60 fps

Video codecs

H.264

Audio

Frequency range

20 - 20000 Hz

Line-out impedance

50 Ω

Output voltage Total Harmonic Distortion (THD)

0.02 %

Noise reduction

Kyllä

Echo cancellation

Kyllä

Automatic gain control

Kyllä

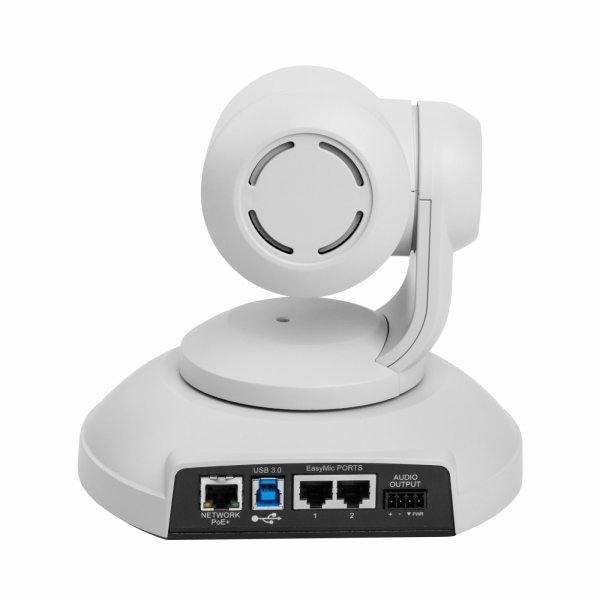

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity

1

Ethernet LAN (RJ-45) ports

2

Power over Ethernet plus (PoE+) ports quantity

1

Line-out

Kyllä

Network

Ethernet LAN

Kyllä

Ethernet LAN data rates

10,100,1000 Mbit/s

Web-based management

Kyllä

Management protocols

Telnet

Camera

Megapixel (approx.)

2.14 MP

Effective sensor resolution

2.14 MP

Sensor type

CMOS

Image sensor size

1/2.8 "

Focal length range (normal mode)

3.8 - 38 mm

Optical zoom (normal mode)

10 x

Optical zoom (super-wide mode)

11 x

Wide end viewing angle (normal mode)

67 °

Tele end viewing angle (normal mode)

7.6 °

Wide end viewing angle (super-wide mode)

74 °

Tele end viewing angle (super-wide mode)

7.6 °

Focus adjustment

Auto/Manual

Remote control interface

IR Wireless

Aperture range (F-F)

1.8 - 3.4

Minimum illumination

100 lx

Aperture number of steps

16

White balance

Auto, Manual, One push

Closest focusing distance (wide)

0.01 m

Closest focusing distance (tele)

1 m

Lens modes

Normal lens mode, Super-wide lens mode

Sync system

Internal

Gain control type

Auto/Manual

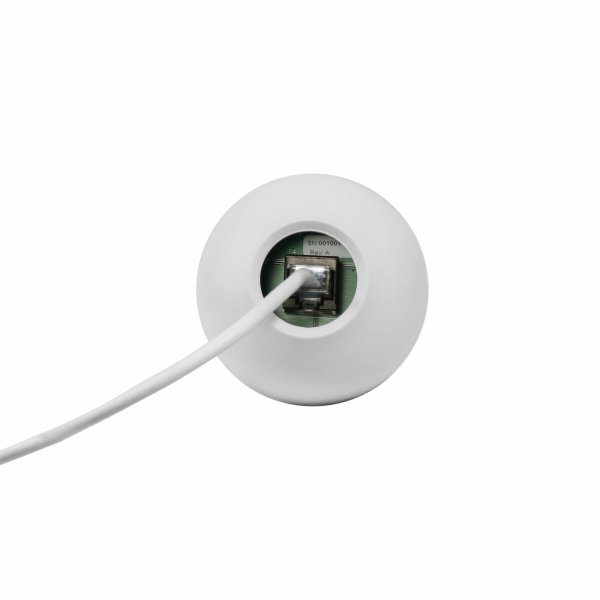

Microphone

Microphone colour

White

Microphone sensitivity

90 dB

Microphone frequency

100 - 16000 Hz

Microphone Total Harmonic Distortion (THD)

0.02 %

Number of microphones

1

Logistics data

Harmonized System (HS) code

85176990

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

20 - 80 %

Storage temperature (T-T)

-5 - 60 °C

Storage relative humidity (H-H)

20 - 80 %

Power

Power over Ethernet (PoE) power per port

25 W

Certificates

Certification

CE Approved, FCC Approved, UL Listed, TAA Compliant

Weight & dimensions

Microphone weight

900 g

Camera dimensions (WxDxH)

155 x 145 x 163 mm

Camera weight

1360 g

Packaging content

Number of microphones included

2

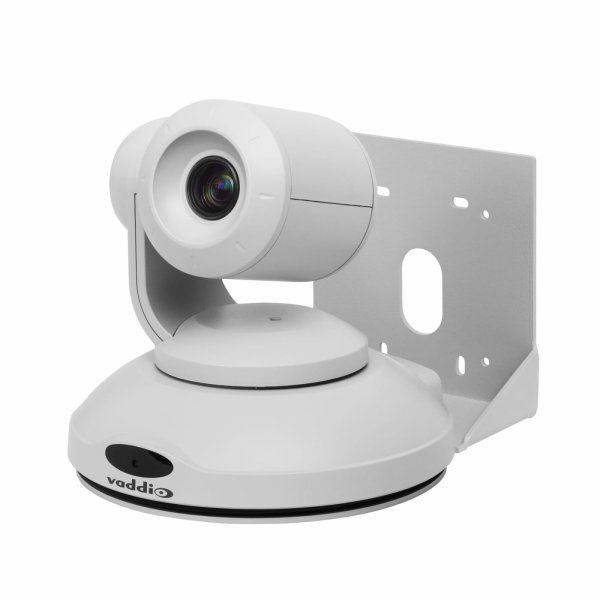

Mounting kit

Kyllä

Speaker included

Kyllä

Remote control included

Kyllä

Camera included

Kyllä

Microphone included

Kyllä
