APC SYA12K16I

Tuote

Valmistaja

APC

Tuotenimi

SYA12K16I

Valmistajan linkki

https://www.se.com/uk/en/product/SYA12K16I/

Tuotekoodit

Valmistajan tuotekoodit

• SYA12K16I

GTIN- / EAN-koodit

• 2000009247718
• 8592978179229

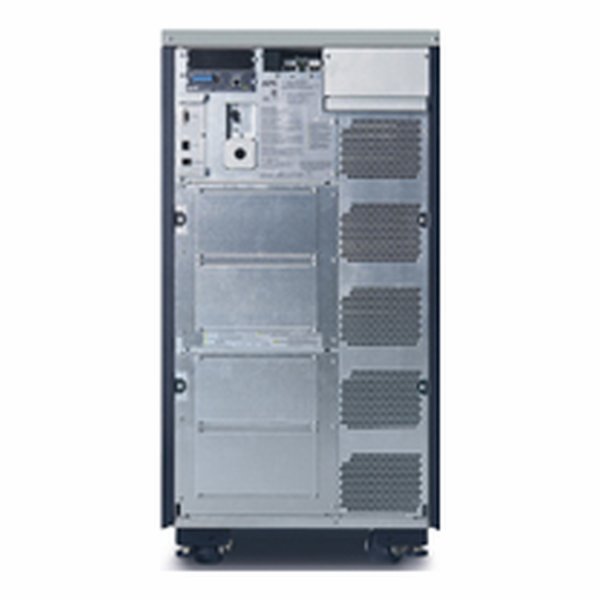

Tuotekuvat

Features

Output power capacity

12 kVA

Output power

8400 W

Waveform

Sine

Number of input phases

1

Number of output phases

1

Single-phase input voltage supported

240,220 V

Three-phase input voltage supported

220,380,400,415 V

Emergency Power Off (EPO)

Kyllä

Ports & interfaces

AC outlet types

Hardwire

Battery

Battery replacement accessibility

End-user

Typical backup time at full load

7.5 min

Typical backup time at half load

20.2 min

Battery recharge time

3 h

Replacement battery cartridge

SYBT5

Design

Product colour

Black, Silver

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-15 - 45 °C

Operating relative humidity (H-H)

0 - 95 %

Storage relative humidity (H-H)

0 - 95 %

Operating altitude

0 - 3000 m

Technical details

Packaging recycled materials

Recycled cardboard

Sustainable packaging

Ei

SCIP number

2d54512b-134b-4bf3-ab6e-849ecf1e3919

Certificates

Waste Electrical and Electronic Equipment (WEEE) compliance

Kyllä

Compliance certificates

RoHS, REACH, WEEE

Certification

C-Tick; CE; GOST; VDE

Power

Input current (max)

55 A

Weight & dimensions

Width

483 mm

Depth

726 mm

Height

937 mm

Weight

263640 g

Logistics data

Customs product code (TARIC)

8504409590

Harmonized System (HS) code

85078000

Total carbon footprint (kg of CO2e)

42559.0307521064

Country of origin

Philippines

Other features

Battery type

Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof

Interface

DB-9 RS-232, Smart-Slot

Output connections

(1) Hard Wire 3-wire (H N + G)

Input connection type

Hard Wire 3 wire (1PH+N+G), Hard Wire 5-wire (3PH + N + G)

Dimensions (WxDxH)

480 x 730 x 940 mm

Nominal output voltage

230 V

Output voltage note

Configurable for 220: 230 or 240 nominal output voltage

Output connection type

hard wire 3-wire (H N + E) for 1 zone(s)

Output voltage

220 V

Mounting

front

I/O ports

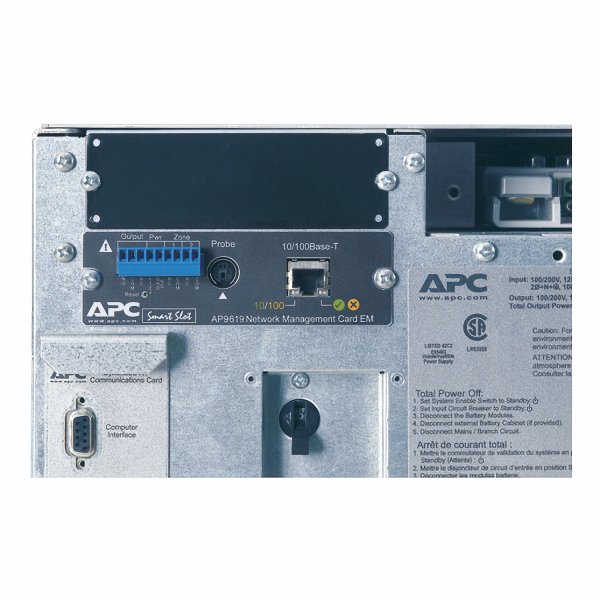

Available Smart Slot Interface Quantity - 1 Pre-Installed SmartSlot Cards - AP9619
