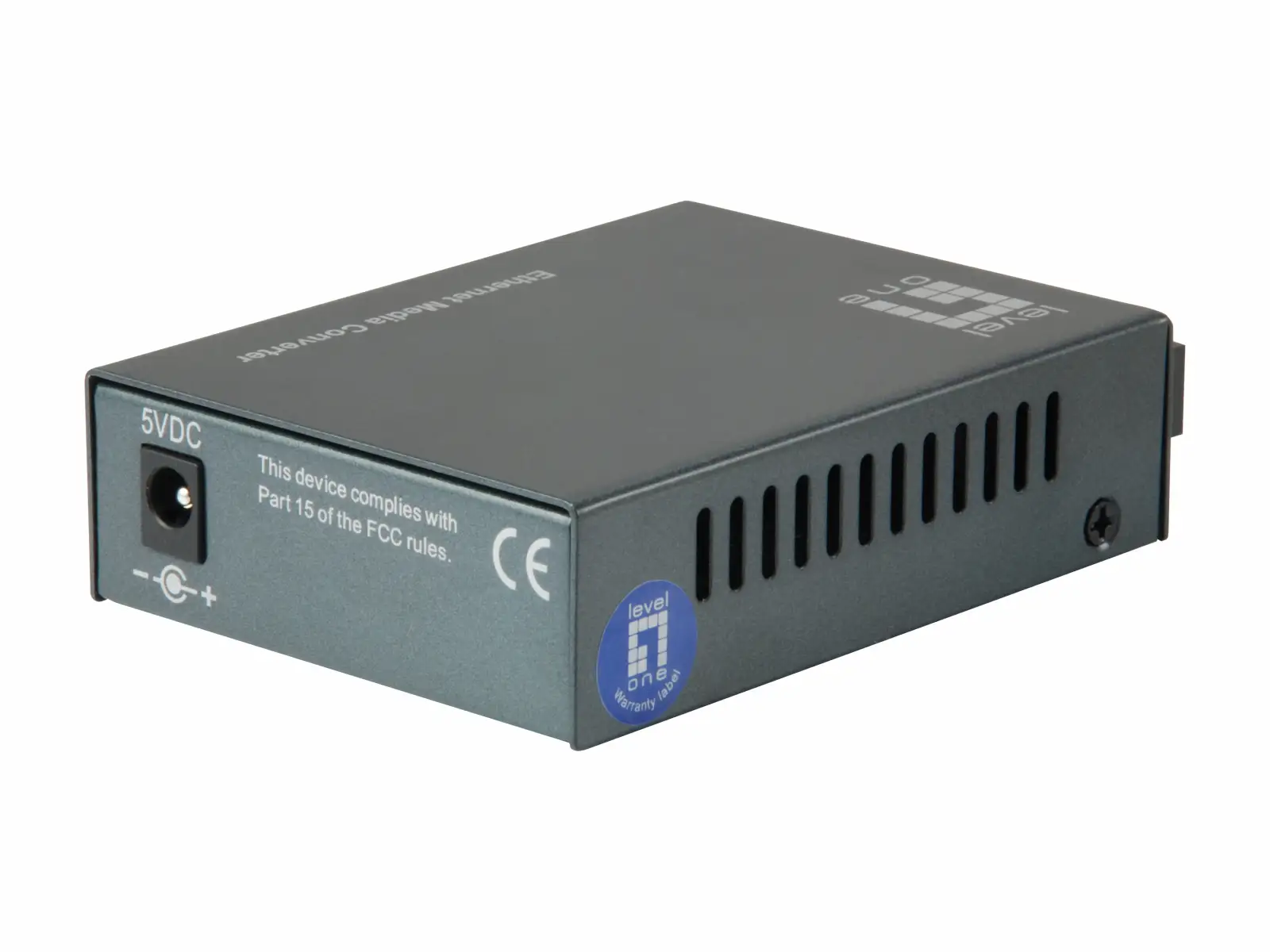

LevelOne FVT-1106

Tuote

Valmistaja

LevelOne

Tuotenimi

FVT-1106

Valmistajan linkki

http://uk.level1.com/Media-Converters/FVT-1106/p-4241.htm

Tuotekoodit

Valmistajan tuotekoodit

• 54072603
• FVT-1106

GTIN- / EAN-koodit

• 4015867208083

Tuotekuvat

Network

Maximum data transfer rate

100 Mbit/s

Converter input interface

10Base-T, 100Base-TX

Converter output interface

100Base-FX

Networking standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3x

Ethernet interface type

Fast Ethernet

Ethernet LAN data rates

10,100 Mbit/s

Copper ethernet cabling technology

10BASE-T, 100BASE-TX

Fiber ethernet cabling technology

100BASE-FX

Flow control support

Kyllä

Auto MDI/MDI-X

Kyllä

Auto-negotiation

Kyllä

Store-and-forward

Kyllä

Duplex system

Full

Performance

Maximum transfer distance

120000 m

Wavelength

1550 nm

Fiber mode structure

Single-mode

Mean time between failures (MTBF)

100000 h

Features

Internal

Ei

LED indicators

Kyllä

Product colour

Black

Ports & interfaces

Connectivity technology

Wired

Ethernet LAN (RJ-45) ports

1

Fiber ports quantity

1

Fiber optic connector

SC

DC-in jack

Kyllä

Power

Input voltage

5 V

Input current

1 A

Weight & dimensions

Width

94 mm

Depth

71 mm

Height

26 mm

Weight

200 g

Operational conditions

Operating temperature (T-T)

0 - 50 °C

Storage temperature (T-T)

-20 - 70 °C

Operating relative humidity (H-H)

5 - 90 %

Packaging content

AC adapter included

Kyllä

Quick installation guide

Kyllä

Packaging data

Package width

230 mm

Package depth

150 mm

Package height

58 mm

Package weight

300 g

Package type

Box

Certificates

Compliance certificates

RoHS

Safety

CE

Certification

CE

Logistics data

Country of origin

China

Harmonized System (HS) code

85176990

Master (outer) case width

440 mm

Master (outer) case length

420 mm

Master (outer) case height

305 mm

Master (outer) case gross weight

32000 g

Products per master (outer) case

40 pc(s)
