Bosch Serie 4 DWB66FM50

Tuote

Valmistaja

Bosch

Tuoteperhe / -sarja

Serie 4

Tuotenimi

DWB66FM50

Tuotekoodit

Valmistajan tuotekoodit

• DWB66FM50

GTIN- / EAN-koodit

• 4242005036073

Tuotekuvat

Performance

Maximum extraction power

580 m³/h

Type of extraction

Ducted/Recirculating

Fluid dynamic efficiency class

A

Lighting efficiency class

A

Grease filtering efficiency class

B

Maximum recirculating power

230 m³/h

Boost position air extraction power

605 m³/h

Number of speeds

3

Intensive speed

Kyllä

Noise level

60 dB

Noise level (low speed)

48 dB

Noise level (high speed)

60 dB

Noise level (intensive speed)

69 dB

Airflow (low speed)

238 m³/h

Minimum distance from electric hob

550 mm

Minimum distance from gas hob

650 mm

Design

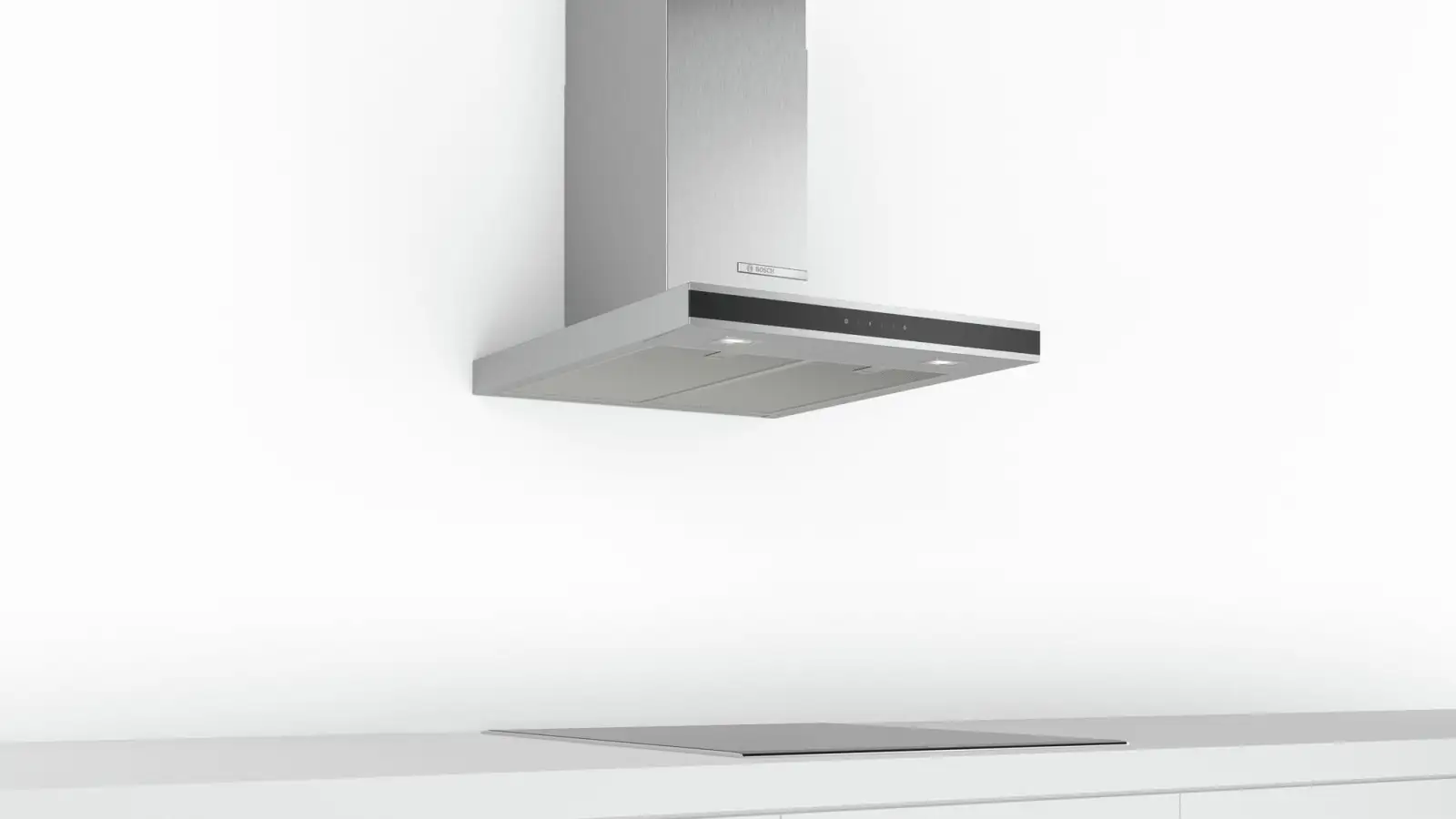

Type

Wall-mounted

Product colour

Stainless steel

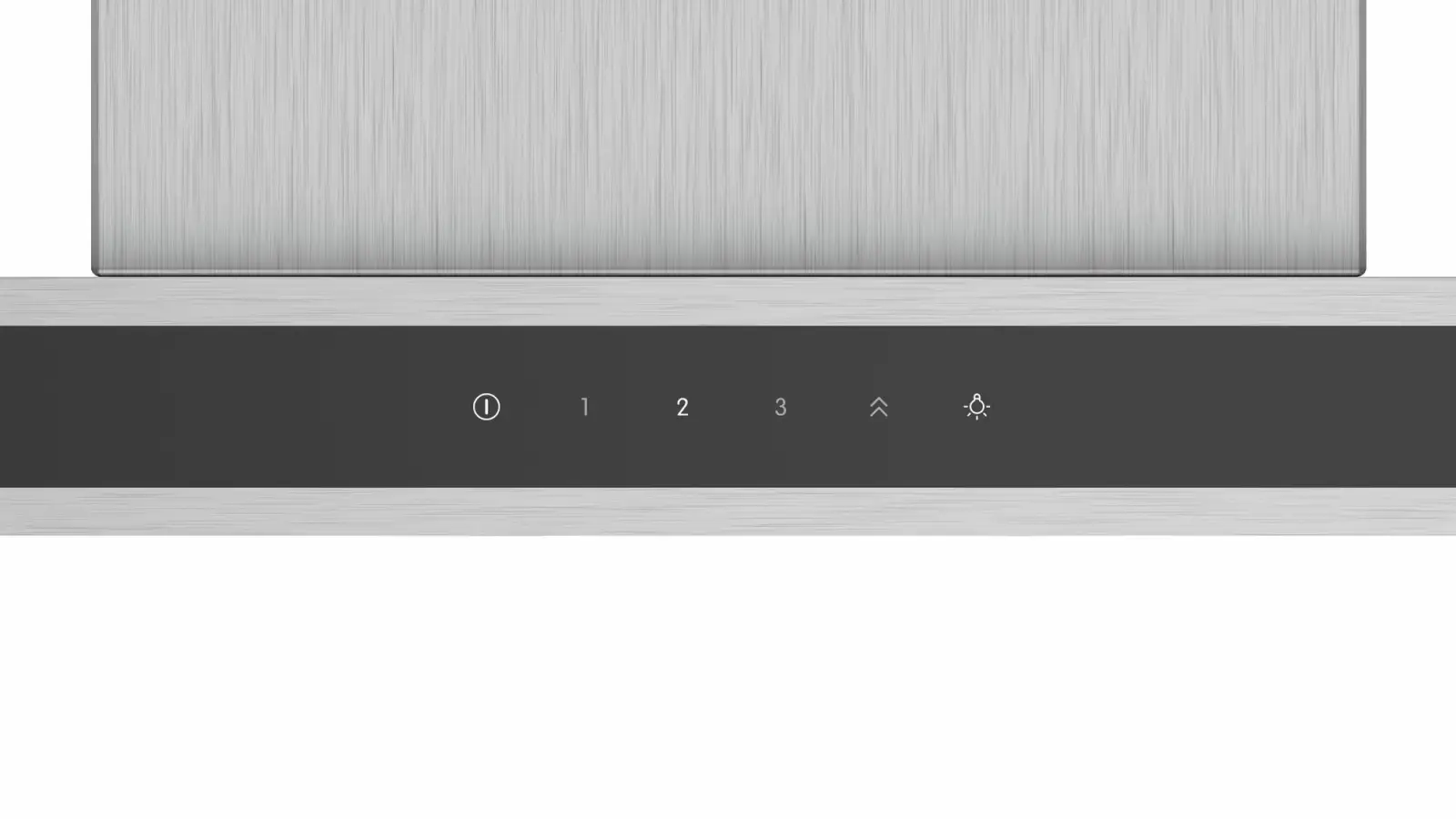

Control type

Touch

Cord length

1.3 m

Built-in display

Kyllä

Display type

LED

Exhaust location

Top

Exhaust connection diameter

120 mm

Check valve

Kyllä

Number of motors

1

Certification

CE, VDE

Filtering

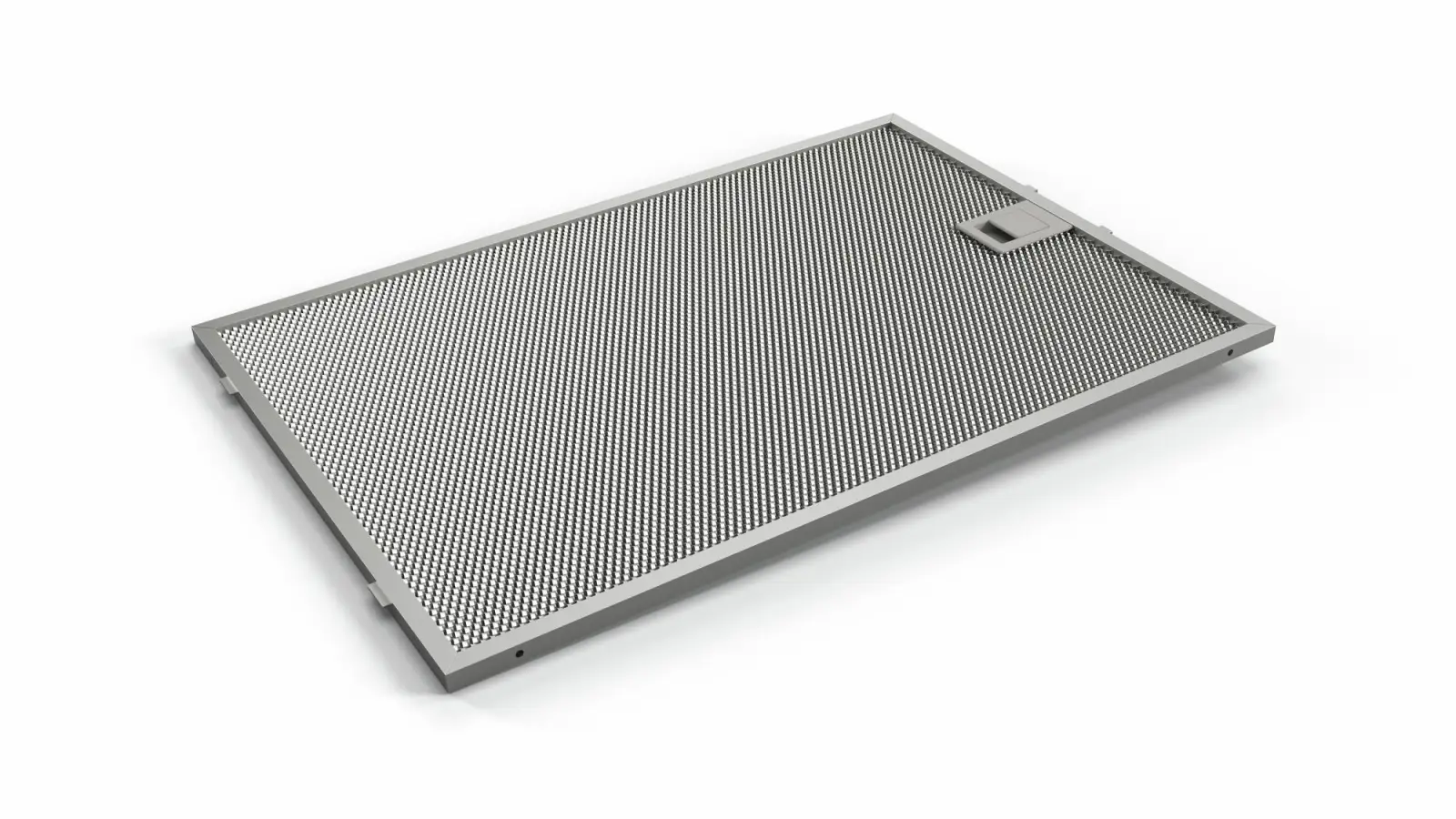

Grease filter type

Aluminium

Removable filter

Kyllä

Washable filter

Kyllä

Lighting

Bulb power

3 W

Number of bulbs

2 bulb(s)

Bulb type

LED

Illuminance

250 lx

Lighting efficiency (LE)

69.1 lux/W

Power

Energy efficiency class

B

Connected load

220 W

Motor power

215 W

Power consumption (standby)

0.26 W

Annual energy consumption

48.1 kWh

AC input voltage

220 - 240 V

AC input frequency

50 - 60 Hz

Current

10 A

Auto power off

Kyllä

Energy efficiency class (legacy scale)

A

Weight & dimensions

Width

600 mm

Depth

500 mm

Height (min)

635 mm

Height (max)

1075 mm

Weight

11000 g

Other features

Grease filtering efficiency (GFE)

85.4 %

Fluid dynamic efficiency (FDE)

28.1
