Ominaisuudet
- Kytkin tyyppi
- Hallittu
- MAC-osoitetaulukko
- 16000 entries
- Kytkinkerros
- L2/L3
- Console-portti
- RJ-45
Arvostelut
Arvostele tuoteAlin hinta 30 päivän aikana
5 354,73 €
+1,57 %
Hinta on nyt 84,12 € kalliimpi.
HintahistoriaTuotetiedot
Tuote
- Valmistaja
- DELL
- Tuoteperhe / -sarja
- S-Series
- Tuotenimi
- S5248F-ON
- Valmistajan linkki
- https://www.dell.com/en-us/work/shop/povw/networking-s-series..
Tuotekoodit
- Valmistajan tuotekoodit
- 210-APEX
- GTIN- / EAN-koodit
- 5397184223130

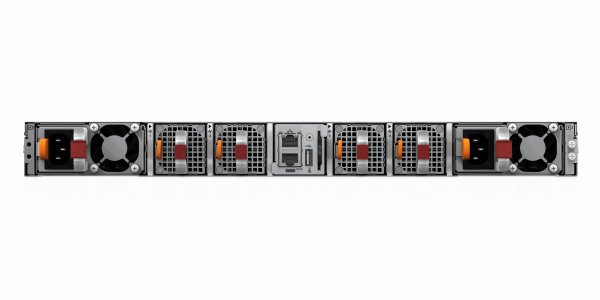

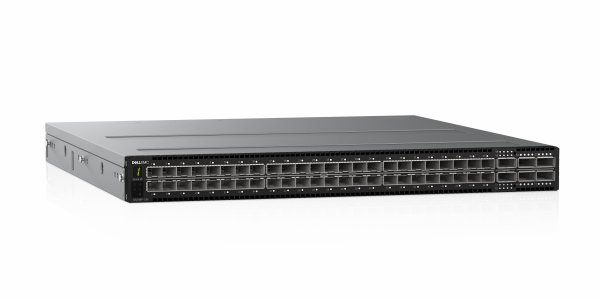

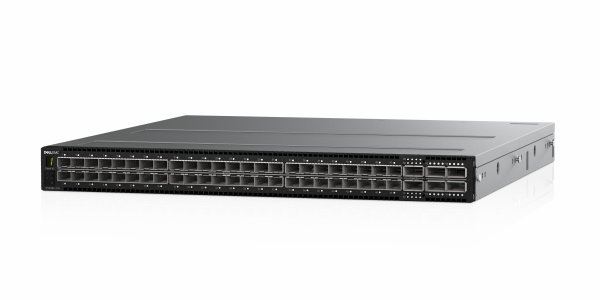

Tuotekuvat
Management features
- Switch type
- Managed
- Switch layer
- L2/L3
- Quality of Service (QoS) support
- Kyllä
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity
- 0
- Basic switching RJ-45 Ethernet ports type
- Ei
- Installed SFP modules quantity
- 0
- Installed SFP+ modules quantity
- 0
- SFP module slots quantity
- 48
- Fiber optic connector
- QSFP-DD, QSFP28-DD, QSFP28, SFP28
- Console port
- RJ-45
- Power connector
- AC-in jack
Network
- Networking standards
- IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3x
- 10G support
- Kyllä
- Port mirroring
- Kyllä
- Link aggregation
- Kyllä
- Address Resolution Protocol (ARP) entries (max)
- 128000
- VLAN support
- Kyllä
- Virtual LAN features
- Tagged VLAN
Optical fiber
- Switching optical modules type
- 100 Gigabit Ethernet
Data transmission
- MAC address table
- 16000 entries
- Switching capacity
- 2000 Gbit/s
- Packet buffer memory
- 32 MB
Security
- Security algorithms
- 802.1x RADIUS, AES, EAP
Multicast features
- Multicast support
- Kyllä
Protocols
- Management protocols
- CLI, SNMP, REST, API’s
Design
- Rack mounting
- Kyllä
- Stackable
- Kyllä
- Form factor
- 1U
- Product colour
- Black
- LED indicators
- Kyllä
- Cable management
- Kyllä
- Display type
- LED
- Backlight display
- Kyllä
- Number of fans
- 4 fan(s)
Performance
- Built-in processor
- Kyllä
- Internal memory
- 16000 MB
- Compatible operating systems
- Debian Linux version 9
- List of RFCs
- IP, IPv4, IPv6, RIP, OSPF, IS-IS, BGP
- Minimum system requirements
- Linux Kernel 4.9
Power
- Power supply included
- Kyllä
- Redundant power supply (RPS) support
- Kyllä
- Number of power supply units
- 2
- AC input voltage
- 100 - 240 V
- AC input frequency
- 50 - 60 Hz
- Power consumption (typical)
- 400 W
- Power consumption (max)
- 602 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE)
- Ei
Operational conditions
- Operating temperature (T-T)
- 0 - 45 °C
- Storage temperature (T-T)
- -40 - 70 °C
- Operating relative humidity (H-H)
- 5 - 90 %
- Storage relative humidity (H-H)
- 5 - 90 %
- Heat dissipation
- 2054 BTU/h
Weight & dimensions
- Width
- 434 mm
- Depth
- 460 mm
- Height
- 44 mm
- Weight
- 9700 g
Certificates
- Certification
- RoHS
Logistics data
- Harmonized System (HS) code
- 85176990
