Lenovo Legion Y540

Tuote

Valmistaja

Lenovo

Tuoteperhe / -sarja

Legion

Tuotenimi

Y540

Julkaisupäivä

31.08.2019

Valmistajan linkki

https://www.lenovo.com/nz/en/laptops/legion-laptops/lenovo-leg..

Tuotekoodit

Valmistajan tuotekoodit

• 81Q4000YMX

GTIN- / EAN-koodit

• 0193386493228

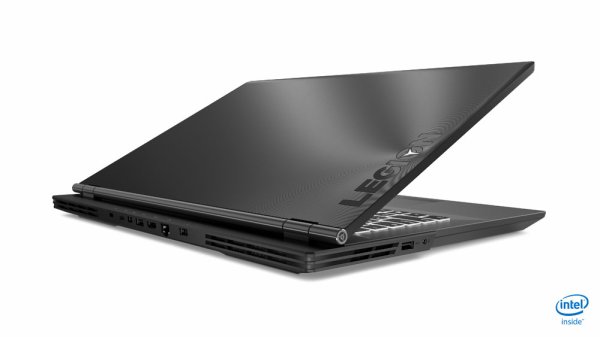

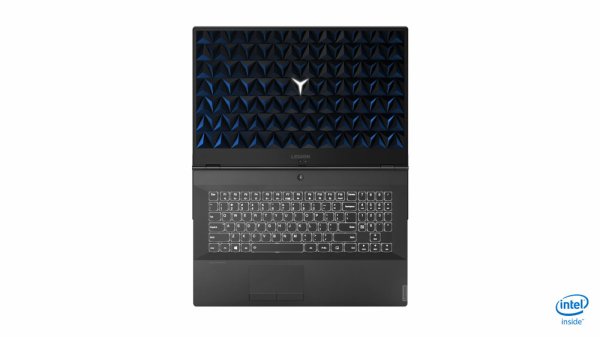

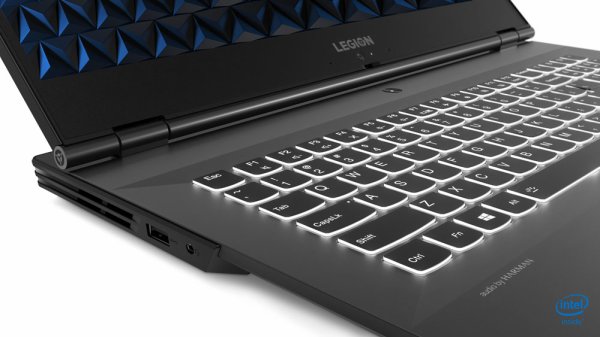

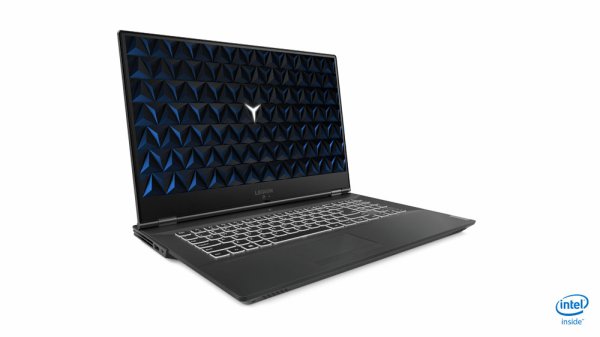

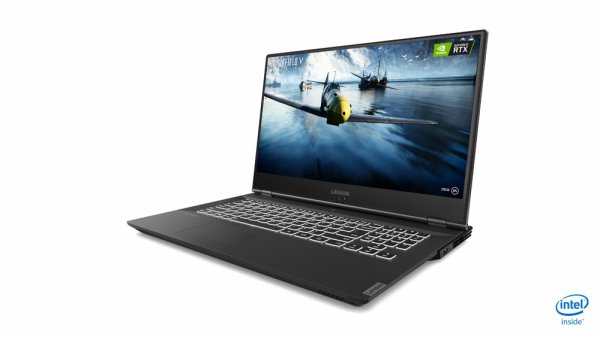

Tuotekuvat

Design

Product type

Notebook

Product colour

Black

Form factor

Clamshell

Housing material

Acrylonitrile butadiene styrene (ABS), Polycarbonate

Market positioning

Gaming

Display

Display diagonal

17.3 "

Display resolution

1920 x 1080 pixels

Touchscreen

Ei

Panel type

IPS

HD type

Full HD

LED backlight

Kyllä

Native aspect ratio

16:9

Display brightness

300 cd/m²

Dual-screen

Ei

Processor

Processor manufacturer

Intel

Processor family

9th gen Intel® Core™ i7

Processor model

i7-9750H

Processor frequency

2.6 GHz

Processor boost frequency

4.5 GHz

Processor cores

6

Processor threads

12

System bus rate

8 GT/s

Processor cache

12 MB

Processor cache type

Smart Cache

Processor socket

BGA 1440

Processor lithography

14 nm

Processor operating modes

64-bit

Processor codename

Coffee Lake

Motherboard chipset

Intel® HM370

Thermal Design Power (TDP)

45 W

Configurable TDP-down

35 W

Tjunction

100 °C

Maximum number of PCI Express lanes

16

PCI Express slots version

3.0

PCI Express configurations

1x16,2x8,1x8+2x4

Memory

Internal memory

16 GB

Internal memory type

DDR4-SDRAM

Memory clock speed

2666 MHz

Memory form factor

SO-DIMM

Memory slots

2x SO-DIMM

Maximum internal memory

32 GB

Storage

Total storage capacity

1000 GB

Storage media

SSD

Total SSDs capacity

1000 GB

Number of SSDs installed

1

SSD capacity

1000 GB

Optical drive type

Ei

Card reader integrated

Ei

Graphics

On-board graphics adapter

Kyllä

Discrete graphics adapter

Kyllä

Discrete graphics adapter model

NVIDIA® GeForce RTX™ 2060

On-board graphics adapter family

Intel® UHD Graphics

On-board graphics adapter model

Intel® UHD Graphics 630

On-board graphics adapter base frequency

350 MHz

On-board graphics adapter dynamic frequency (max)

1150 MHz

Maximum on-board graphics adapter memory

64 GB

On-board graphics adapter DirectX version

12.0

On-board graphics adapter OpenGL version

4.5

On-board graphics adapter ID

0x3E9B

Discrete graphics adapter memory

6 GB

Discrete graphics memory type

GDDR6

Number of discrete graphics adapters installed

1

Audio

Audio chip

Realtek ALC3287

Number of built-in speakers

2

Speakers manufacturer

Harman Kardon

Speaker power

2 W

Built-in microphone

Kyllä

Number of microphones

2

Camera

Front camera

Kyllä

Front camera resolution (numeric)

1 MP

Front camera signal format

720p

Front camera HD type

HD

Network

Bluetooth

Kyllä

Mobile network connection

Ei

Wi-Fi

Kyllä

Top Wi-Fi standard

Wi-Fi 5 (802.11ac)

Wi-Fi standards

802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac)

Antenna type

2x2

Ethernet LAN

Kyllä

Ethernet LAN data rates

10,100,1000 Mbit/s

Bluetooth version

4.2

WWAN

Ei

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

Ethernet LAN (RJ-45) ports

1

HDMI ports quantity

1

HDMI version

2.0

Mini DisplayPorts quantity

1

Combo headphone/mic port

Kyllä

Charging port type

DC-in jack

USB Sleep-and-Charge

Kyllä

USB Sleep-and-Charge ports

1

Keyboard

Pointing device

Touchpad

Numeric keypad

Kyllä

Keyboard backlit

Kyllä

Windows keys

Kyllä

Software

Operating system installed

Windows 10 Home

Operating system architecture

64-bit

Processor special features

Intel® My WiFi Technology (Intel® MWT)

Kyllä

Intel® Identity Protection Technology (Intel® IPT)

Kyllä

Intel® Hyper Threading Technology (Intel® HT Technology)

Kyllä

Intel® Turbo Boost Technology

2.0

Enhanced Intel SpeedStep Technology

Kyllä

Intel® Clear Video HD Technology (Intel® CVT HD)

Kyllä

Intel Clear Video Technology

Kyllä

Intel® InTru™ 3D Technology

Kyllä

Intel® Quick Sync Video Technology

Kyllä

Intel Flex Memory Access

Kyllä

Intel® AES New Instructions (Intel® AES-NI)

Kyllä

Intel Trusted Execution Technology

Ei

Intel VT-x with Extended Page Tables (EPT)

Kyllä

Intel® Secure Key

Kyllä

Intel TSX-NI

Ei

Intel Stable Image Platform Program (SIPP)

Ei

Intel® OS Guard

Kyllä

Intel Software Guard Extensions (Intel SGX)

Kyllä

Intel 64

Kyllä

Execute Disable Bit

Kyllä

Idle States

Kyllä

Thermal Monitoring Technologies

Kyllä

Processor package size

42 x 28 mm

Supported instruction sets

SSE4.1,SSE4.2,AVX 2.0

CPU configuration (max)

1

Embedded options available

Ei

Intel Virtualization Technology for Directed I/O (VT-d)

Kyllä

Intel Virtualization Technology (VT-x)

Kyllä

Processor ARK ID

191045

Battery

Battery technology

Lithium-Ion (Li-Ion)

Battery capacity (Watt-hours)

57 Wh

Battery life (max)

5 h

Power

AC adapter power

230 W

Security

Cable lock slot

Kyllä

Cable lock slot type

Kensington

Fingerprint reader

Ei

Trusted Platform Module (TPM)

Kyllä

Password protection

Kyllä

Password protection type

HDD, Power on, SSD, Supervisor

Weight & dimensions

Weight

2840 g

Width

399.8 mm

Depth

290 mm

Height (front)

25 mm

Height (rear)

26.3 mm

Packaging content

Manual

Kyllä

Warranty card

Kyllä

Power cord included

Kyllä

Technical details

Sustainability certificates

RoHS

Other features

AC adapter included

Kyllä

LightScribe

Ei

3D

Ei

Maximum internal memory (64-bit)

32 GB
