Fractal Design Ion+ 860W
Tuotetiedot
Tuote
- Valmistaja
- Fractal Design
- Tuotenimi
- Ion+ 860W
- Julkaisupäivä
- 26.04.2019
- Valmistajan linkki
- https://www.fractal-design.com/products/power-supplies/ion/ion..
Tuotekoodit
- Valmistajan tuotekoodit
- FD-PSU-IONP-860P-BK
- FD-PSU-IONP-860P-BK-
- FD-PSU-IONP-860P-BK-EU
- GTIN- / EAN-koodit
- 7340172701927

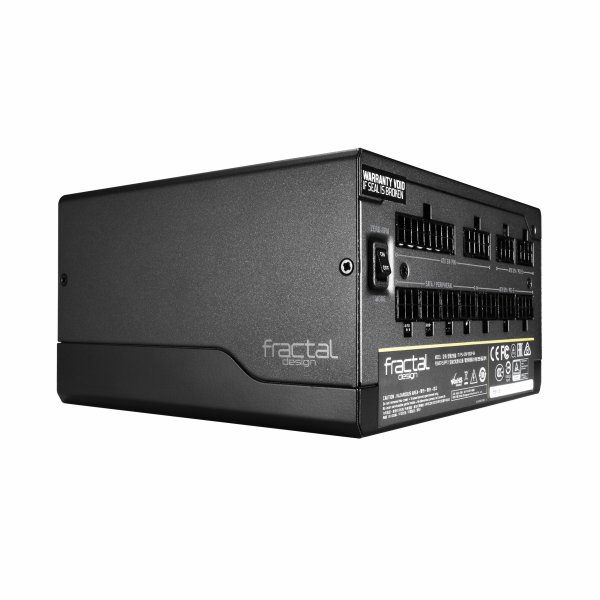

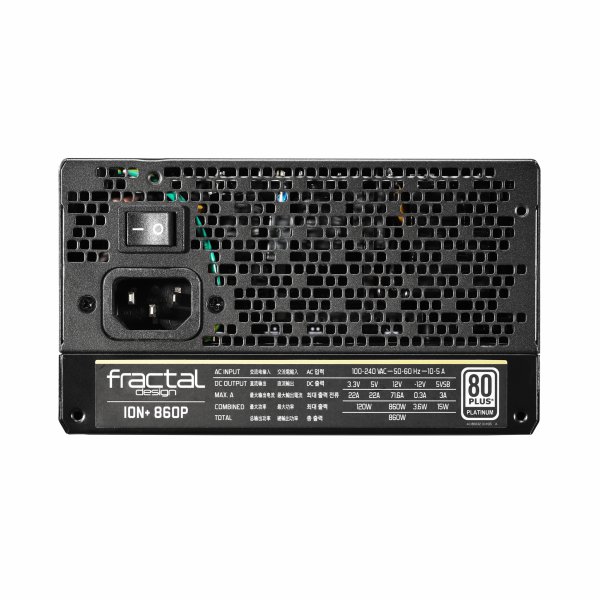

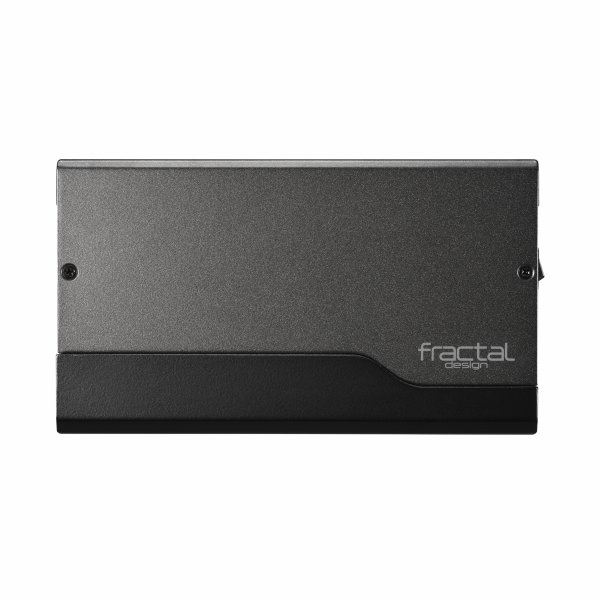

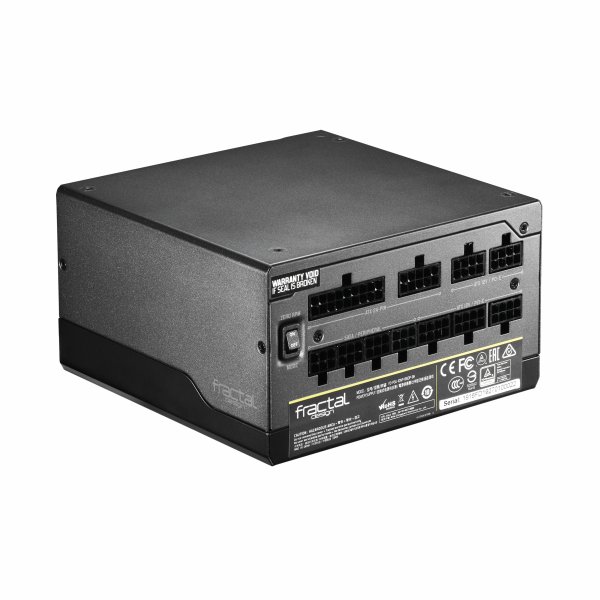

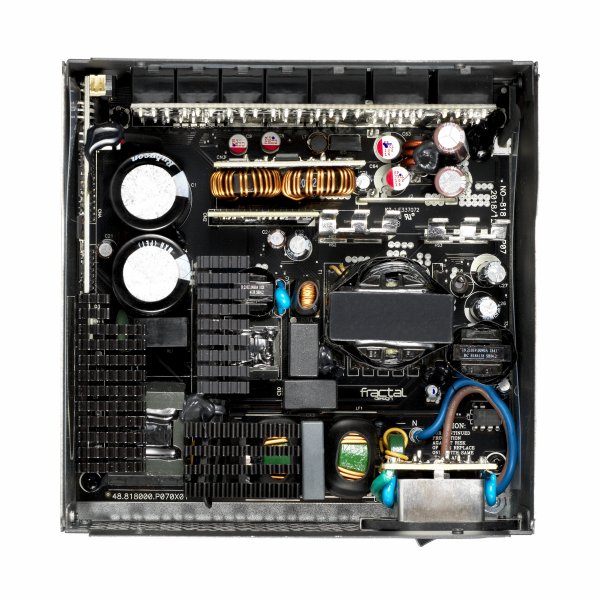

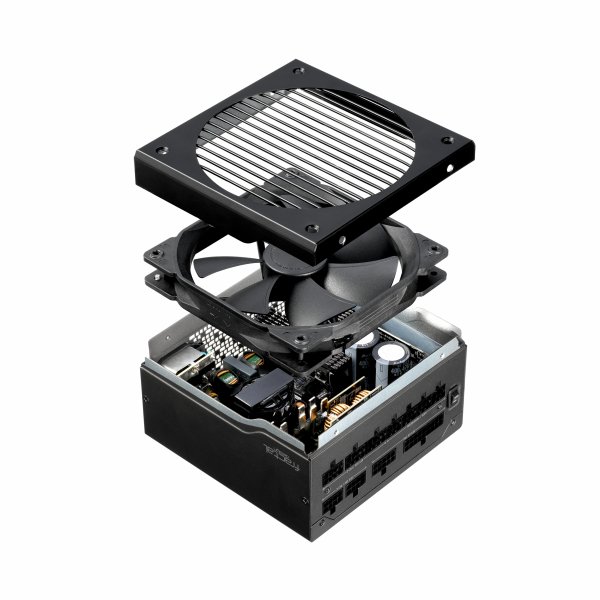

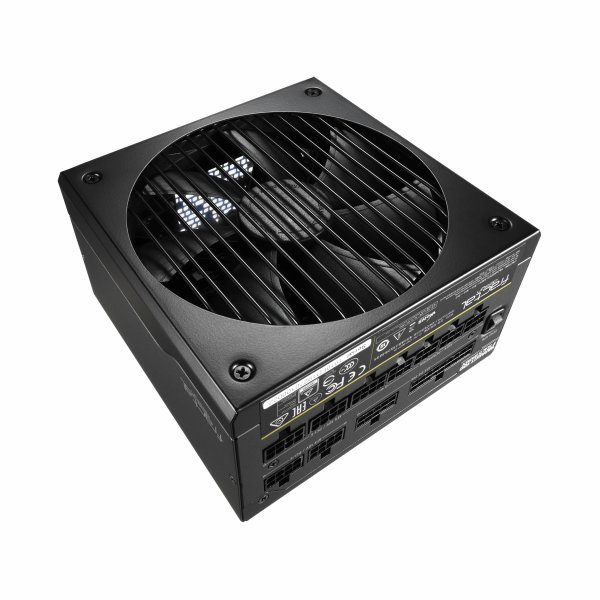

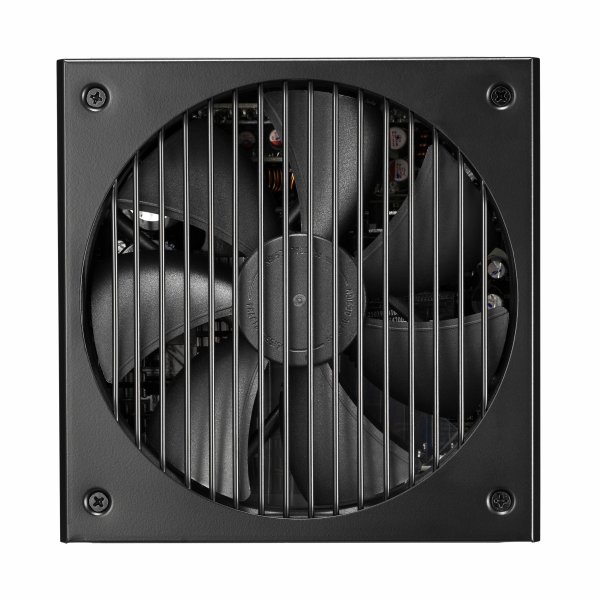

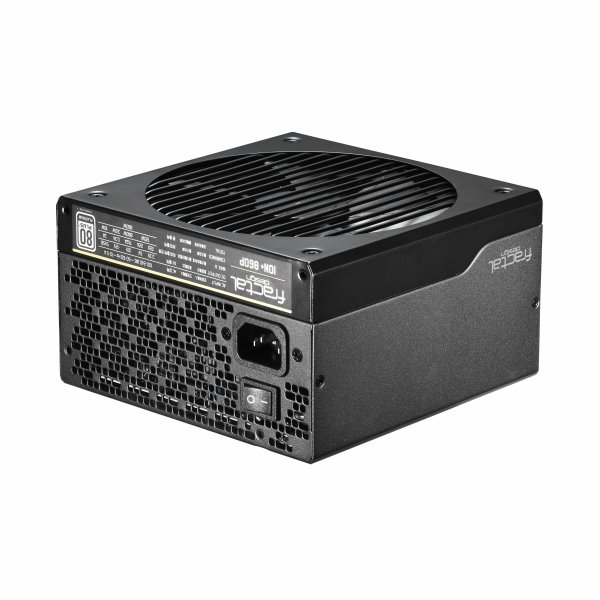

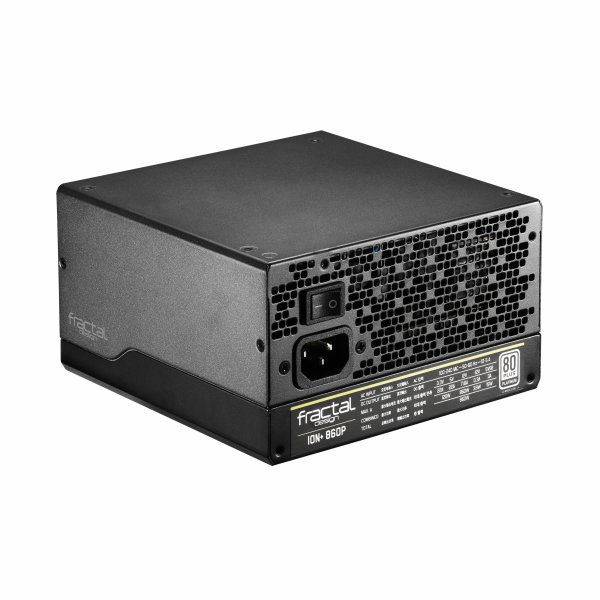

Tuotekuvat
Power
- Total power
- 860 W
- AC input voltage
- 100 - 240 V
- AC input frequency
- 50/60 Hz
- Input current
- 10 A
- Combined power (+3.3V)
- 120 W
- Combined power (+5V)
- 120 W
- Max output current (+3.3V)
- 22 A
- Max output current (+12V)
- 71.6 A
- Max output current (+5V)
- 22 A
- Max output current (-12V)
- 0.3 A
- Max output current (+5Vsb)
- 3 A
- Power protection features
- Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

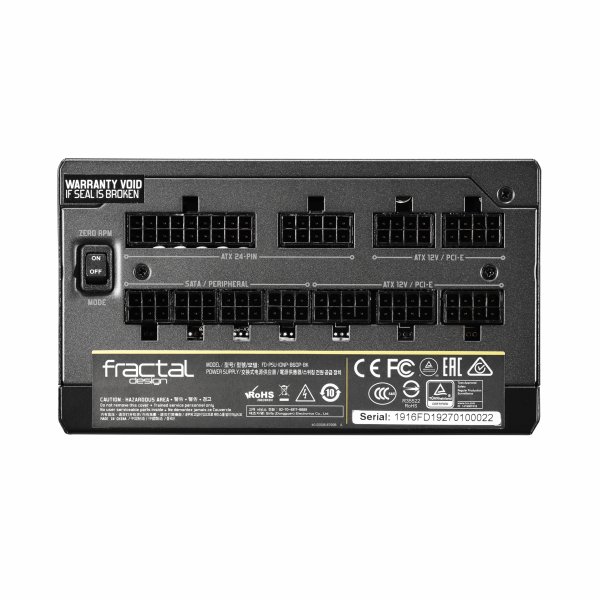

Ports & interfaces
- Motherboard power connector
- 24-pin ATX
- Number of SATA power connectors
- 10
- EPS power connector (8-pin)
- Kyllä
- PCI Express power connectors (6+2 pin)
- 6
- ATX Power connector (24-pin)
- Kyllä
Performance
- Purpose
- PC
- 80 PLUS certification
- 80 PLUS Platinum
- Bearing technology
- FDB
- Mean time between failures (MTBF)
- 100000 h
- Certification
- CE, FCC, TUV, cTUVus, EAC, RCM, CCC, BSMI, CB, WEEE
Design
- Product colour
- Black
- Fan diameter
- 140 mm
- On/off switch
- Kyllä

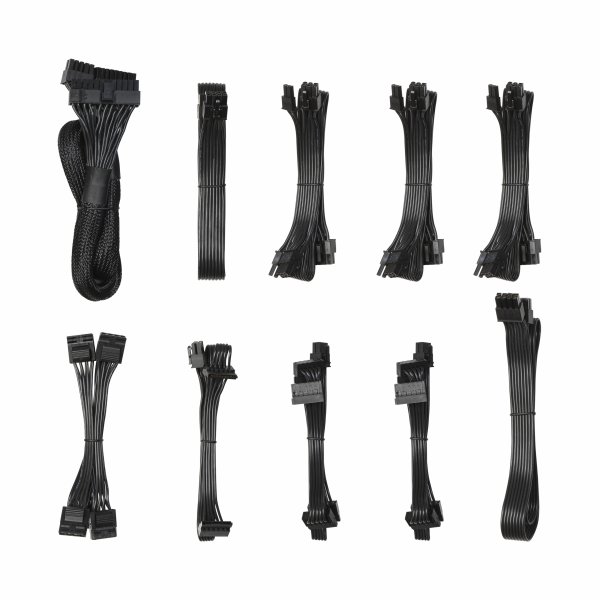

Packaging content
- Cables included
- AC
Weight & dimensions
- Width
- 150 mm
- Depth
- 150 mm
- Height
- 86 mm
- Weight
- 1665 g
Packaging data
- Manual
- Kyllä
- Package width
- 110 mm
- Package depth
- 325 mm
- Package height
- 210 mm
- Package weight
- 2975 g
Technical details
- Sustainability certificates
- RoHS
Other features
- Screws included
- Kyllä
- Cable ties included
- Kyllä
