XFX XXX Edition

Tuote

Valmistaja

XFX

Tuotenimi

XXX Edition

Julkaisupäivä

02.09.2012

Valmistajan linkki

http://xfxforce.com/en-gb/Products/Power-Supply/XFX/Pro-Series..

Tuotekoodit

Valmistajan tuotekoodit

• P1-650X-XXB9

GTIN- / EAN-koodit

• 0778656057937

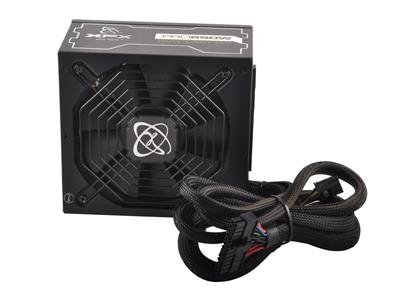

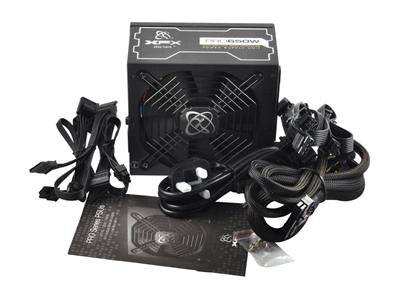

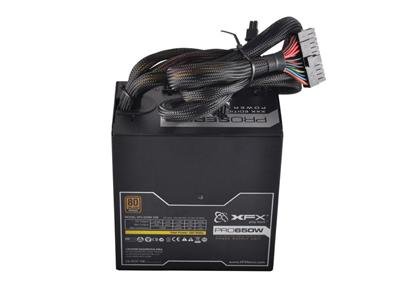

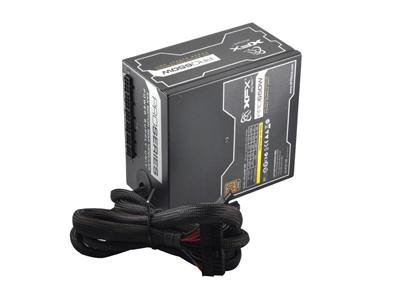

Tuotekuvat

Power

Total power

650 W

AC input voltage

90 - 264 V

AC input frequency

50 - 60 Hz

Input current

4.5 - 9 A

Maximum input current (@110V)

+12V1,+3.3V,+5V,+5Vsb,-12V A

Power Factor Correction (PFC) type

Active

Combined power (+3.3V)

150 W

Combined power (+12V)

636 W

Combined power (+5V)

150 W

Combined power (-12V)

6 W

Combined power (+5Vsb)

15 W

Max output current (+3.3V)

25 A

Max output current (+12V)

53 A

Max output current (+12V1)

0.6 A

Max output current (+5V)

25 A

Max output current (-12V)

0.5 A

Max output current (+5Vsb)

3 A

Efficiency

85 %

Power protection features

Over current,Over power,Over voltage,Overheating,Short circuit,Under voltage

Cooling

Fan diameter

135 mm

Fan speed

2500 RPM

Cooling type

Active

Ports & interfaces

Motherboard power connector

20+4 pin ATX

Number of SATA power connectors

8

Peripheral (Molex) power connectors (4-pin)

5

EPS power connector (8-pin)

Kyllä

PCI Express power connectors (6+2 pin)

2

CPU power connector (4+4 pin)

Kyllä

Floppy drive power connector

1

Cabling type

Modular

Performance

Purpose

PC

Power supply unit (PSU) form factor

ATX

ATX version

2.2

EPS version

2.91

Design

Product colour

Black

Weight & dimensions

Width

135 mm

Depth

135 mm

Height

25 mm

Certificates

80 PLUS certification

80 PLUS Bronze

Certification

TUV\nC-tick\nCB\nFCC Class B

Packaging content

Manual

Kyllä
