Ominaisuudet
- 80 PLUS certification
- 80 PLUS Gold
Arvostelut
Arvostele tuoteAlin hinta 30 päivän aikana
143,70 €
+0,9 %
Hinta on nyt 1,30 € kalliimpi.
HintahistoriaTuotetiedot
Tuote
- Valmistaja
- Fractal Design
- Tuotenimi
- FD-PSU-ION-SFX-500G-BK
- Valmistajan linkki
- https://www.fractal-design.com/products/power-supplies/ion/ion..
Tuotekoodit
- Valmistajan tuotekoodit
- FD-PSU-ION-SFX-500G-BK
- FD-PSU-ION-SFX-500G-BK-EU
- GTIN- / EAN-koodit
- 7340172702016

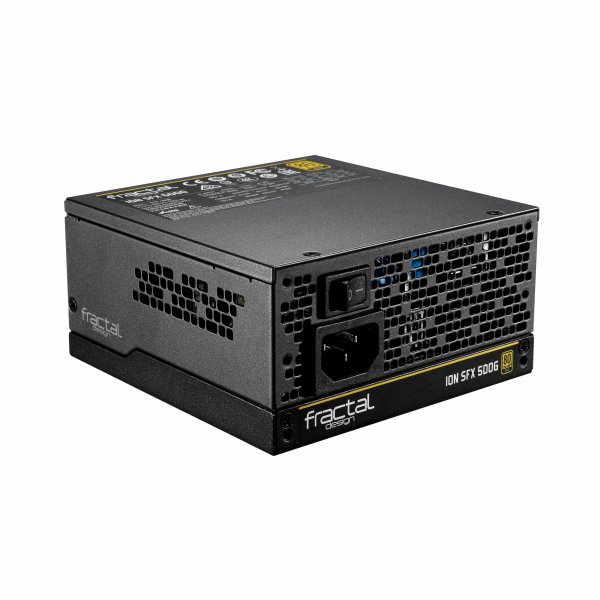

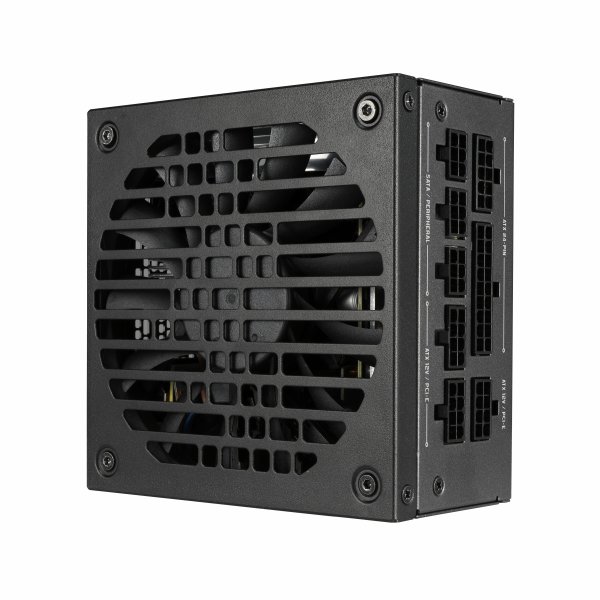

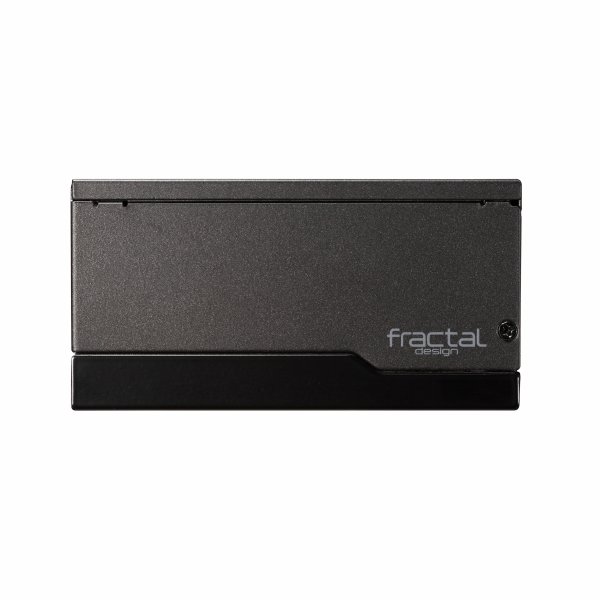

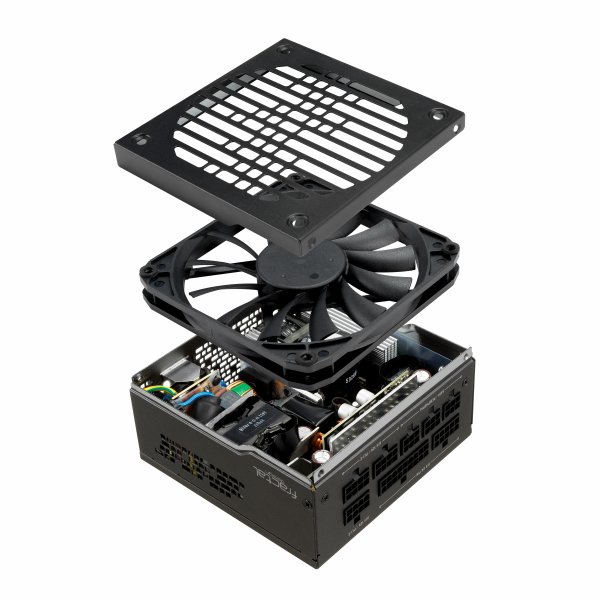

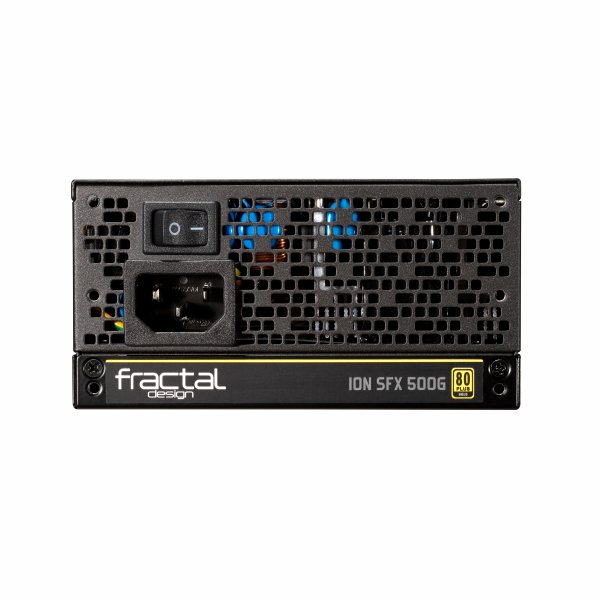

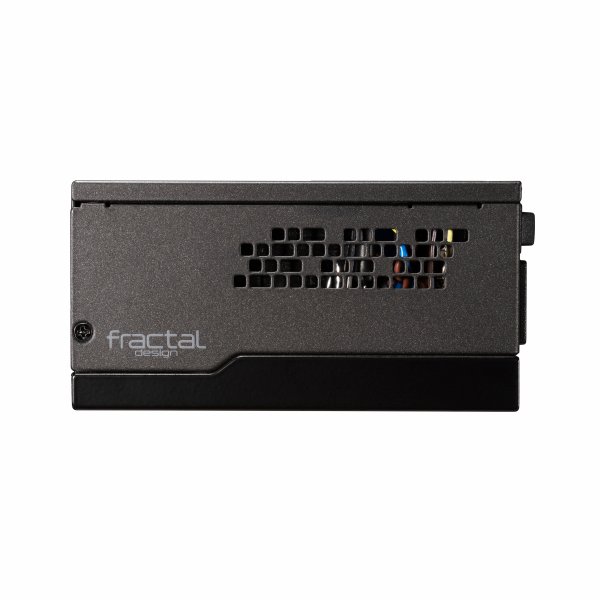

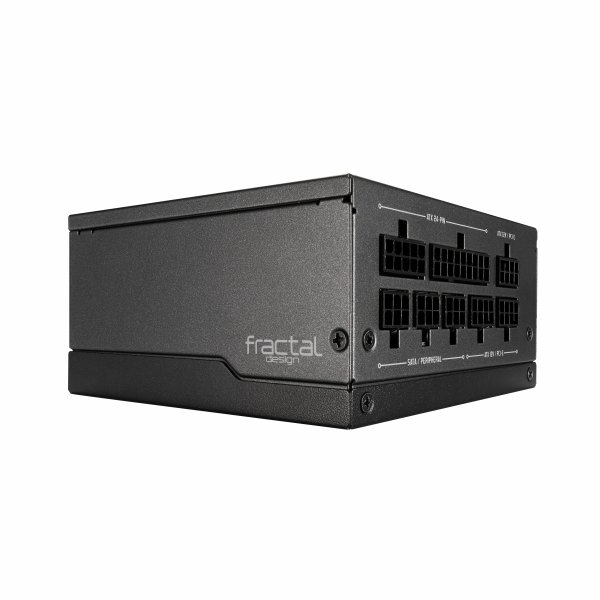

Tuotekuvat

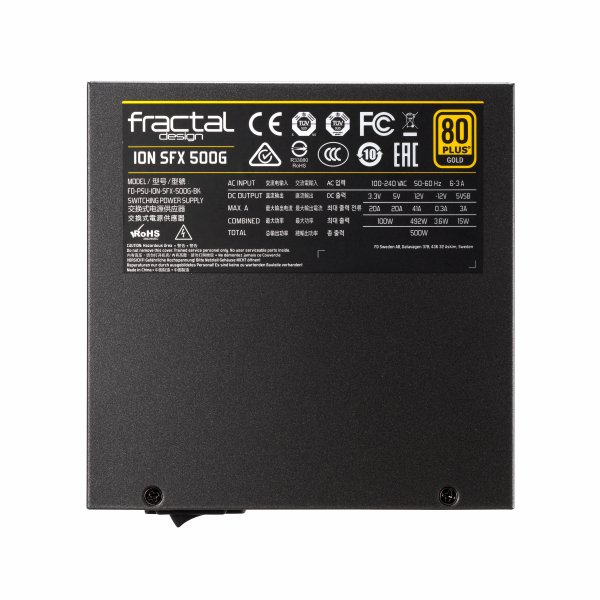

Power
- Total power
- 500 W
- AC input voltage
- 100 - 240 V
- AC input frequency
- 50 - 60 Hz
- Input current
- 6/3 A
- Combined power (+3.3V)
- 100 W
- Combined power (+5V)
- 100 W
- Max output current (+3.3V)
- 20 A
- Max output current (+12V)
- 41 A
- Max output current (+5V)
- 20 A
- Max output current (-12V)
- 0.3 A
- Max output current (+5Vsb)
- 3 A
- Power protection features
- Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

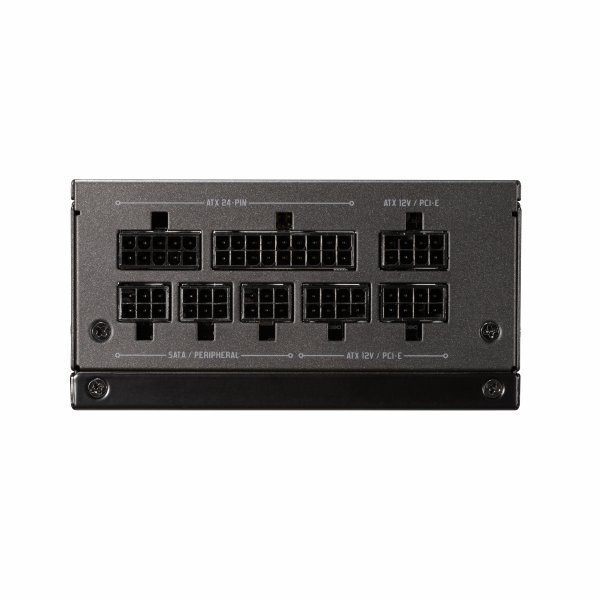

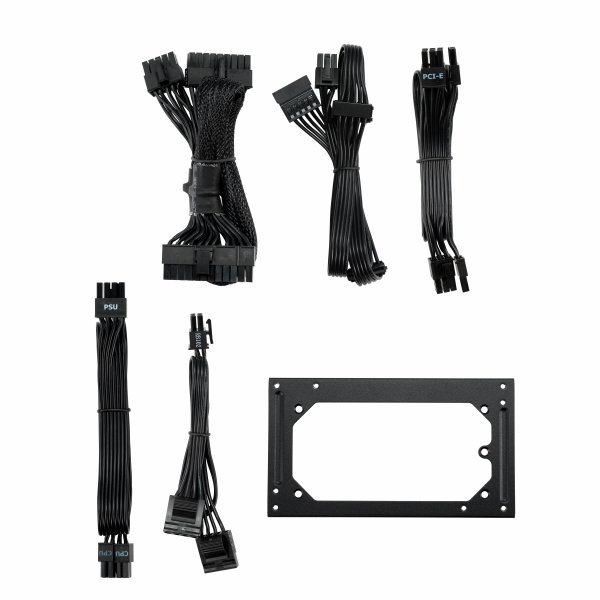

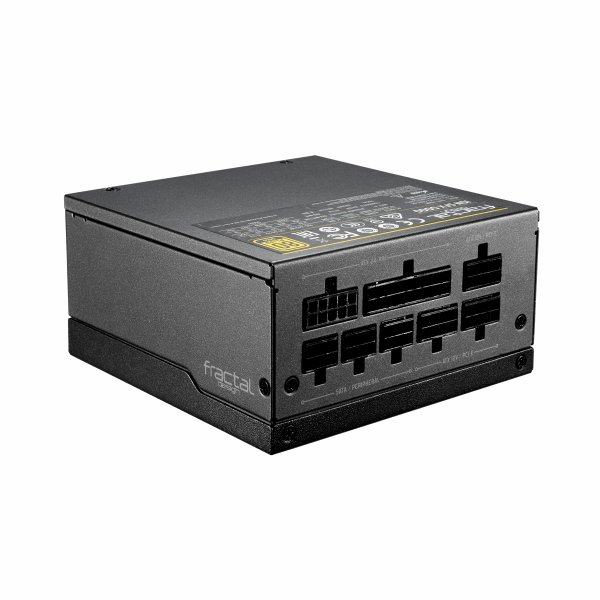

Ports & interfaces
- Motherboard power connector
- 24-pin ATX
- Motherboard power cable length
- 350 mm
- Number of SATA power connectors
- 4
- SATA power cable length
- 100,200,300 mm
- Peripheral (Molex) power connectors (4-pin)
- 2
- Peripheral (Molex) power cable length
- 200,300 mm
- PCI Express power connectors (6+2 pin)
- 2
- PCI Express power cable length
- 500 mm
- CPU power connector (4+4 pin)
- Kyllä
- CPU power cable length
- 400 mm
- ATX Power connector (24-pin)
- Kyllä
- Cabling type
- Fully-Modular
Performance
- Purpose
- PC/Server
- Power supply unit (PSU) form factor
- SFX
- 80 PLUS certification
- 80 PLUS Gold
- Bearing technology
- FDB
- Mean time between failures (MTBF)
- 100000 h

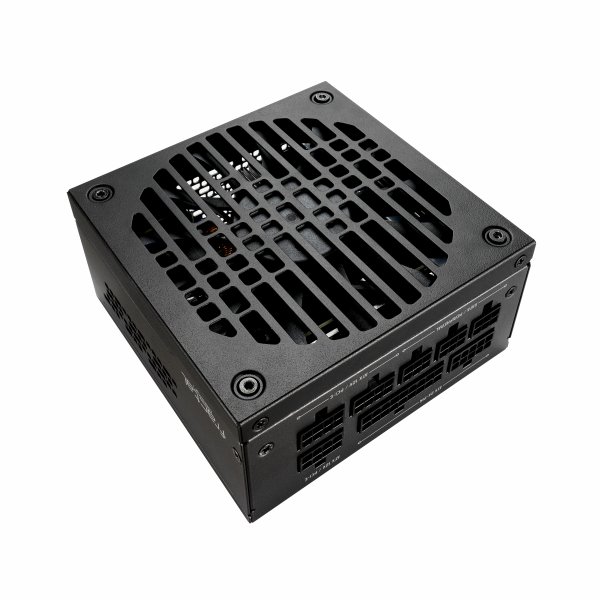

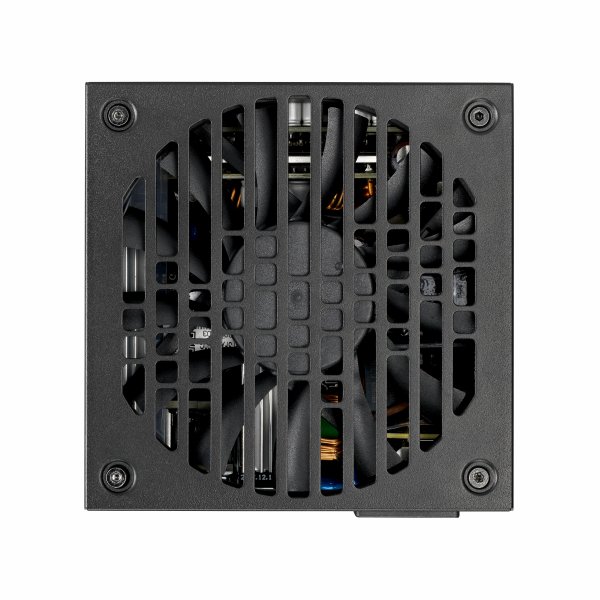

Design
- Product colour
- Black
- Cooling type
- Active
- Fan diameter
- 120 mm
- Number of fans
- 1 fan(s)
- Fan location
- Top
- On/off switch
- Kyllä
Packaging content
- Cables included
- AC
Certificates
- Compliance certificates
- RoHS
- Certification
- CE, FCC, TUV, cTUVus, EAC, RCM, CCC, BSMI, CB, RoHS, WEEE
Weight & dimensions
- Width
- 125 mm
- Depth
- 125 mm
- Height
- 63.5 mm
- Weight
- 1110 g
Packaging data
- Manual
- Kyllä
- Package width
- 260 mm
- Package depth
- 170 mm
- Package height
- 95 mm
- Package weight
- 1911 g
- Package type
- Box
Logistics data
- Harmonized System (HS) code
- 84733020
Other features
- Screws included
- Kyllä
- Cable ties included
- Kyllä
