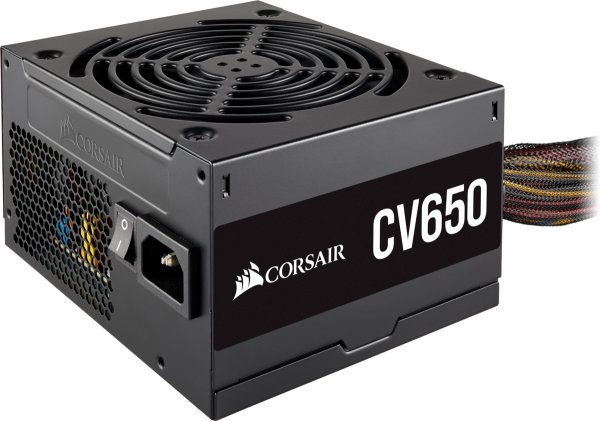

Corsair CV650
Tuotetiedot
Tuote
- Valmistaja
- Corsair
- Tuotenimi
- CV650
- Julkaisupäivä
- 11.01.2020
- Valmistajan linkki
- https://www.corsair.com/us/en/Categories/Products/Power-Supply..
Tuotekoodit
- Valmistajan tuotekoodit
- CP-9020211-EU
- GTIN- / EAN-koodit
- 0840006615170
Power
- Total power
- 650 W
- AC input voltage
- 100 - 240 V
- AC input frequency
- 47 - 63 Hz
- Input current
- 10 - 5 A
- Combined power (+3.3V)
- 130 W
- Combined power (+12V)
- 624 W
- Combined power (+5V)
- 130 W
- Combined power (-12V)
- 3.6 W
- Combined power (+5Vsb)
- 15 W
- Max output current (+3.3V)
- 24 A
- Max output current (+12V)
- 52 A
- Max output current (+5V)
- 20 A
- Max output current (-12V)
- 0.3 A
- Max output current (+5Vsb)
- 3 A
Ports & interfaces
- Motherboard power connector
- 20+4 pin ATX
- Motherboard power cable length
- 550 mm
- Number of SATA power connectors
- 7
- Number of PATA power connectors
- 2
- SATA power cable length
- 690 mm
- EPS power connector (4+4 pin)
- Kyllä
- PCI Express power connectors (6+2 pin)
- 2
- PCI Express power cable length
- 670 mm
- CPU power connector (4+4 pin)
- Kyllä
- ATX power connector (20+4 pin)
- Kyllä
- Floppy drive power connector
- 1
- Floppy disk drive connector
- Kyllä
- Cabling type
- Non-Modular
Performance
- Purpose
- PC
- Power supply unit (PSU) form factor
- ATX
- 80 PLUS certification
- 80 PLUS Bronze
- ATX version
- 2.31
- EPS version
- 2.92
- Bearing technology
- Sleeve
- Mean time between failures (MTBF)
- 100000 h
Design
- Product colour
- Black
- Cooling type
- Active
- Fan diameter
- 120 mm
- Number of fans
- 1 fan(s)
- Fan location
- Top
- On/off switch
- Kyllä
Packaging content
- Cables included
- AC
Weight & dimensions
- Width
- 150 mm
- Depth
- 125 mm
- Height
- 86 mm
Logistics data
- Harmonized System (HS) code
- 84733020
Other features
- EPS cable length
- 600 mm
- Screws included
- Kyllä
- Warranty card
- Kyllä
- Power plug type
- Type F (CEE 7/4)
