Seasonic PRIME-TX-850
Tuotetiedot
Tuote
- Valmistaja
- Seasonic
- Tuotenimi
- PRIME-TX-850
- Julkaisupäivä
- 31.08.2019
- Valmistajan linkki
- https://seasonic.com/prime-tx
Tuotekoodit
- Valmistajan tuotekoodit
- PRIME TX-850
- PRIME-TX-850
- GTIN- / EAN-koodit
- 4711173874126

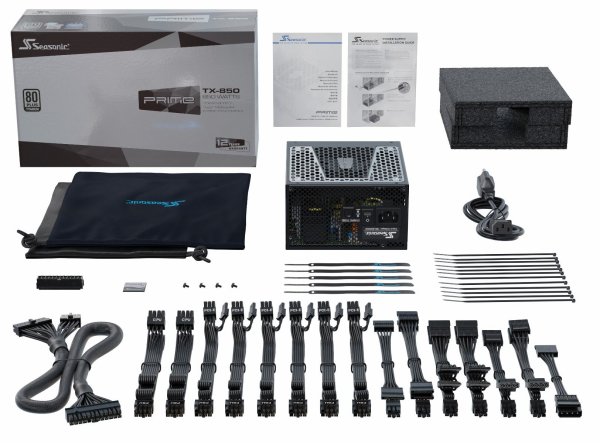

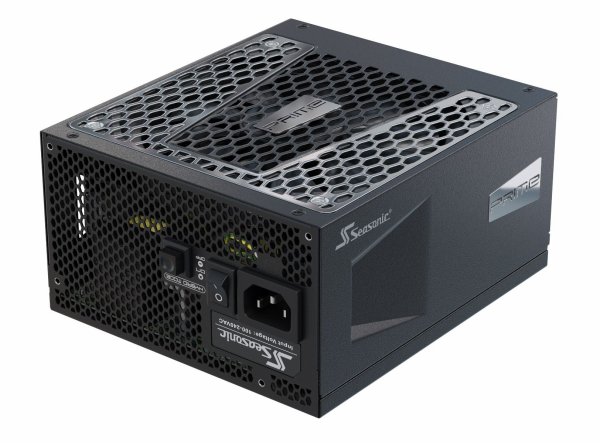

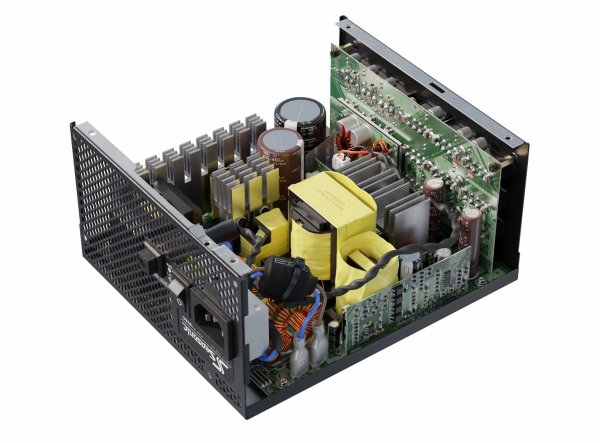

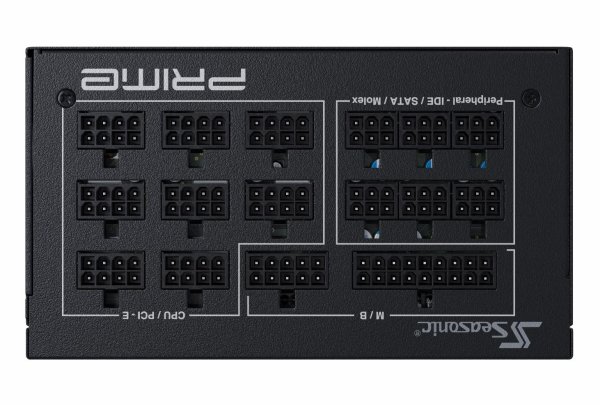

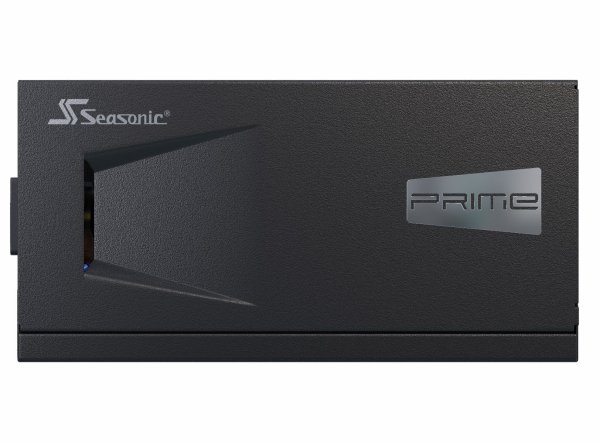

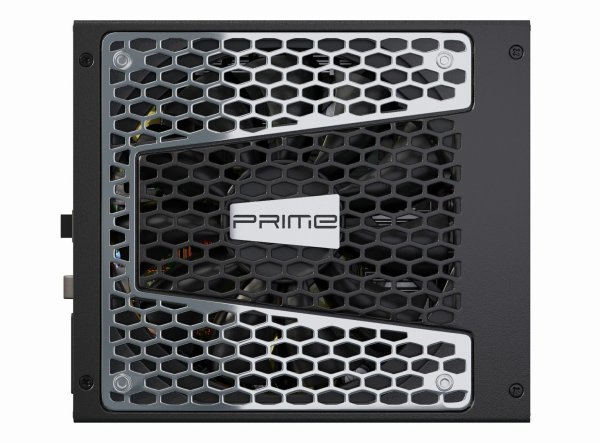

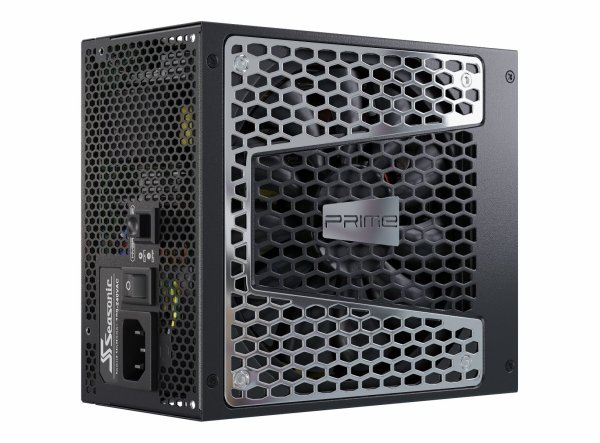

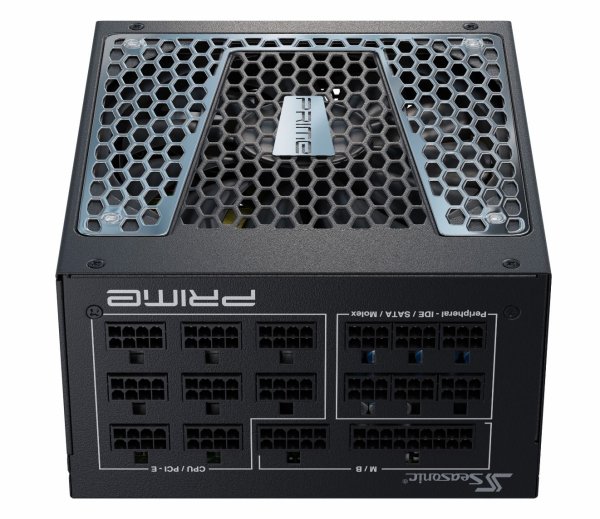

Tuotekuvat
Power
- Total power
- 850 W
- AC input voltage
- 100 - 240 V
- AC input frequency
- 50 - 60 Hz
- Input current
- 11 - 5.5 A
- Combined power (+3.3V)
- 100 W
- Combined power (+12V)
- 840 W
- Combined power (+5V)
- 100 W
- Combined power (-12V)
- 3.6 W
- Combined power (+5Vsb)
- 15 W
- Max output current (+3.3V)
- 20 A
- Max output current (+12V)
- 70 A
- Max output current (+5V)
- 20 A
- Max output current (-12V)
- 0.3 A
- Max output current (+5Vsb)
- 2.5 A
- Power protection features
- Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Ports & interfaces
- Motherboard power connector
- 20+4 pin ATX
- Motherboard power cable length
- 610 mm
- Number of SATA power connectors
- 14
- SATA power cable length
- 450,570,700,760,800,810 mm
- Peripheral (Molex) power connectors (4-pin)
- 5
- Peripheral (Molex) power cable length
- 470,690 mm
- PCI Express power connectors (6+2 pin)
- 6
- PCI Express power cable length
- 750 mm
- CPU power connector (4+4 pin)
- Kyllä
- CPU power cable length
- 650 mm
- ATX power connector (20+4 pin)
- Kyllä
- Floppy drive power connector
- 1
- Floppy disk drive connector
- Kyllä
- PCI Express connector
- Kyllä
- Cabling type
- Fully-Modular
Performance
- Purpose
- PC
- Power supply unit (PSU) form factor
- ATX
- 80 PLUS certification
- 80 PLUS Titanium
- Bearing technology
- FDB
- Mean time between failures (MTBF)
- 150000 h
Design
- Product colour
- Black
- Cooling type
- Active
- Fan diameter
- 135 mm
- Number of fans
- 1 fan(s)
- Fan location
- Top
- On/off switch
- Kyllä
Operational conditions
- Operating temperature (T-T)
- 0 - 50 °C
Packaging content
- Cables included
- AC
Certificates
- Compliance certificates
- RoHS
- Certification
- cTUVus, TUV, CB, CCC, BSMI, EAC, CE WEEE, ErP Lot 6, REACH
Weight & dimensions
- Width
- 150 mm
- Depth
- 170 mm
- Height
- 86 mm
Packaging data
- Manual
- Kyllä
- Package type
- Box
Technical details
- Sustainability certificates
- ENERGY STAR
Logistics data
- Harmonized System (HS) code
- 84733020
Other features
- Screws included
- Kyllä
- Number of screws
- 4
- Cable ties included
- Kyllä
