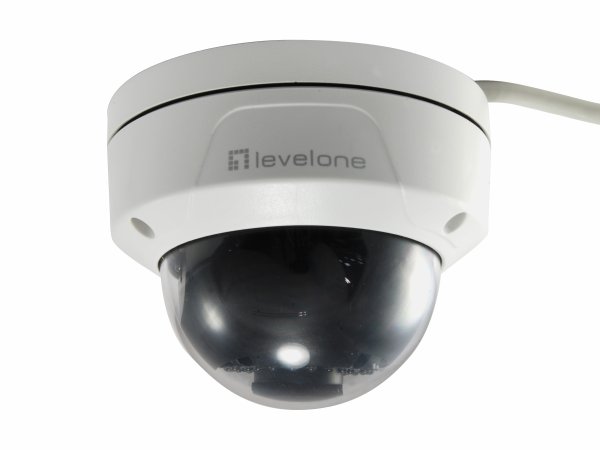

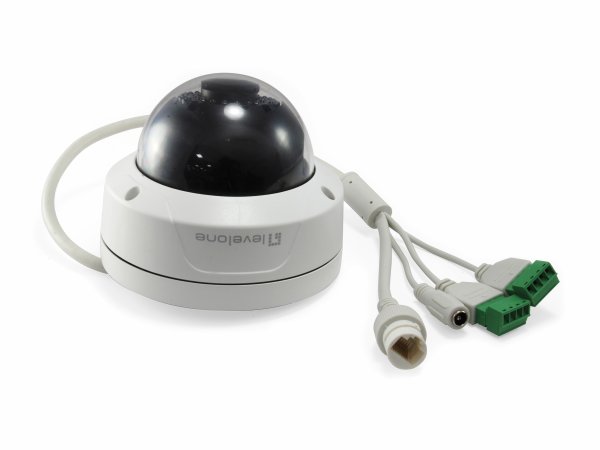

LevelOne FCS-3402

Tuote

Valmistaja

LevelOne

Tuotenimi

FCS-3402

Valmistajan linkki

http://global.level1.com/IP-Cameras/FCS-3402/p-4213.htm

Tuotekoodit

Valmistajan tuotekoodit

• FCS-3402

GTIN- / EAN-koodit

• 4015867207697
• 4015867231289

Tuotekuvat

Performance

Type

IP security camera

Placement supported

Indoor & outdoor

Connectivity technology

Wired

Day/night mode

Kyllä

Infrared (IR) cut-off filter

Kyllä

Certification

CE, FCC

Design

Form factor

Dome

Mounting type

Ceiling/wall

Product colour

White

LED indicators

Power

Protection features

Dust resistant, Heat resistant, Rain proof, Snow resistant, Vandal proof

International Protection (IP) code

IP67

IK code

IK10

Weatherproof

Kyllä

Country of origin

China

Camera

Minimum illumination

0 lx

Field of view (FOV) angle

86 °

Lens viewing angle, vertical

46 °

Lens viewing angle, diagonal

102 °

Camera shutter speed

1/3 - 1/100000 s

Image sensor

Sensor type

CMOS

Optical sensor size

1/2.8 "

Progressive scan

Kyllä

Lens system

Number of lenses

1

Zoom capability

Kyllä

Digital zoom

8 x

Focus adjustment

2.0

Fixed focal length

4 mm

Night vision

Night vision

Kyllä

Night vision distance

30 m

LED type

IR

Infra-red wavelength

850 nm

Video

Maximum resolution

1920 x 1080 pixels

Total megapixels

2 MP

Video formats supported

H.264, H.265, M-JPEG

Supported graphics resolutions

320 x 240, 640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)

Frame rate

30 fps

Noise reduction

Kyllä

Noise reduction technology

3D noise reduction

Image quality adjustment

Brightness, Contrast, Saturation, Sharpness

Privacy masking

Kyllä

Back Light Compensation (BLC)

Kyllä

Region of Interest (ROI) encoding

Kyllä

Network

Ethernet LAN

Kyllä

Wi-Fi

Ei

Bluetooth

Ei

Ethernet interface type

Fast Ethernet

Networking standards

IEEE 802.1x, IEEE 802.3, IEEE 802.3af, IEEE 802.3u

Supported network protocols

TCP(IPv6/v4), UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, DNS, DDNS, NTP, ICMP, ARP, IGMP,SMTP,FTP,SAMBA UPnP, SNMP, Bonjour

Number of users

32 user(s)

Storage

Built-in HDD

Ei

Card reader integrated

Kyllä

Compatible memory cards

MicroSDHC, MicroSDXC

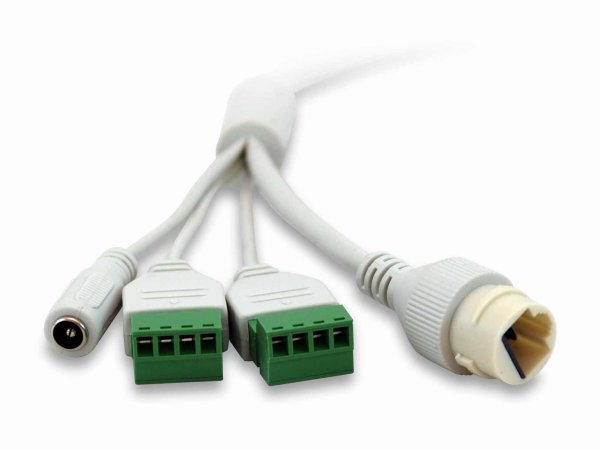

Ports & interfaces

Ethernet LAN (RJ-45) ports

1

Microphone in

Kyllä

Headphone outputs

1

Terminal block port

Kyllä

DC-in jack

Kyllä

Security

Password protection

Kyllä

Video motion detection

Kyllä

Active tampering alarm

Kyllä

Anti-flicker

Kyllä

Heartbeat

Kyllä

Mirror

Kyllä

Digital watermark

Kyllä

Management features

Reset button

Kyllä

Power

Power source type

DC, PoE

Power consumption

400 mA

Power consumption (max)

5 W

Power consumption (Power over Ethernet (PoE))

7 W

Operational conditions

Operating temperature (T-T)

-30 - 60 °C

Operating relative humidity (H-H)

0 - 95 %

System requirements

Windows operating systems supported

Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64

Mobile operating systems supported

Android, iOS

Weight & dimensions

Depth

82 mm

Diameter

111 mm

Weight

500 g

Packaging data

Package width

134 mm

Package depth

111 mm

Package height

108 mm

Package weight

502 g

Package type

Box

Sustainability

Compliance certificates

RoHS

Packaging content

Number of cameras

1

Screws included

Kyllä

Resource CD

Kyllä

Other features

Browser supported

IIE7+, Chrome18-42, Firefox5.0+, Safari5.02+

Logistics data

Harmonized System (HS) code

85258900

Master (outer) case width

111 mm

Master (outer) case length

111 mm

Master (outer) case height

111 mm

Master (outer) case gross weight

608 g

Products per master (outer) case

24 pc(s)
