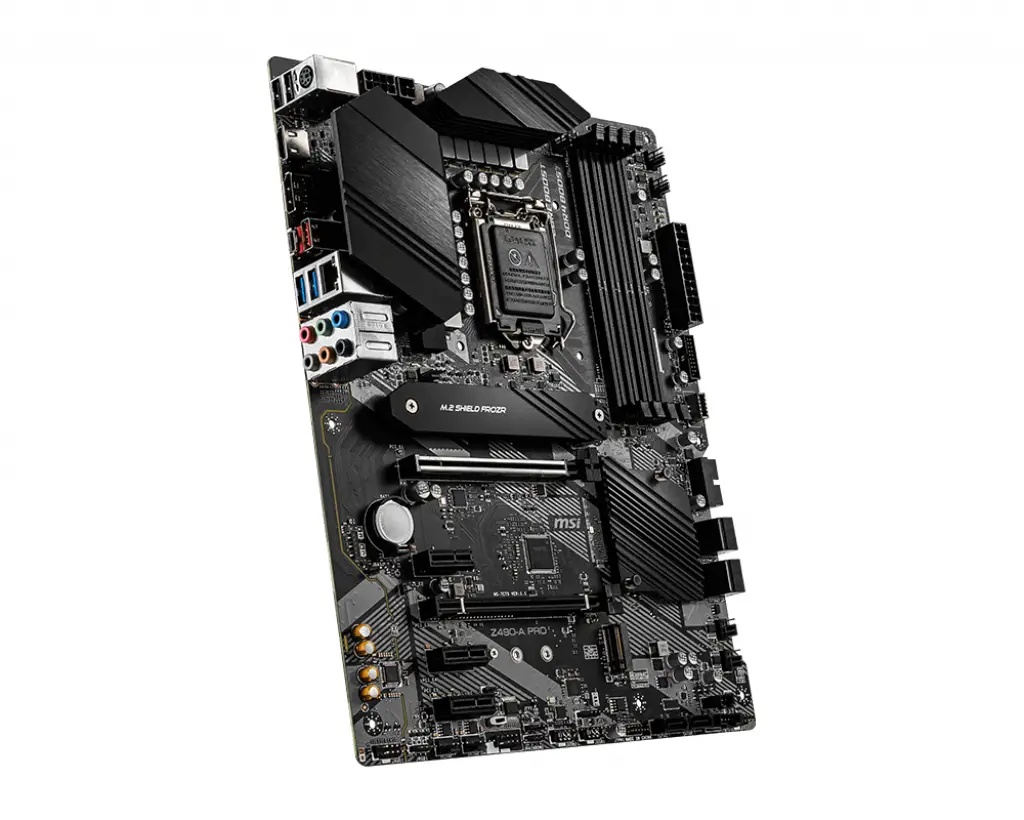

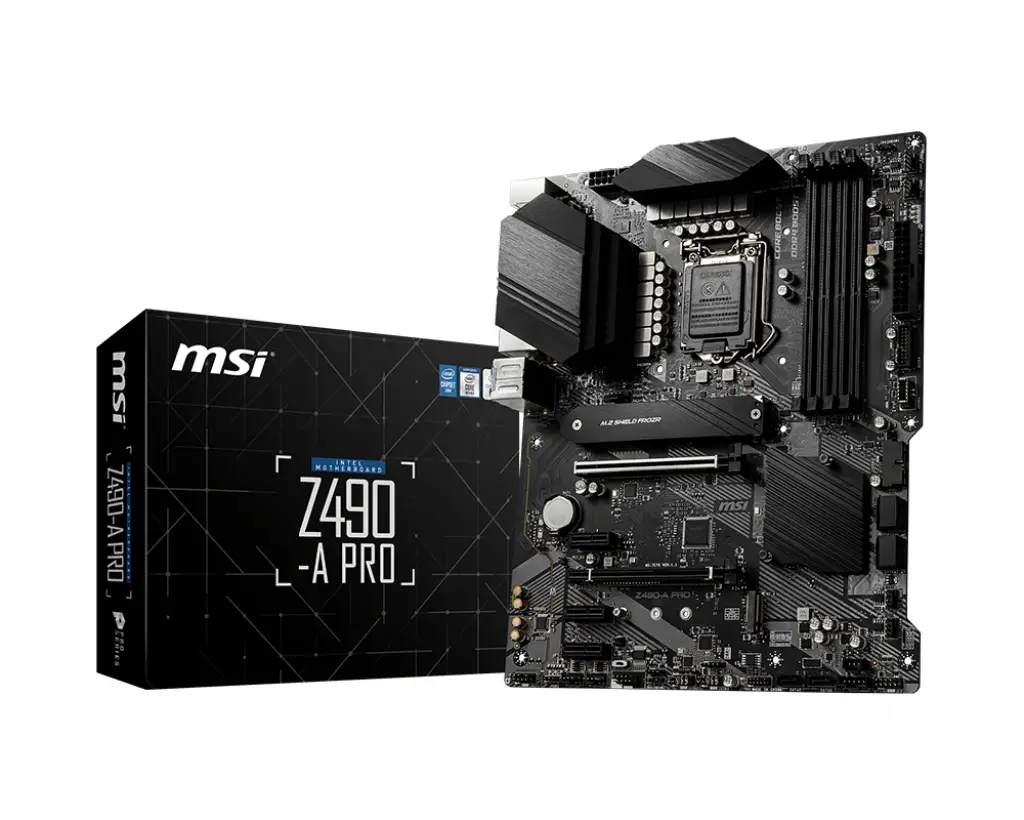

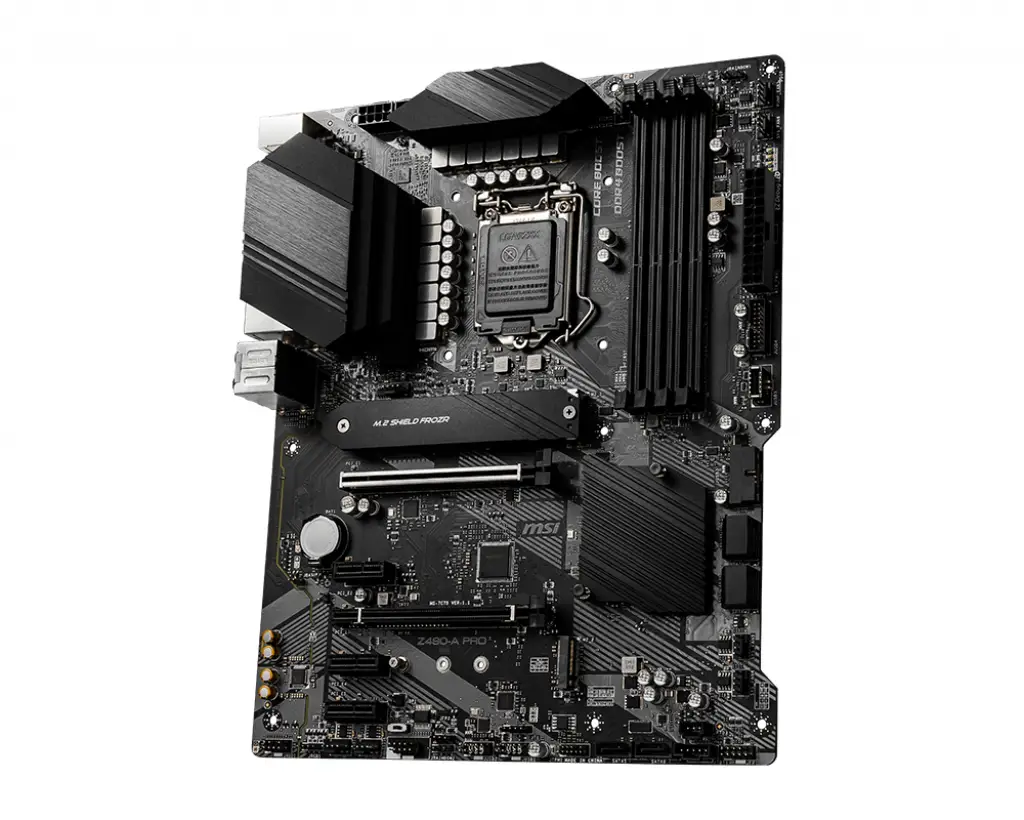

MSI Z490-A PRO

Tuote

Valmistaja

MSI

Tuotenimi

Z490-A PRO

Julkaisupäivä

22.05.2020

Valmistajan linkki

https://www.msi.com/Motherboard/Z490-A-PRO/Overview

Tuotekoodit

Valmistajan tuotekoodit

• 4719072722340
• 7C75-003R
• Z490-A PRO
• Z490-APRO

GTIN- / EAN-koodit

• 4719072722340

Tuotekuvat

Processor

Processor manufacturer

Intel

Processor socket

LGA 1200 (Socket H5)

Compatible processor series

Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i9, Intel® Pentium®

Memory

Supported memory types

DDR4-SDRAM

Number of memory slots

4

Memory slots type

DIMM

Memory channels

Dual-channel

Non-ECC

Kyllä

Supported memory clock speeds

2133,2400,2666,2933,3000,3200,3300,3333,3400,3466,3600,3733,3866,4000,4133,4200,4266,4300,4400,4533,4600,4800 MHz

Maximum internal memory

128 GB

Unbuffered memory

Kyllä

Storage controllers

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

M.2, SATA III

RAID levels

0, 1, 5, 10

Graphics

Parallel processing technology support

Crossfire

DirectX version

12.0

Discrete graphics support

Kyllä

Internal I/O

USB 2.0 connectors

4

USB 3.2 Gen 1 (3.1 Gen 1) connectors

5

Number of SATA III connectors

6

Front panel audio connector

Kyllä

Front panel connector

Kyllä

ATX Power connector (24-pin)

Kyllä

Power fan connector

Kyllä

CPU fan connector

Kyllä

Chassis intrusion connector

Kyllä

TPM connector

Kyllä

Serial port headers

1

12V power connector

Kyllä

RGB LED pin header

Kyllä

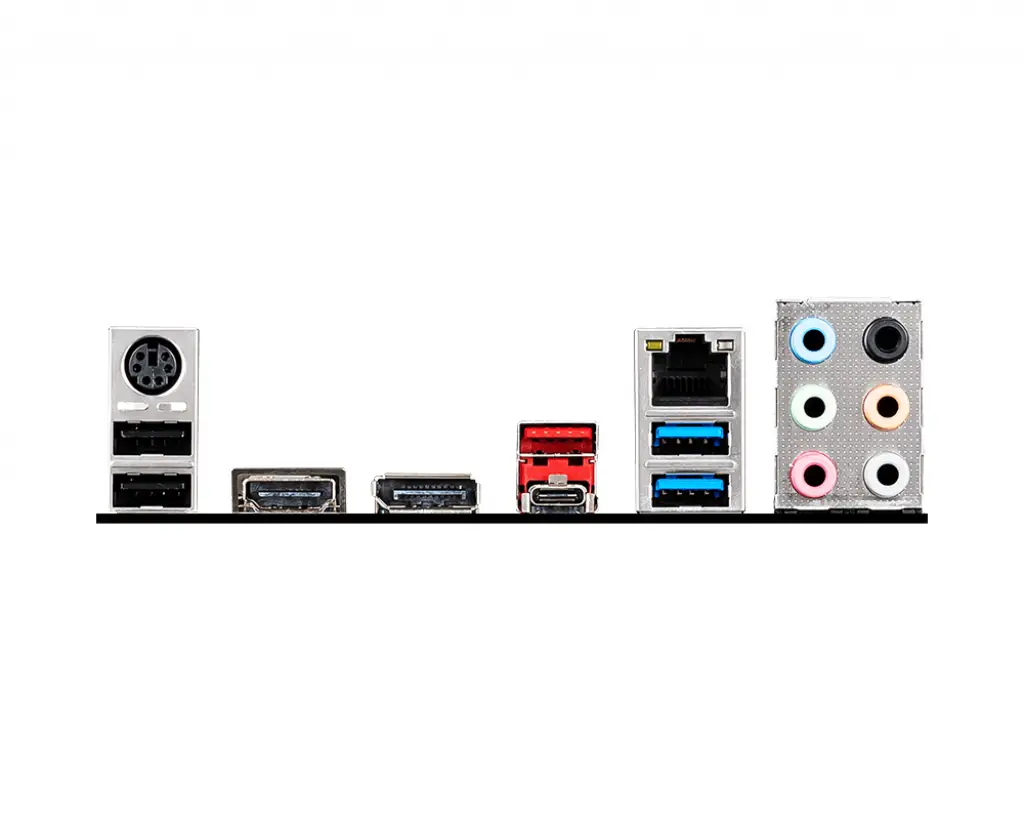

Rear panel I/O ports

USB 2.0 ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

Ethernet LAN (RJ-45) ports

1

PS/2 ports quantity

1

HDMI ports quantity

1

DisplayPorts quantity

1

Microphone in

Kyllä

Network

Ethernet LAN

Kyllä

Ethernet interface type

2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet

LAN controller

Realtek RTL8125B

Wi-Fi

Ei

Features

Component for

PC

Motherboard form factor

ATX

Motherboard chipset family

Intel

Motherboard chipset

Intel Z490

Audio chip

Realtek ALC892

Audio output channels

7.1 channels

Number of mounting holes

9

Windows operating systems supported

Windows 10 x64

Expansion slots

PCI Express x1 (Gen 3.x) slots

3

PCI Express x16 (Gen 3.x) slots

2

Number of M.2 (M) slots

2

BIOS

Clear CMOS jumper

Kyllä

Logistics data

Harmonized System (HS) code

84733020

Weight & dimensions

Width

244 mm

Depth

305 mm

Packaging content

Cables included

SATA

Drivers included

Kyllä
