Thermaltake Toughpower PF1

Tuote

Valmistaja

Thermaltake

Tuotenimi

Toughpower PF1

Julkaisupäivä

16.01.2020

Tuotekoodit

Valmistajan tuotekoodit

• PS-TPD-0650FNFAPE-1

GTIN- / EAN-koodit

• 4713227525381

Tuotekuvat

Power

Total power

650 W

Peak power

780 W

AC input voltage

100 - 240 V

AC input frequency

50 - 60 Hz

Input current

10 A

Power Factor Correction (PFC) type

Active

Combined power (+3.3V)

100 W

Combined power (+12V)

648 W

Combined power (+5V)

100 W

Combined power (-12V)

3.6 W

Combined power (+5Vsb)

12.5 W

Max output current (+3.3V)

20 A

Max output current (+12V)

54 A

Max output current (+5V)

20 A

Max output current (-12V)

0.3 A

Max output current (+5Vsb)

2.5 A

Hold time

16 ms

Power protection features

Over current, Over voltage

Ports & interfaces

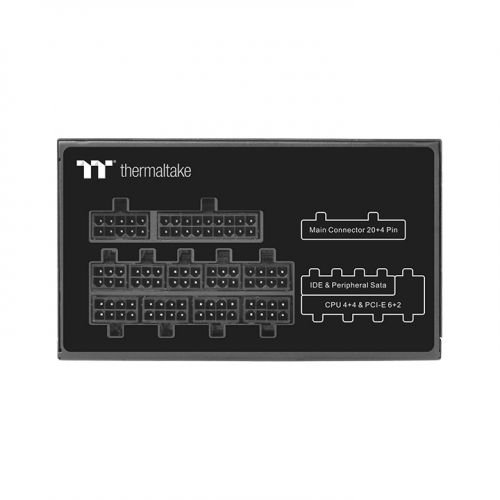

Motherboard power connector

24-pin ATX

Motherboard power cable length

600 mm

Number of SATA power connectors

3

SATA power cable length

150,500 mm

Peripheral (Molex) power connectors (4-pin)

4

Peripheral (Molex) power cable length

150,500 mm

PCI Express power connectors (6-pin)

2

PCI Express power connectors (6+2 pin)

4

CPU power connector (4+4 pin)

Kyllä

CPU power cable length

650 mm

Floppy disk drive connector

Kyllä

Floppy disk drive cable length

150 mm

Cabling type

Fully-Modular

Performance

Power supply unit (PSU) form factor

ATX

80 PLUS certification

80 PLUS Platinum

Silent mode

Kyllä

Noise level

27.8 dB

Bearing technology

HDB

Mean time between failures (MTBF)

120000 h

Design

Product colour

Black

Fan diameter

120 mm

Number of fans

1 fan(s)

Fan location

Top

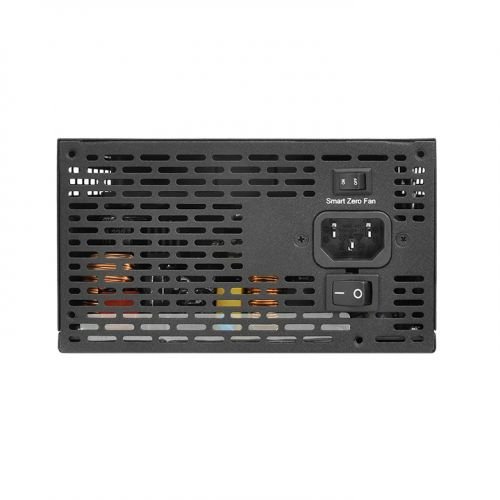

On/off switch

Kyllä

Operational conditions

Operating temperature (T-T)

5 - 50 °C

Storage temperature (T-T)

-40 - 55 °C

Operating relative humidity (H-H)

20 - 85 %

Storage relative humidity (H-H)

10 - 95 %

Packaging content

Cables included

AC, CPU, PCIe, Peripheral (Molex), SATA

Certificates

Certification

CE, UL, TÜV, FCC, CCC, EAC, S-Mark, BSMI

Weight & dimensions

Width

150 mm

Depth

140 mm

Height

86 mm

Logistics data

Harmonized System (HS) code

84733020
