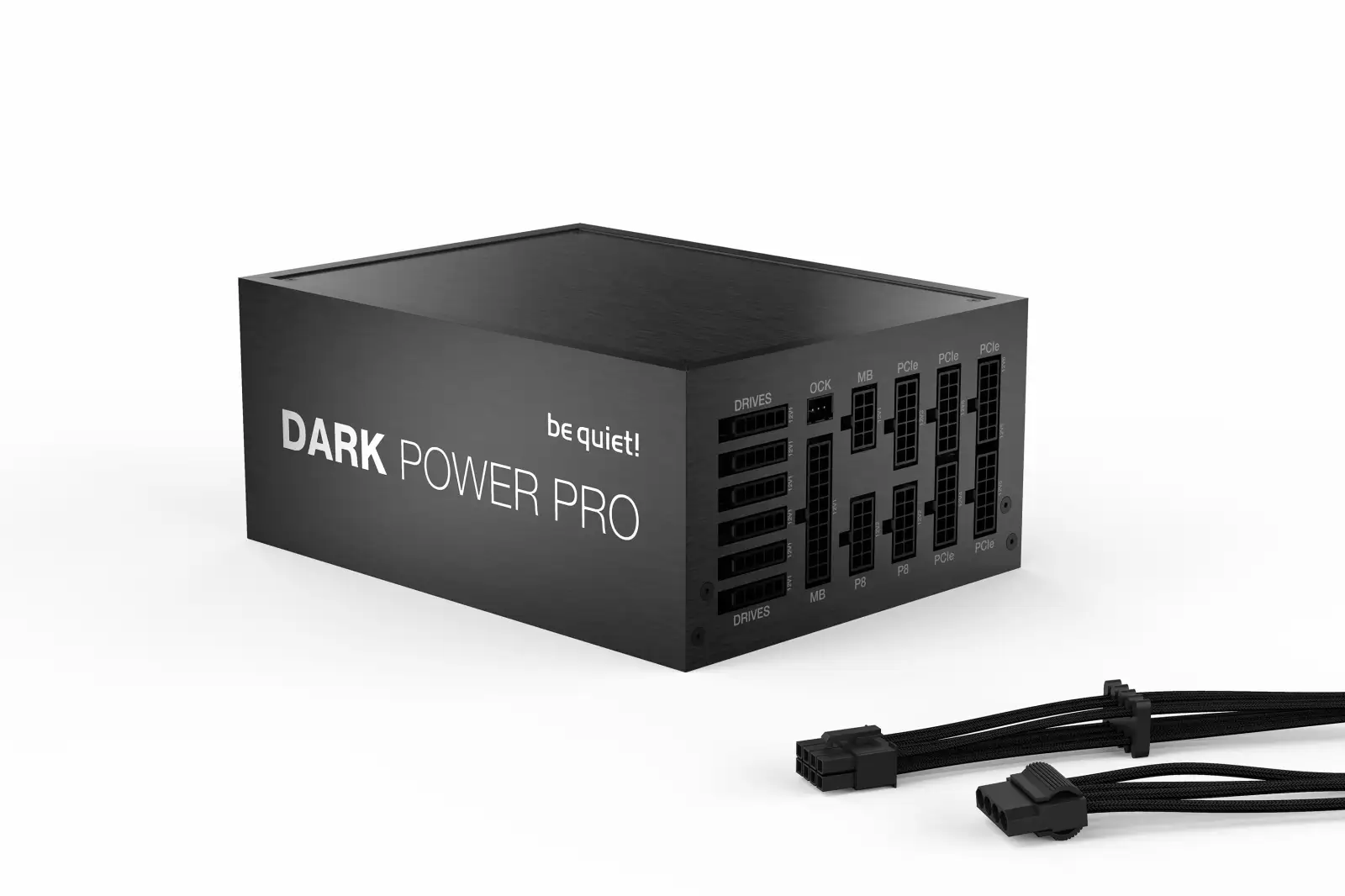

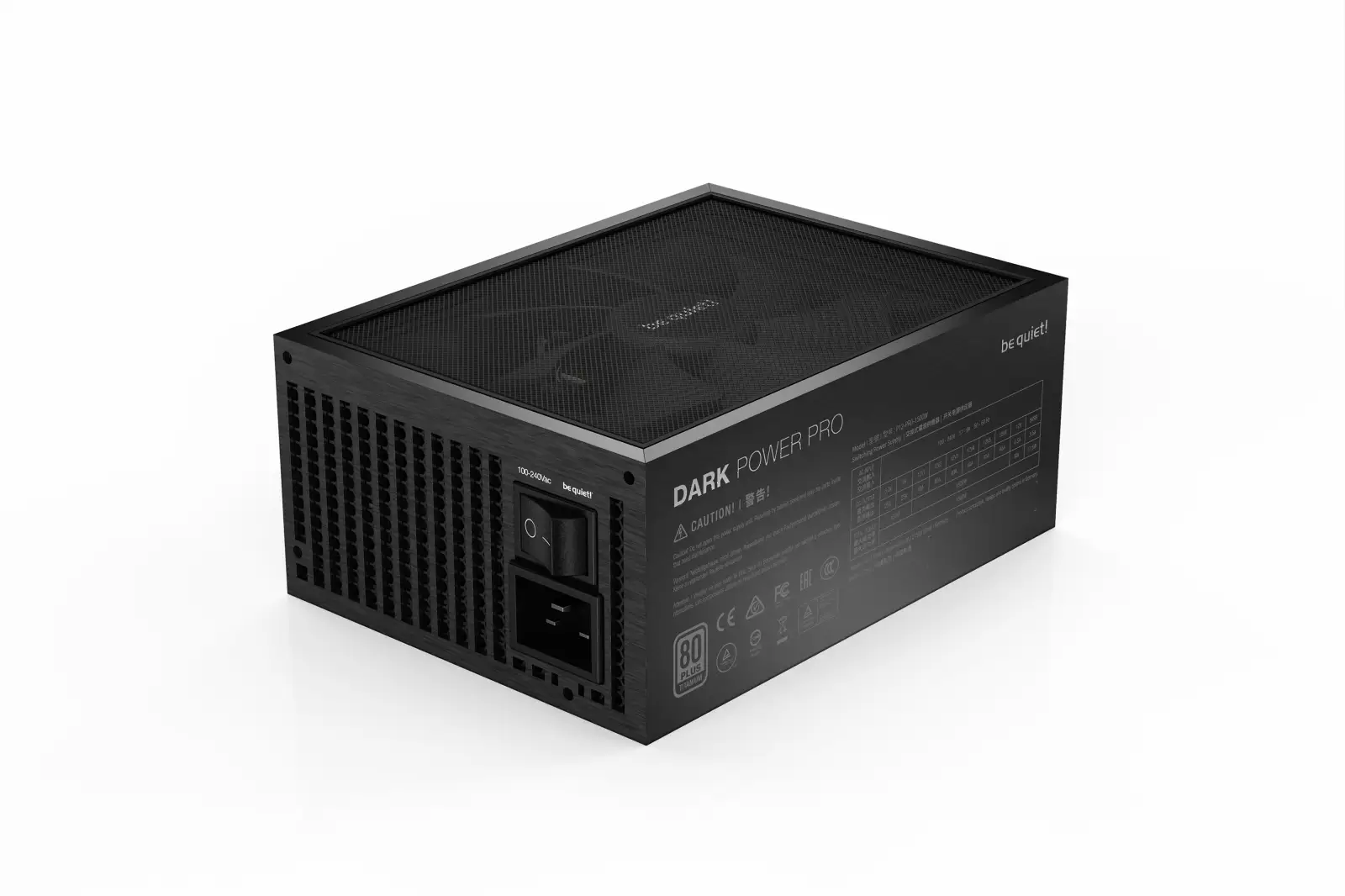

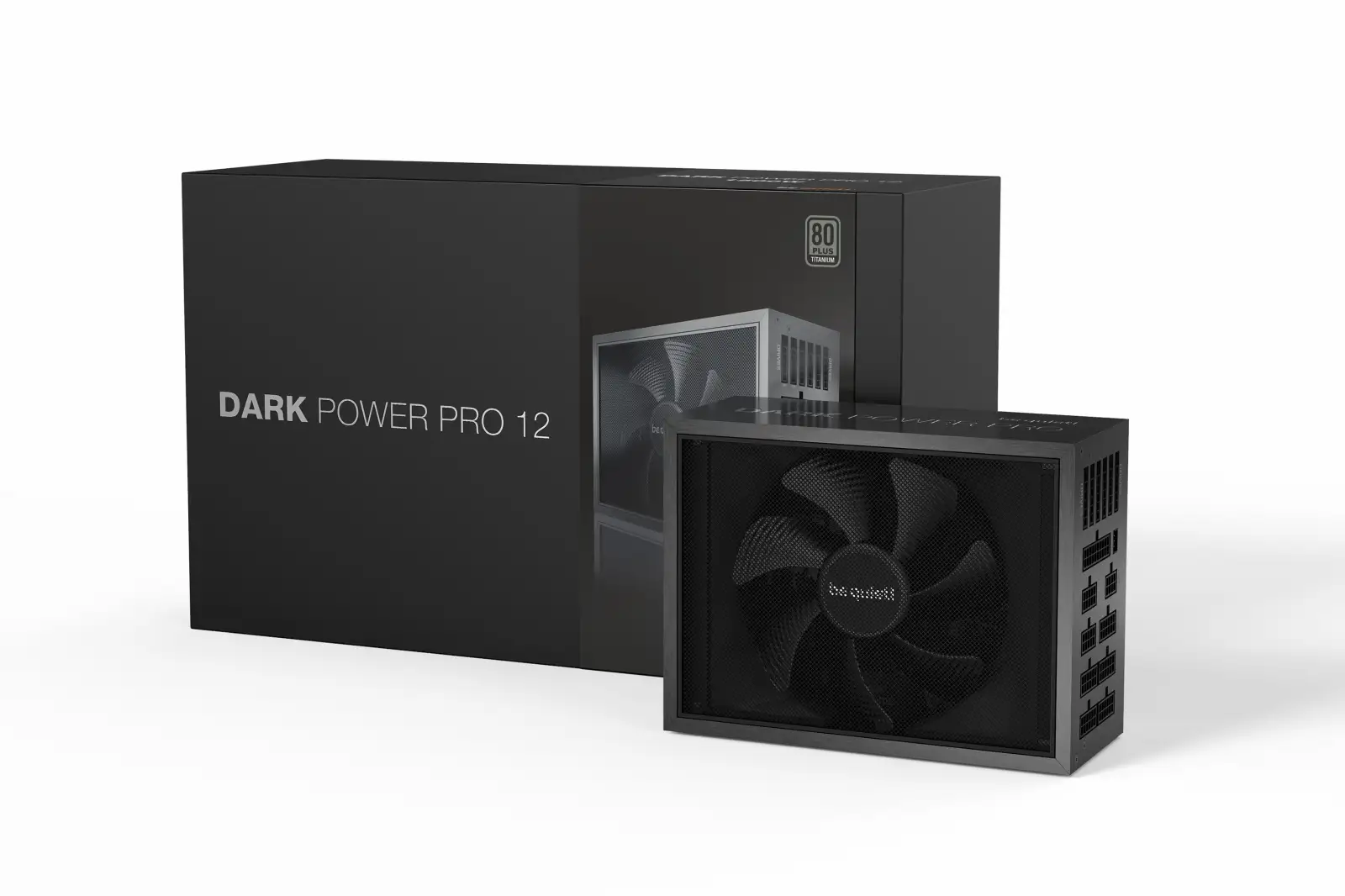

Be-Quiet Dark Power Pro 12 1500W

Tuote

Valmistaja

Be-Quiet

Tuotenimi

Dark Power Pro 12 1500W

Valmistajan linkki

https://www.bequiet.com/en/download/powersupply/1921?utm_sourc..

Tuotekoodit

Valmistajan tuotekoodit

• BN312

GTIN- / EAN-koodit

• 4260052187432

Tuotekuvat

Power

Total power

1500 W

Peak power

1600 W

AC input voltage

100 - 240 V

AC input frequency

50 - 60 Hz

Input current

17 - 9 A

Maximum input current (@110V)

17 A

Maximum input current (@220V)

9 A

Power factor

0.99

Power Factor Correction (PFC) type

Active

Combined power (+3.3V)

150 W

Combined power (+12V)

1500 W

Combined power (+5V)

150 W

Combined power (-12V)

6 W

Combined power (+5Vsb)

17.5 W

Max output current (+3.3V)

25 A

Max output current (+12V)

125 A

Max output current (+12V1)

40 A

Max output current (+12V2)

40 A

Max output current (+12V3)

40 A

Max output current (+12V4)

40 A

Max output current (+5V)

25 A

Max output current (-12V)

0.5 A

Max output current (+5Vsb)

3.5 A

Hold time

18.82 ms

Efficiency

94.9 %

Power protection features

Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

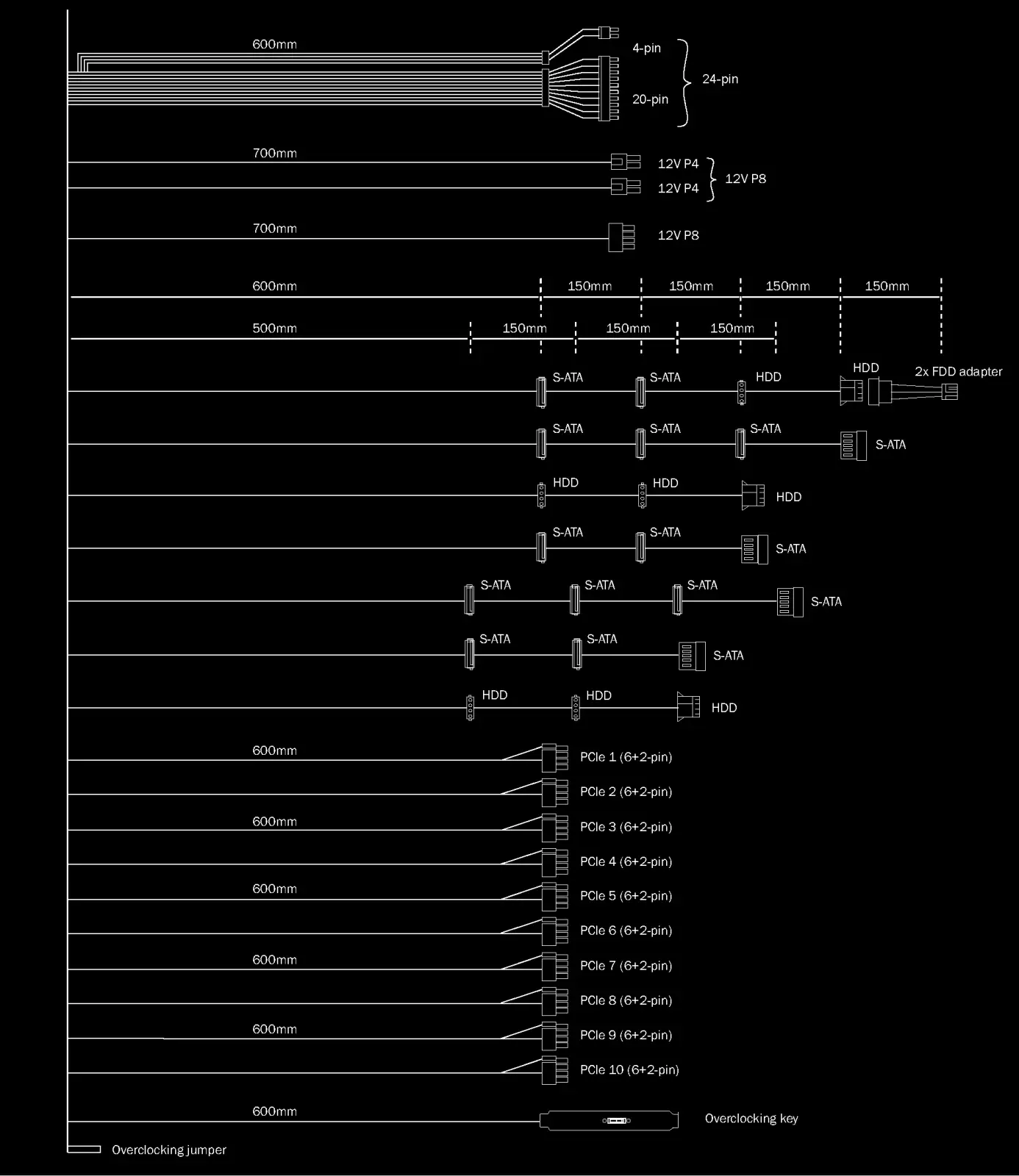

Ports & interfaces

Motherboard power connector

20+4 pin ATX

Motherboard power cable length

600 mm

Number of SATA power connectors

16

SATA power cable length

500,550,600,650,750,800,900 mm

Peripheral (Molex) power connectors (4-pin)

8

Peripheral (Molex) power cable length

600,750,900 mm

EPS power connector (8-pin)

Kyllä

EPS power connector (4+4 pin)

Kyllä

PCI Express power connectors (6+2 pin)

10

PCI Express power cable length

600 mm

ATX power connector (20+4 pin)

Kyllä

Floppy drive power connector

2

Floppy disk drive connector

Kyllä

Floppy disk drive cable length

1200 mm

PCI Express connector

Kyllä

Cabling type

Fully-Modular

Performance

Purpose

PC

Power supply unit (PSU) form factor

ATX

80 PLUS certification

80 PLUS Titanium

ATX version

2.51

EPS version

2.92

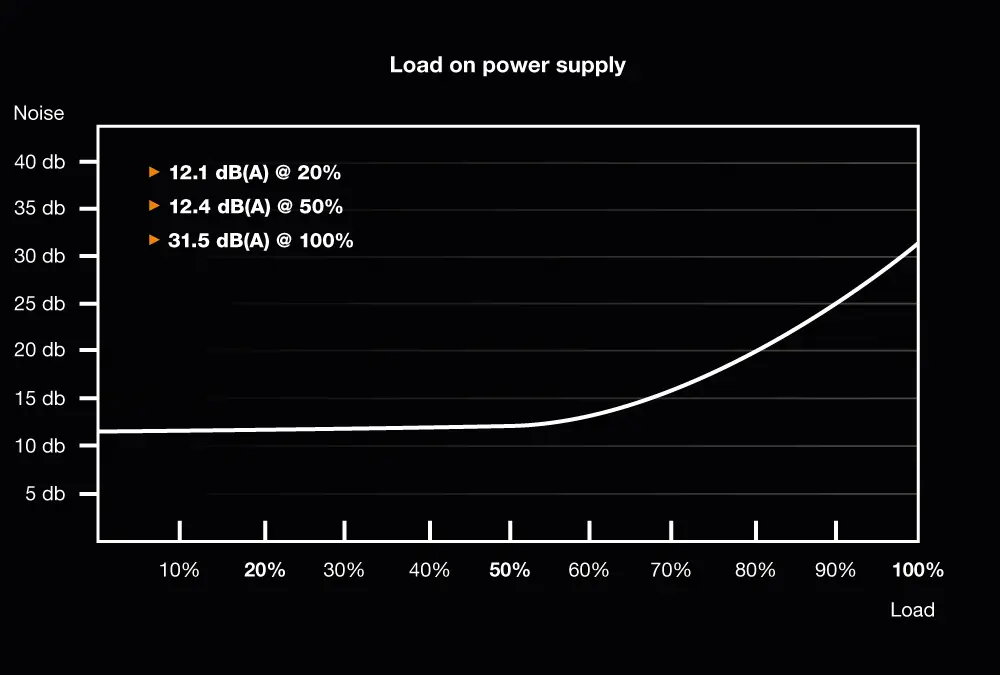

Noise level

31.5 dB

Bearing technology

FDB

Mean time between failures (MTBF)

100000 h

Design

Product colour

Black

Cooling type

Active

Fan diameter

135 mm

Number of fans

1 fan(s)

Illumination

Kyllä

On/off switch

Kyllä

Operational conditions

Operating temperature (T-T)

0 - 50 °C

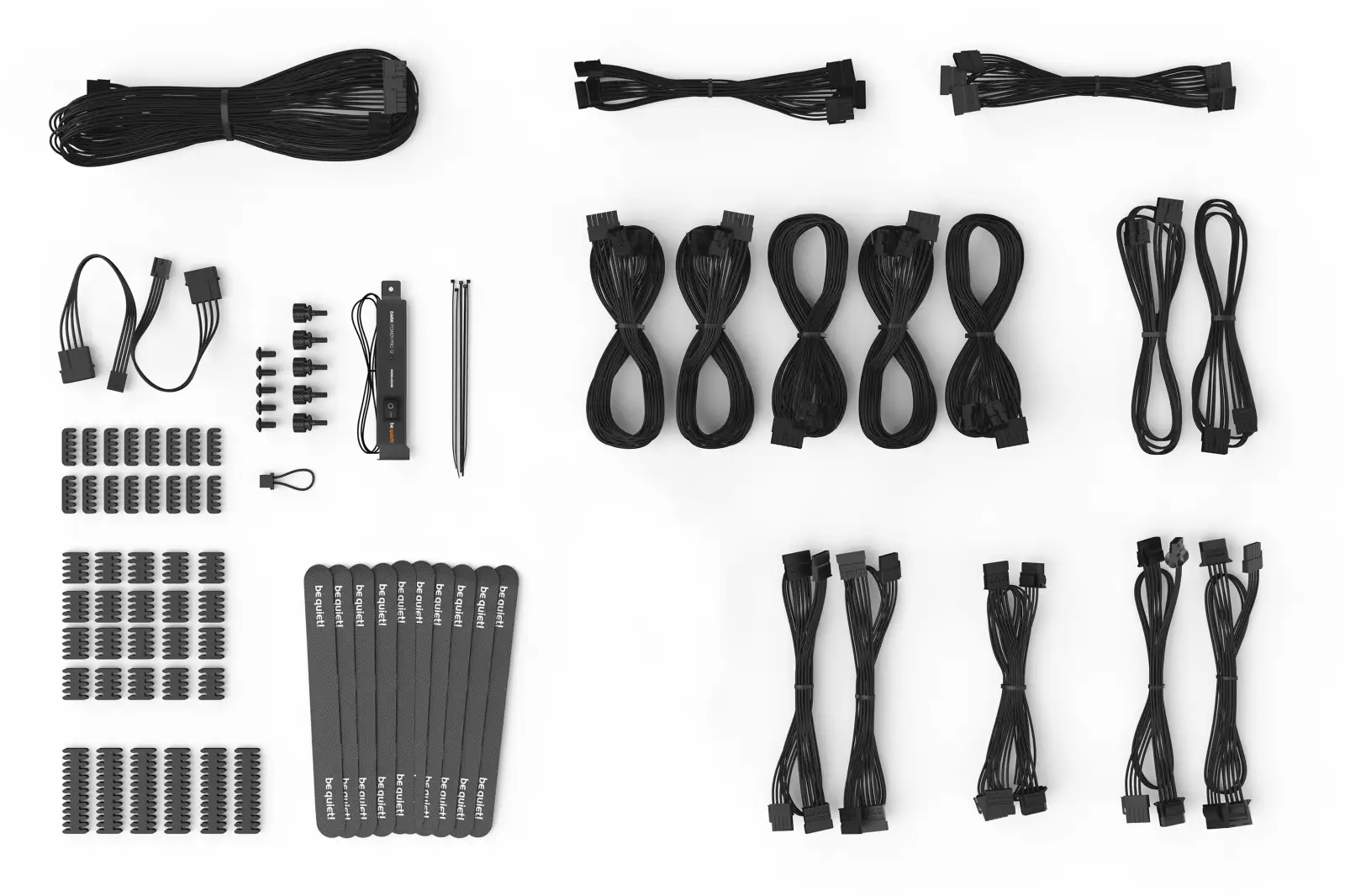

Packaging content

Cables included

AC, CPU, PCIe, SATA

Certificates

Compliance certificates

RoHS

Certification

ErP, WEEE

Weight & dimensions

Width

150 mm

Depth

200 mm

Height

86 mm

Weight

2440 g

Packaging data

Package width

253 mm

Package depth

417 mm

Package height

152 mm

Package weight

6900 g

Package type

Box

Technical details

Sustainability certificates

ENERGY STAR

Logistics data

Shipping (inner) case length

440 mm

Shipping (inner) case width

325 mm

Shipping (inner) case height

283 mm

Products per shipping (inner) case

2 pc(s)

Shipping (inner) case gross weight

14600 g

Harmonized System (HS) code

84733020
