Ominaisuudet
- 80 PLUS certification
- 80 PLUS Bronze
- Hyötysuhde
- 88 %
Arvostelut
Arvostele tuoteAlin hinta 30 päivän aikana
59,50 €
± 0 %
Hinnassa ei muutosta.
HintahistoriaTuotetiedot
Tuote
- Valmistaja
- Cooler Master
- Tuotenimi
- MWE 650 Bronze 230V V2
- Julkaisupäivä
- 15.07.2020
- Valmistajan linkki
- https://www.coolermaster.com/catalog/power-supplies/mwe-series..
Tuotekoodit
- Valmistajan tuotekoodit
- MPE-6501-ACABW-BEU
- GTIN- / EAN-koodit
- 0884102076701
- 4719512104392

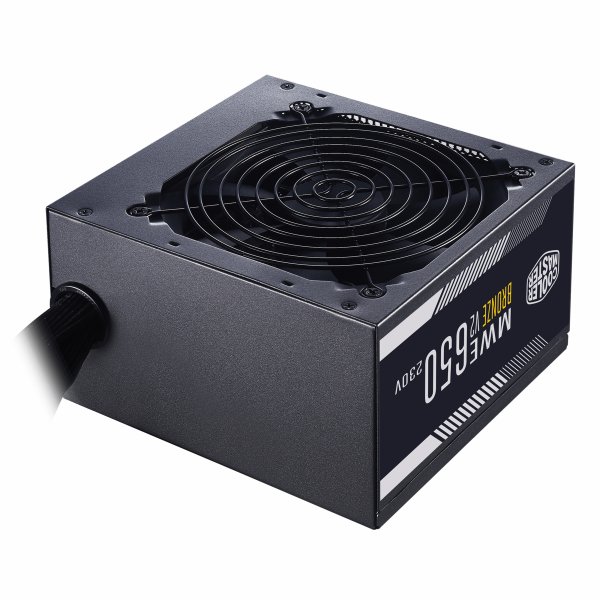

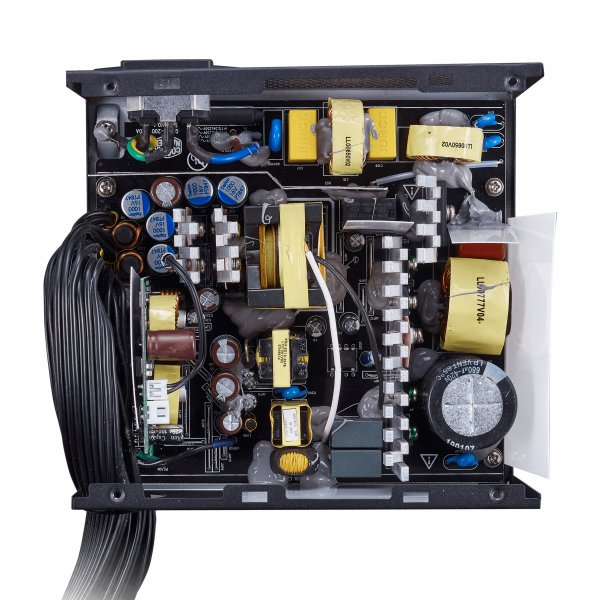

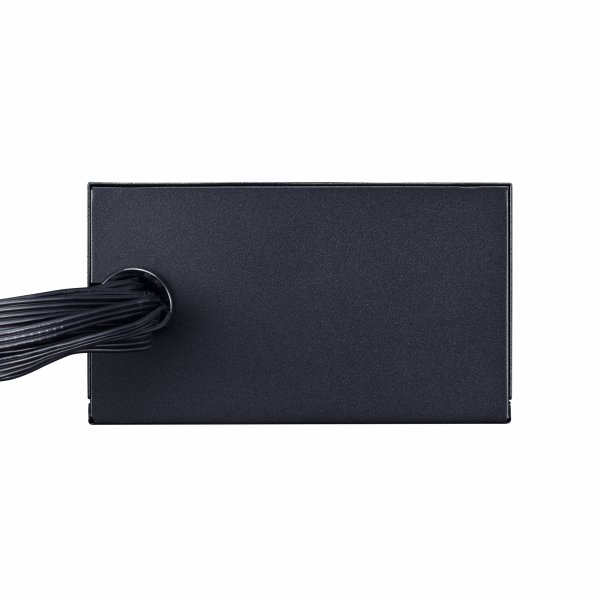

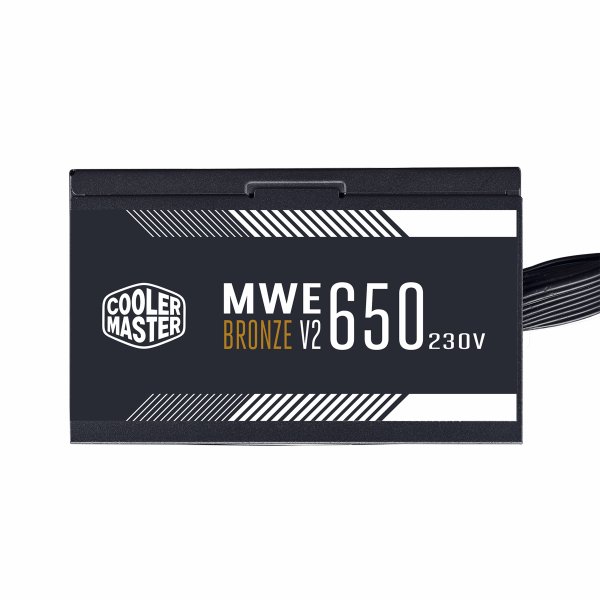

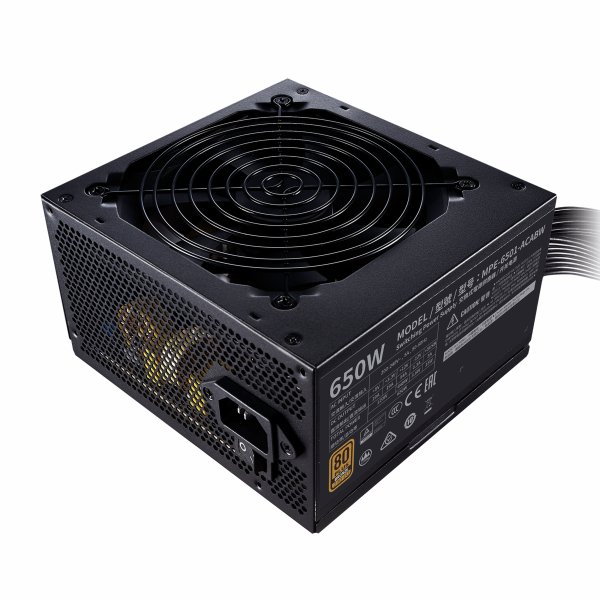

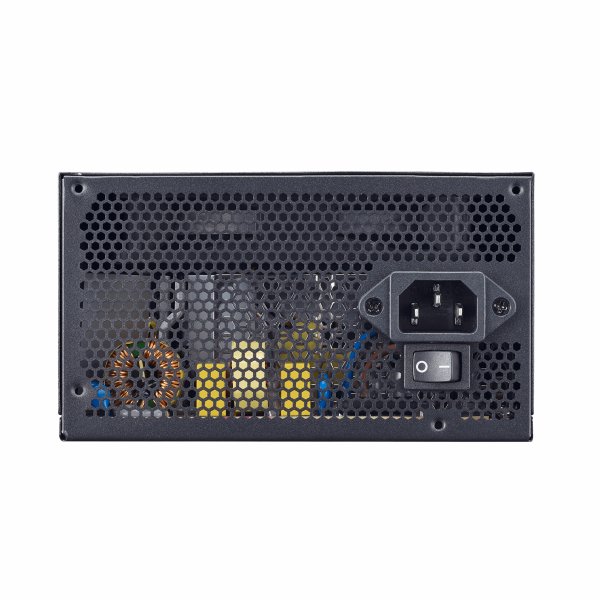

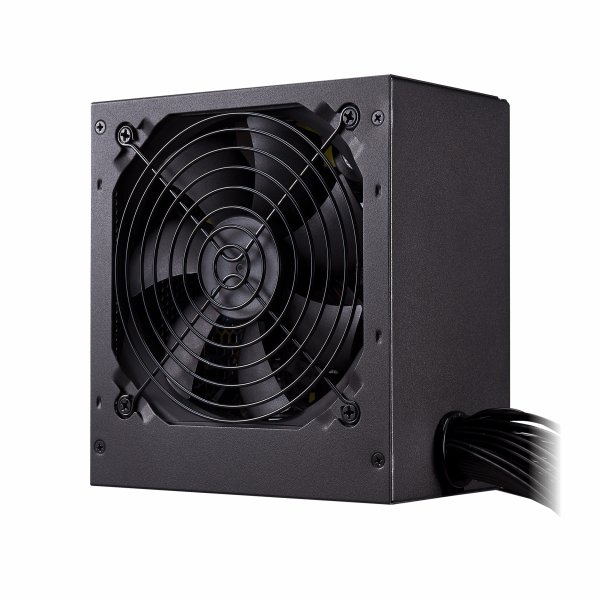

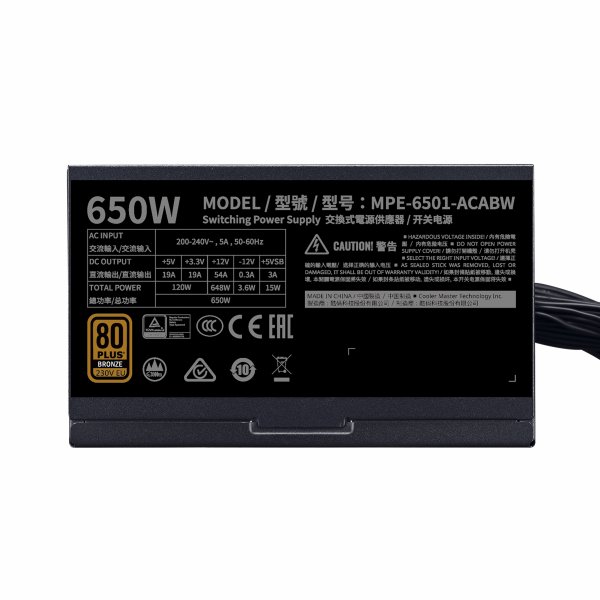

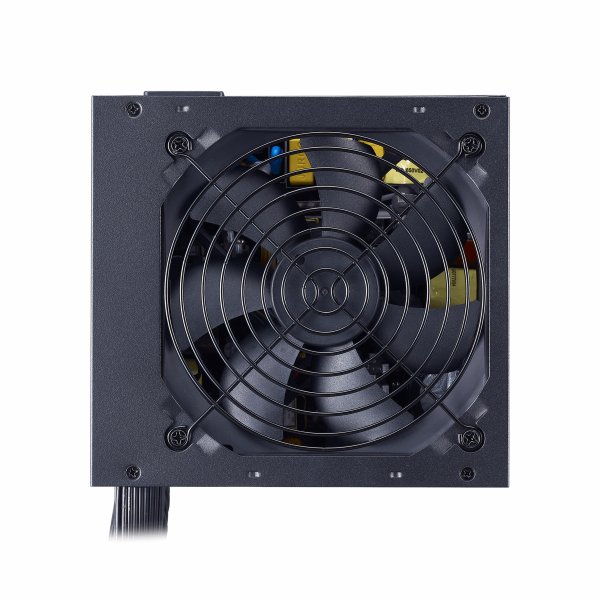

Tuotekuvat
Power
- Total power
- 650 W
- AC input voltage
- 220 - 240 V
- AC input frequency
- 50 - 60 Hz
- Input current
- 5 A
- Power Factor Correction (PFC) type
- Active
- Combined power (+3.3V)
- 120 W
- Combined power (+12V)
- 648 W
- Combined power (+5V)
- 120 W
- Combined power (-12V)
- 3.6 W
- Combined power (+5Vsb)
- 15 W
- Max output current (+3.3V)
- 19 A
- Max output current (+12V)
- 54 A
- Max output current (+5V)
- 19 A
- Max output current (-12V)
- 0.3 A
- Max output current (+5Vsb)
- 3 A
- Hold time
- 14 ms
- Efficiency
- 88 %
- Power Good signal delay range
- 100 - 500 ms
- Power protection features
- Over power, Over voltage, Short circuit, Under voltage
Ports & interfaces
- Motherboard power connector
- 24-pin ATX
- Number of SATA power connectors
- 6
- Peripheral (Molex) power connectors (4-pin)
- 3
- EPS power connector (8-pin)
- Kyllä
- EPS power connector (4+4 pin)
- Kyllä
- PCI Express power connectors (6+2 pin)
- 4
- ATX Power connector (24-pin)
- Kyllä
- Cabling type
- Non-Modular
Performance
- Purpose
- PC
- Power supply unit (PSU) form factor
- ATX
- 80 PLUS certification
- 80 PLUS Bronze
- ATX version
- 2.52
- Bearing technology
- HDB
- Mean time between failures (MTBF)
- 100000 h
Design
- Product colour
- Black
- Cooling type
- Active
- Fan diameter
- 120 mm
- Number of fans
- 1 fan(s)
- On/off switch
- Kyllä
Certificates
- Certification
- CCC, CE, TUV-RH, RCM, EAC, cTUVus, FCC, BSMI, KC, CB
Weight & dimensions
- Width
- 150 mm
- Depth
- 140 mm
- Height
- 86 mm
- Weight
- 1272 g
Packaging data
- Package width
- 190 mm
- Package depth
- 245 mm
- Package height
- 110 mm
- Package weight
- 1670 g
Logistics data
- Harmonized System (HS) code
- 84733020
Other features
- Noise level (quiet mode, 50%)
- 26.5 dB
- Noise level (full-load mode, 100%)
- 42.5 dB
