Check Point Software Technologies CPAP-SG16200-PLUS-SNBT

Tuote

Valmistaja

Check Point Software Technologies

Tuotenimi

CPAP-SG16200-PLUS-SNBT

Valmistajan linkki

https://www.checkpoint.com/

Tuotekoodit

Valmistajan tuotekoodit

• CPAP-SG16200-PLUS-SNBT

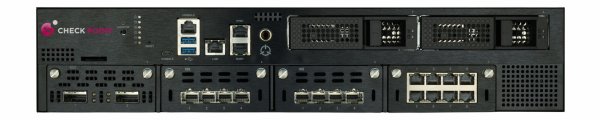

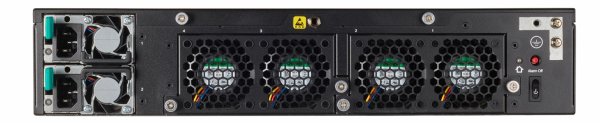

Tuotekuvat

Data transmission

Firewall throughput

78.3 Gbit/s

Firewall (UDP 1518) throughput

159 Gbit/s

VPN throughput

20 Gbit/s

Threat protection throughput

15 Mbit/s

Maximum firewall connections per second

435000

Performance

Internal memory

64000 MB

Heat dissipation

1573 BTU/h

Concurrent connections

32

Network

Networking standards

IEEE 802.3ad

Number of VLANs

1024

Multicast support

Kyllä

Security

Security algorithms

128-bit AES

Content filtering

URL Filtering

Protocols

Routing protocols

BGP, OSPFv2, OSPFv3, RIP, VRRP

Ports & interfaces

Connectivity technology

Wired

10G Ethernet (copper) ports quantity

8

Gigabit Ethernet (copper) ports quantity

10

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

Console port

RJ-45/USB Type-C

Number of console ports

2

Number of expansion slots

4

Storage

SSD capacity

960 GB

RAID support

Kyllä

Number of SSDs installed

2

Design

Rack mounting

Kyllä

Form factor

2U

Power

AC input voltage

100-240 V

AC input frequency

47/63 Hz

Power consumption (typical)

265 W

Power consumption (max)

461 W

Power supply

1300 W

Redundant power supply (RPS) support

Kyllä

Number of power supply units

2

Certificates

Compliance certificates

CB, CE, Federal Communications Commission (FCC), RCM, REACH, RoHS, UL, VCCI, WEEE

Certification

Safety: UL, CB, CE, TUV GS Emissions: FCC, CE, VCCI, RCM/C-Tick Environmental: RoHS, WEEE, REACH ISO140011

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 70 °C

Operating relative humidity (H-H)

5 - 95 %

Storage relative humidity (H-H)

5 - 95 %

Weight & dimensions

Width

442 mm

Depth

610 mm

Height

88 mm

Weight

18000 g
