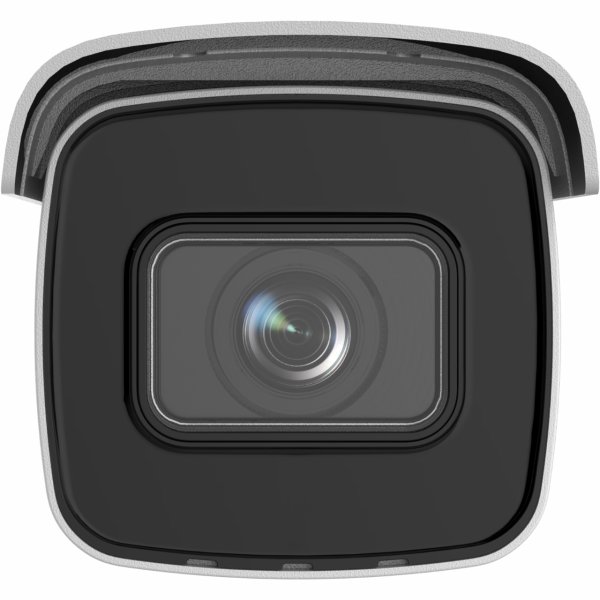

Hikvision Digital Technology DS-2CD3B46G2T-IZHS

Tuote

Valmistaja

Hikvision Digital Technology

Tuotenimi

DS-2CD3B46G2T-IZHS

Valmistajan linkki

https://www.hikvision.com/en/products/IP-Products/Network-Came..

Tuotekoodit

Valmistajan tuotekoodit

• DS-2CD3B46G2T-IZHS(2.8-12MM)

GTIN- / EAN-koodit

• 6941264071082

Performance

Type

IP security camera

Placement supported

Outdoor

Connectivity technology

Wired

Wide Dynamic Range (WDR)

Kyllä

Day/night mode

Kyllä

Infrared (IR) cut-off filter

Kyllä

Alarm input/output

Kyllä

Number of languages

33

Certification

FCC SDoC (47 CFR 15, B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: 6, 2016); KC (KN 32: 2015, KN 35: 2015) UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)

Design

Form factor

Bullet

Mounting type

Ceiling/wall

Product colour

White

Protection features

Dust resistant, Vandal proof, Water resistant

International Protection (IP) code

IP67

IK code

IK10

Camera

Camera pan control

Kyllä

Camera tilt control

Kyllä

Minimum illumination

0 lx

Angle of rotation

360 °

Lens viewing angle, horizontal

107.4 °

Lens viewing angle, vertical

56 °

Lens viewing angle, diagonal

130 °

Tilt angle range

0 - 90 °

Pan range

0 - 360 °

Camera shutter speed

1/3 - 1/100000 s

Image sensor

Sensor type

CMOS

Number of sensors

1

Optical sensor size

1/1.8 "

Progressive scan

Kyllä

Lens system

Number of lenses

1

Focal length range

2.8-12 mm

Maximum aperture number

2.5

Minimum aperture number

1.2

Night vision

Night vision

Kyllä

Night vision distance

60 m

LED type

IR

Infra-red wavelength

850 nm

Video

Maximum resolution

2688 x 1520 pixels

Total megapixels

4 MP

Video compression formats

H.264, H.264+, H.265, H.265+, M-JPEG

Supported graphics resolutions

320 x 240, 640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2304 x 1296, 2688 x 1520

Frame rate

30 fps

Video streaming

Kyllä

Noise reduction

Kyllä

Noise reduction technology

3D noise reduction

Image quality adjustment

Brightness, Contrast, Saturation, Sharpness

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Bit rate

32 Kbps - 8 Mbps

Back Light Compensation (BLC)

Kyllä

Highlight Compensation (HLC)

Kyllä

Region of Interest (ROI) encoding

Kyllä

Audio

Audio input channels

1.0 channels

Audio output channels

1.0 channels

Audio formats supported

AAC, MP3, PCM

Sample rate

48 kHz

Voice codecs

G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2

Network

Ethernet LAN

Kyllä

Wi-Fi

Ei

Bluetooth

Ei

Ethernet interface type

Fast Ethernet

Networking standards

IEEE 802.1x, IEEE 802.3at

Supported network protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SFTP, ISUP, ARP, SNMP

Number of users

32 user(s)

Quality of Service (QoS) support

Kyllä

Storage

Built-in HDD

Ei

Card reader integrated

Kyllä

Compatible memory cards

MicroSD (TransFlash), MicroSDHC, MicroSDXC

Maximum memory card size

256 GB

Ports & interfaces

Ethernet LAN (RJ-45) ports

1

RS-485 ports

1

Security

Password protection

Kyllä

Video motion detection

Kyllä

IP address filtering

Kyllä

HTTPS encryption

Kyllä

Intelligent Video Surveillance (IVS) system features

Scene change

Anti-flicker

Kyllä

Heartbeat

Kyllä

Mirror

Kyllä

Management features

Web-based management

Kyllä

Web browser

Kyllä

Reset button

Kyllä

Behavior analysis

Intrusion detection, Line crossing detection, Object removal detection, Region entrance detection, Region exiting detection, Unattended baggage detection

Power

Power source type

DC, PoE

DC output voltage

12

Operational conditions

Operating temperature (T-T)

-40 - 60 °C

Storage temperature (T-T)

-40 - 60 °C

Operating relative humidity (H-H)

0 - 95 %

Storage relative humidity (H-H)

0 - 95 %

Weight & dimensions

Diameter

105 mm

Length

340.8 mm

Weight

1400 g

Packaging data

Package width

385 mm

Package depth

190 mm

Package height

180 mm

Package weight

2250 g

Sustainability

Compliance certificates

REACH, RoHS

Packaging content

Number of cameras

1
