Hikvision Digital Technology DS-2CD2143G2-IS

Tuote

Valmistaja

Hikvision Digital Technology

Tuotenimi

DS-2CD2143G2-IS

Valmistajan linkki

https://www.hikvision.com/en/products/IP-Products/Network-Came..

Tuotekoodit

Valmistajan tuotekoodit

• 311313651
• DS-2CD2143G2-IS(2.8M
• DS-2CD2143G2-IS(2.8MM)
• DS-2CD2143G2-IS(2.8MM)(
• DS-2CD2143G2-IS2.8MM

GTIN- / EAN-koodit

• 6941264070870
• 6941264070894

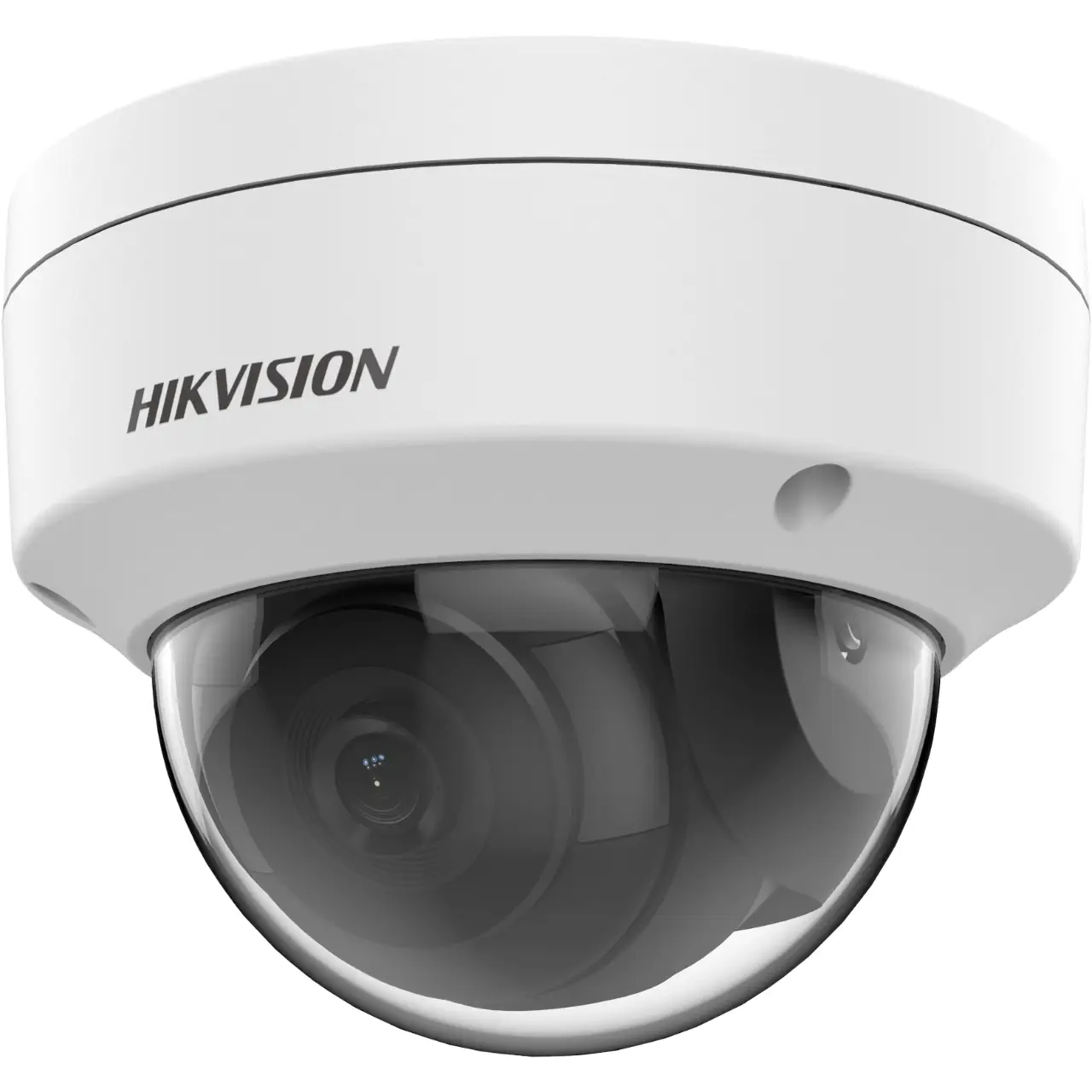

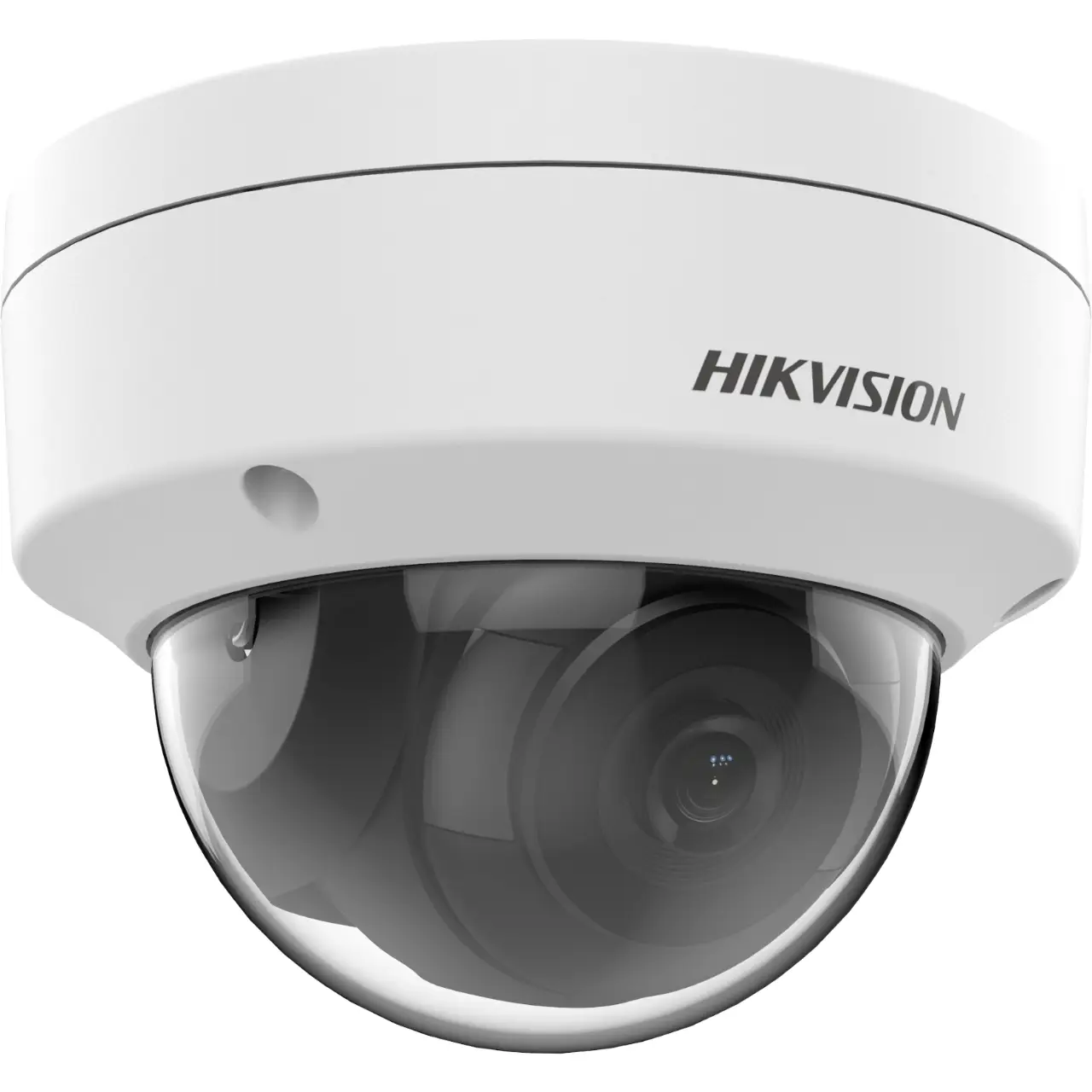

Tuotekuvat

Performance

Type

IP security camera

Placement supported

Outdoor

Connectivity technology

Wired

Wide Dynamic Range (WDR)

Kyllä

Day/night mode

Kyllä

Infrared (IR) cut-off filter

Kyllä

Number of languages

33

Certification

FCC SDoC (47 CFR 15, B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: 6, 2016); KC (KN 32: 2015, KN 35: 2015) UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)

Design

Form factor

Dome

Mounting type

Ceiling/wall

Product colour

White

Housing material

Aluminium

International Protection (IP) code

IP65

IK code

IK10

Camera

Camera pan control

Kyllä

Camera tilt control

Kyllä

Minimum illumination

0 lx

Angle of rotation

355 °

Lens viewing angle, horizontal

103 °

Lens viewing angle, vertical

55 °

Lens viewing angle, diagonal

122 °

Tilt angle range

0 - 75 °

Pan range

0 - 355 °

Camera shutter speed

1/3 - 1/100000 s

Image sensor

Sensor type

CMOS

Number of sensors

1

Optical sensor size

1/3 "

Progressive scan

Kyllä

Lens system

Number of lenses

1

Maximum aperture number

1.6

Fixed focal length

2.8 mm

Night vision

Night vision

Kyllä

Night vision distance

30 m

LED type

IR

Infra-red wavelength

850 nm

Video

Maximum resolution

2688 x 1520 pixels

Total megapixels

4 MP

Video compression formats

H.264, H.264+, H.265, H.265+, M-JPEG

Supported graphics resolutions

640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2688 x 1520

Frame rate

30 fps

Video streaming

Kyllä

Noise reduction

Kyllä

Noise reduction technology

3D noise reduction

Image quality adjustment

Brightness, Contrast, Saturation, Sharpness

Privacy masking

Kyllä

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Bit rate

32 Kbps - 8 Mbps

Back Light Compensation (BLC)

Kyllä

Highlight Compensation (HLC)

Kyllä

Region of Interest (ROI) encoding

Kyllä

Audio

Audio input channels

1.0 channels

Audio output channels

1.0 channels

Audio formats supported

AAC, MP3, PCM

Sample rate

48 kHz

Voice codecs

G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2

Network

Ethernet LAN

Kyllä

Wi-Fi

Ei

Bluetooth

Ei

Ethernet interface type

Fast Ethernet

Networking standards

IEEE 802.1x, IEEE 802.3af

Supported network protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE

Number of users

32 user(s)

Quality of Service (QoS) support

Kyllä

Storage

Built-in HDD

Ei

Card reader integrated

Kyllä

Compatible memory cards

MicroSD (TransFlash), MicroSDHC, MicroSDXC

Maximum memory card size

256 GB

Ports & interfaces

Ethernet LAN (RJ-45) ports

1

Security

Password protection

Kyllä

Video motion detection

Kyllä

IP address filtering

Kyllä

HTTPS encryption

Kyllä

Intelligent Video Surveillance (IVS) system features

Face detection

Anti-flicker

Kyllä

Heartbeat

Kyllä

Mirror

Kyllä

Management features

Web-based management

Kyllä

Web browser

Kyllä

Reset button

Kyllä

Behavior analysis

Intrusion detection, Line crossing detection

Power

Power source type

DC, PoE

Power consumption (max)

5 W

Power consumption (Power over Ethernet (PoE))

6.5 W

DC output voltage

12

DC output current

0.4 A

Operational conditions

Operating temperature (T-T)

-30 - 60 °C

Storage temperature (T-T)

-30 - 60 °C

Operating relative humidity (H-H)

0 - 95 %

Storage relative humidity (H-H)

0 - 95 %

Weight & dimensions

Height

84.7 mm

Diameter

110.8 mm

Weight

530 g

Packaging data

Package width

134 mm

Package depth

134 mm

Package height

108 mm

Package weight

720 g

Sustainability

Compliance certificates

REACH, RoHS

Packaging content

Number of cameras

1
