D-Link DAP-3712

Tuote

Valmistaja

D-Link

Tuotenimi

DAP-3712

Valmistajan linkki

https://www.dlink.com/en/products/dap-3712-20-km-long-range-wi..

Tuotekoodit

Valmistajan tuotekoodit

• DAP-3712

GTIN- / EAN-koodit

• 0790069457289

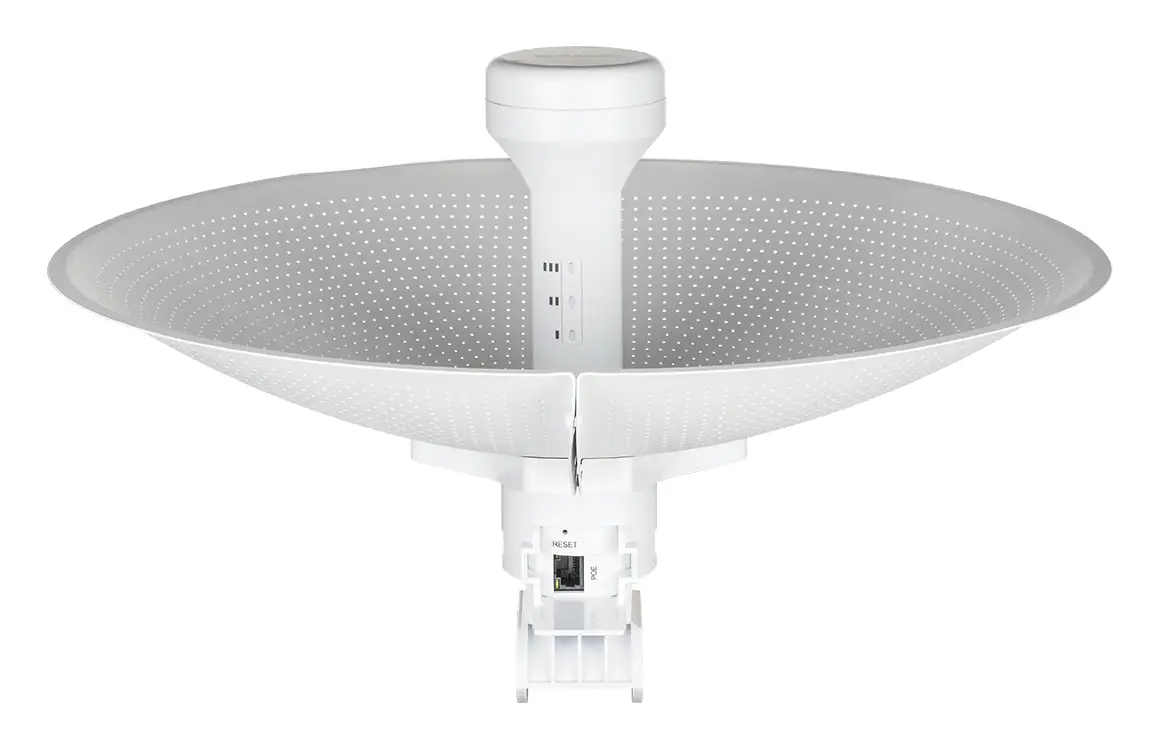

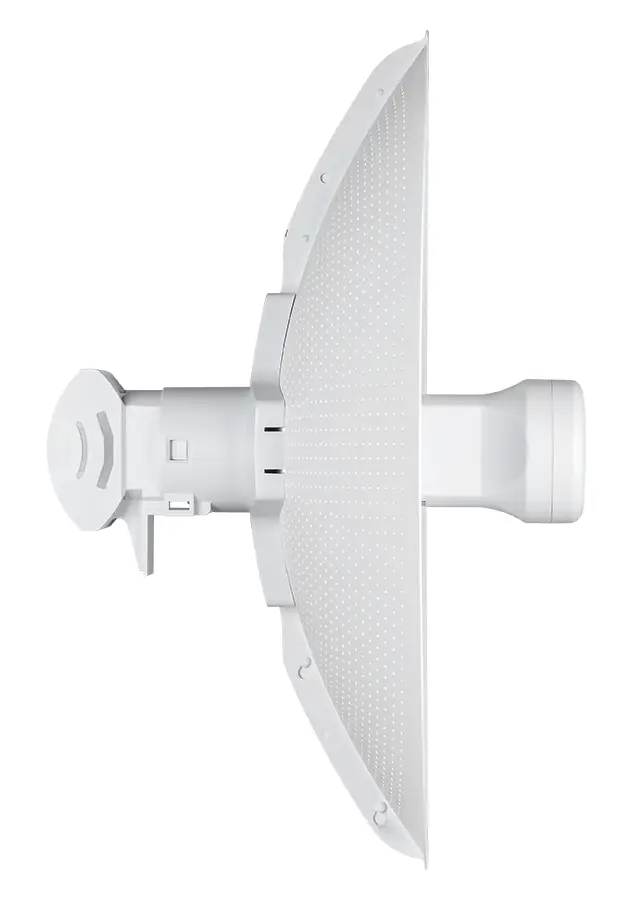

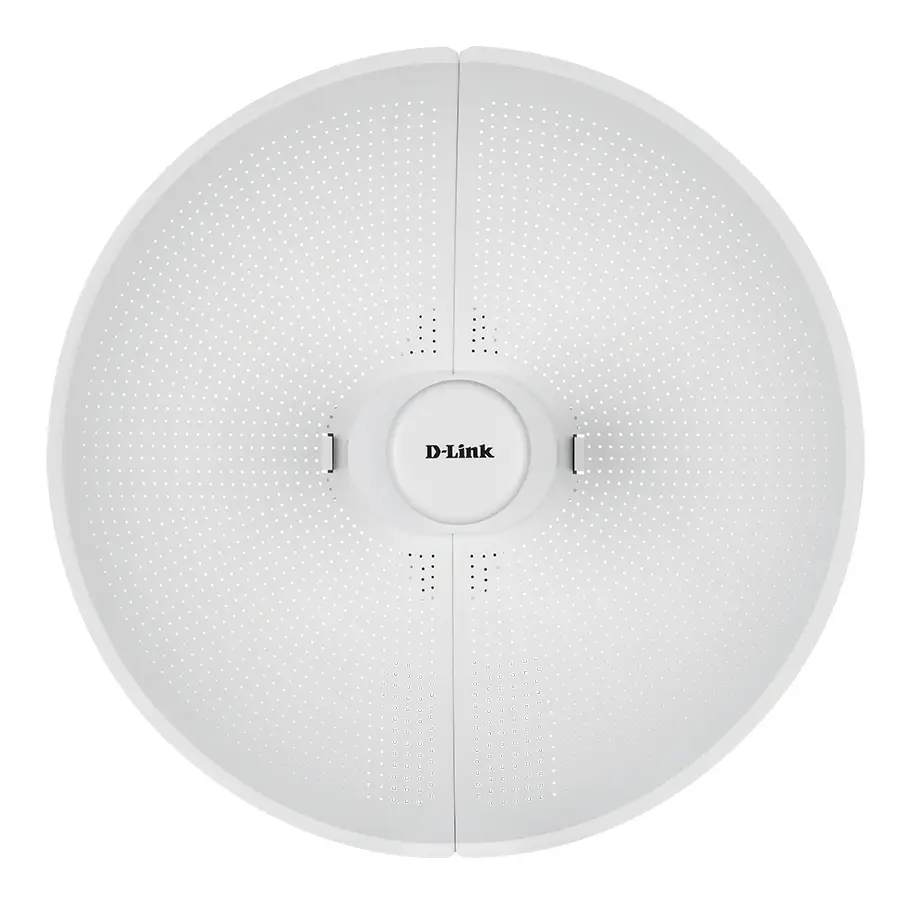

Tuotekuvat

Data transmission

Maximum data transfer rate

867 Mbit/s

Maximum transfer distance

20000 m

Antenna

Antenna design

External

Antenna gain level (max)

23 dBi

Antennas quantity

1

Wireless LAN features

Wi-Fi

Kyllä

Wi-Fi band

Single-band (5 GHz)

WLAN data transfer rate (max)

867 Mbit/s

Frequency band

5.180 - 5.825 GHz

Signal strength

27 dBm

Channels quantity

2 channels

Network

Ethernet LAN

Kyllä

Ethernet LAN interface type

Gigabit Ethernet

Ethernet LAN data rates

100,1000 Mbit/s

Networking standards

IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n

Cabling technology

10/100/1000Base-T(X)

Static IP

Kyllä

Ports & interfaces

Connectivity technology

Wired & Wireless

Ethernet LAN (RJ-45) ports

1

Security

Security algorithms

128-bit AES

MAC address filtering

Kyllä

Management features

Web-based management

Kyllä

DHCP client

Kyllä

Features

Product type

Network bridge

Material

Acrylonitrile butadiene styrene (ABS)

Mounting type

Pole

Product colour

White

LED indicators

Signal strength

Automatic Transmit Power Control (ATPC)

Kyllä

Reset button

Kyllä

International Protection (IP) code

IP66

Surge protection

Kyllä

Power

Power source type

PoE

Power consumption (typical)

15 W

Power consumption (max)

15 W

Power over Ethernet (PoE)

Kyllä

Power over Ethernet (PoE) voltage

48 V

Operational conditions

Operating temperature (T-T)

-40 - 65 °C

Operating relative humidity (H-H)

0 - 90 %

Storage temperature (T-T)

-40 - 85 °C

Storage relative humidity (H-H)

0 - 90 %

Certificates

Compliance certificates

CE, Federal Communications Commission (FCC)

Certification

CE, FCC

Weight & dimensions

Width

372 mm

Depth

241 mm

Height

372 mm

Weight

900 g

Packaging data

Quantity per pack

1 pc(s)

Logistics data

Harmonized System (HS) code

85176990
