APC GVSUPS30KRHS

Tuote

Valmistaja

APC

Tuotenimi

GVSUPS30KRHS

Valmistajan linkki

https://www.se.com/nl/en/product/GVSUPS30KRHS

Tuotekoodit

Valmistajan tuotekoodit

• GVSUPS30KRHS

GTIN- / EAN-koodit

• 0731304418276

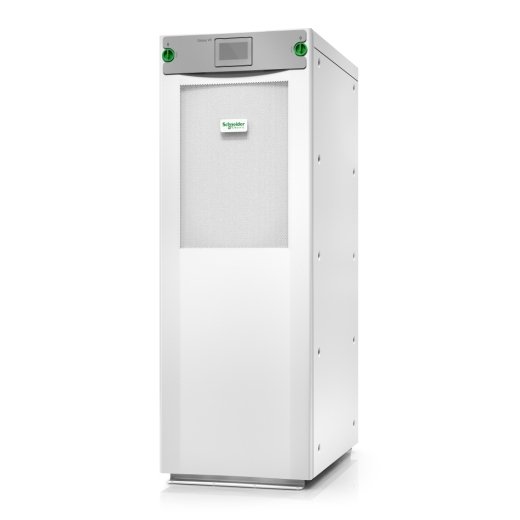

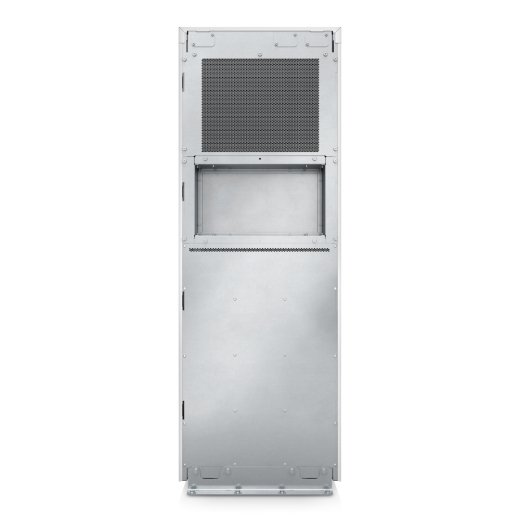

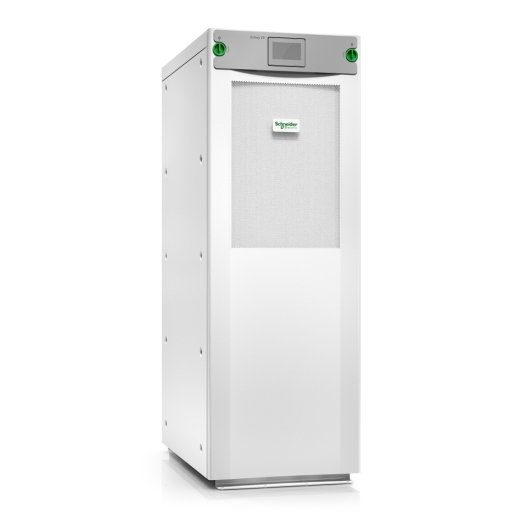

Tuotekuvat

Features

UPS topology

Double-conversion (Online)

Output power capacity

30 kVA

Output power

30000 W

Waveform

Sine

Input operation voltage (min)

340 V

Input operation voltage (max)

460 V

Input frequency

40 - 70 Hz

Output operation voltage (min)

400 V

Output frequency

50/60 Hz

Maximum current

54 A

Heat dissipation

3122 BTU/h

Number of input phases

3

Number of output phases

3

Crest factor

2.5:1

Output voltage Total Harmonic Distortion (THD)

1 %

Input current Total Harmonic Distortion (THD)

3 %

Noise level

68 dB

Power protection features

Overload, Short circuit

Audible alarm(s)

Kyllä

Battery

Battery technology

Lithium-Ion (Li-Ion)

Design

Form factor

Tower

Product colour

White

Display type

LCD

International Protection (IP) code

IP21

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-25 - 55 °C

Operating relative humidity (H-H)

0 - 95 %

Storage relative humidity (H-H)

10 - 80 %

Operating altitude

0 - 1005.84 m

Certificates

Compliance certificates

RoHS

Certification

EN/IEC 62040-1, EN/IEC 62040-2, FCC 15 A, IEC 60721-4-2 2M2, UL 1778 5

Packaging content

Quick installation guide

Kyllä

Weight & dimensions

Width

521 mm

Depth

847 mm

Height

1485 mm

Weight

250000 g

Packaging data

Package width

990 mm

Package depth

640 mm

Package height

1680 mm

Package weight

250000 g

Logistics data

Warranty period

1 year(s)
