Tuotetiedot
Tuote
- Valmistaja
- Fractal Design
- Tuotenimi
- Ion+ 2 Platinum 660W
- Julkaisupäivä
- 20.08.2021
- Valmistajan linkki
- https://www.fractal-design.com/products/power-supplies/ion/ion..
Tuotekoodit
- Valmistajan tuotekoodit
- FD-P-IA2P-660
- FD-P-IA2P-660-EU
- GTIN- / EAN-koodit
- 0843276102869
- 7340172702863

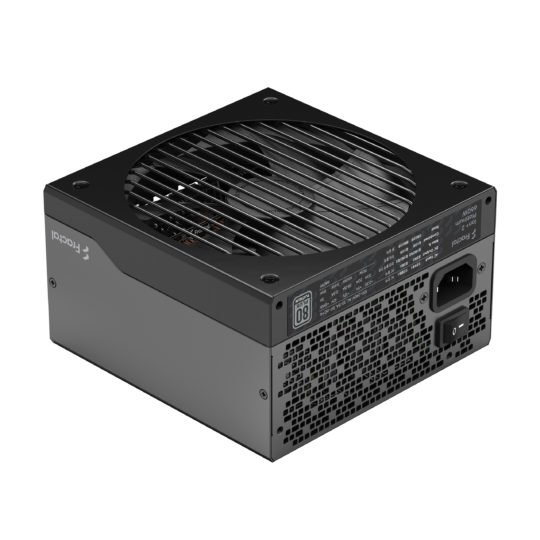

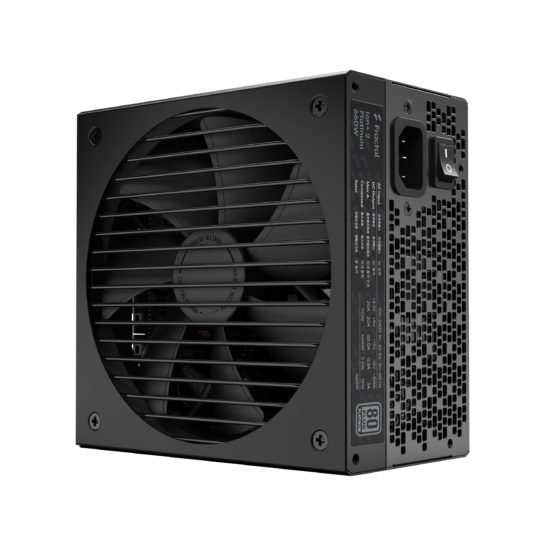

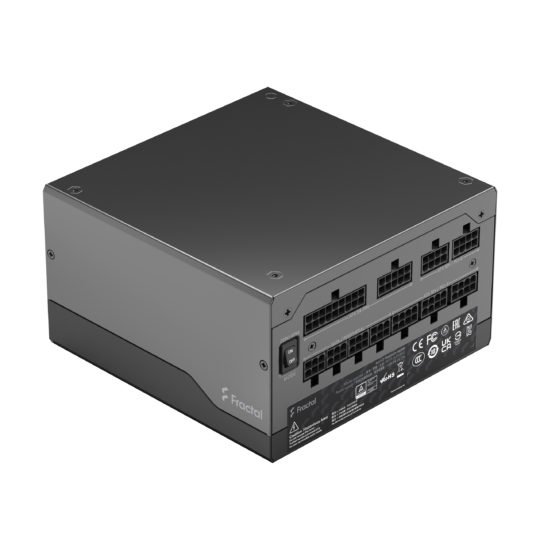

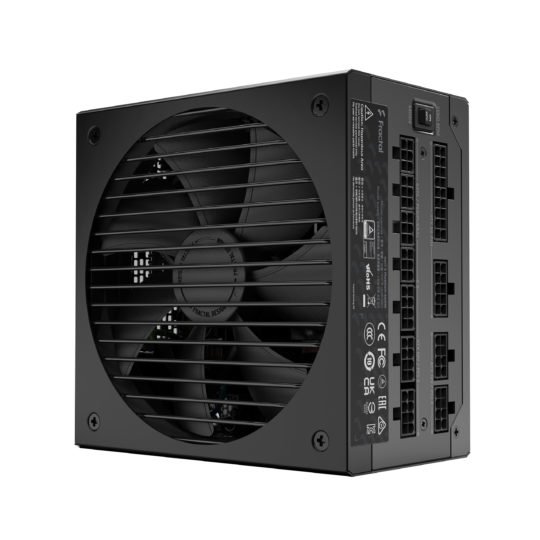

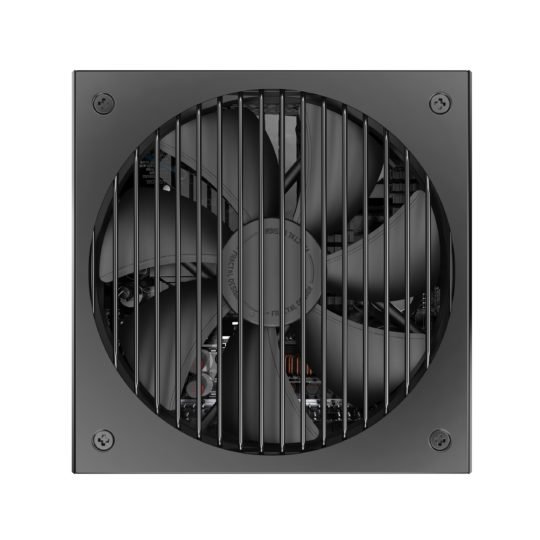

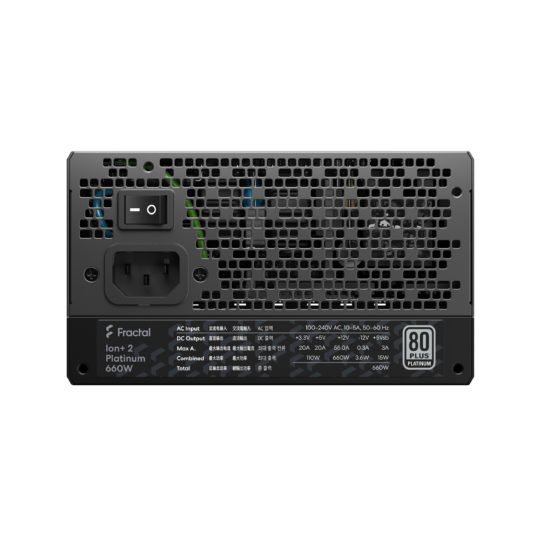

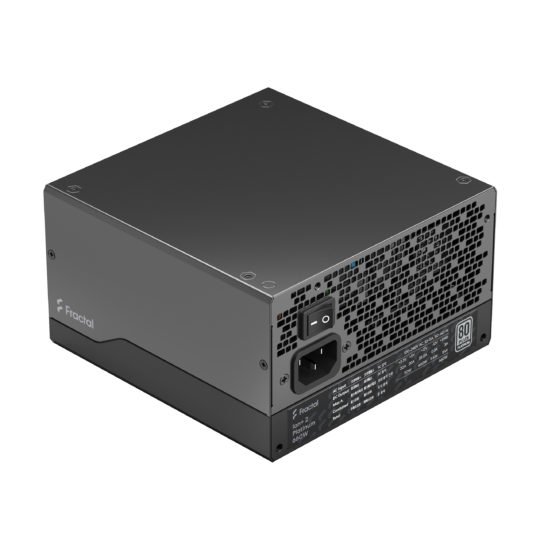

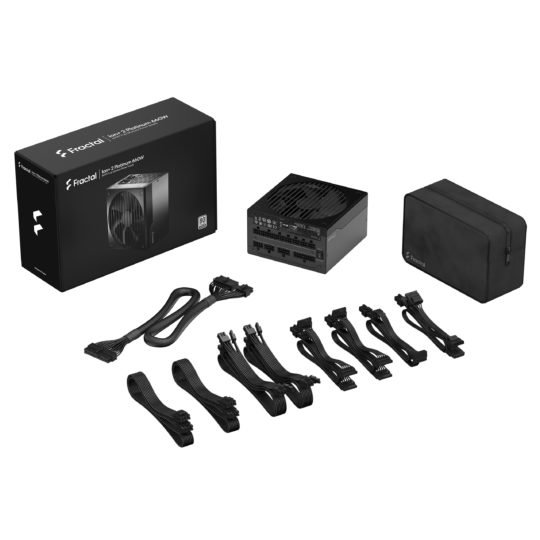

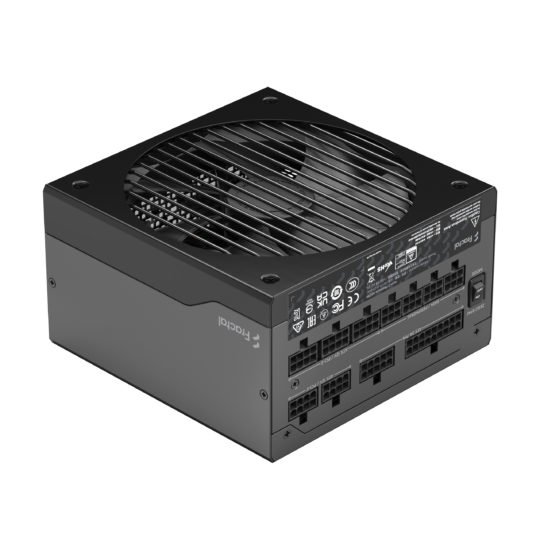

Tuotekuvat
Power
- Total power
- 660 W
- AC input voltage
- 100 - 240 V
- AC input frequency
- 50 - 60 Hz
- Maximum input current (@110V)
- 10 A
- Maximum input current (@220V)
- 5 A
- Combined power (+3.3V)
- 110 W
- Combined power (+5V)
- 110 W
- Max output current (+3.3V)
- 20 A
- Max output current (+12V)
- 55 A
- Max output current (+5V)
- 20 A
- Max output current (-12V)
- 0.3 A
- Max output current (+5Vsb)
- 3 A

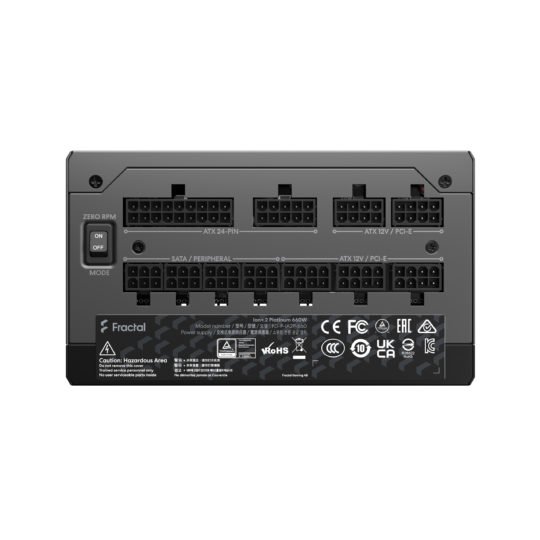

Ports & interfaces
- Motherboard power connector
- 20+4 pin ATX
- Motherboard power cable length
- 600 mm
- Number of SATA power connectors
- 10
- SATA power cable length
- 400,550,650,700,800,850 mm
- Peripheral (Molex) power connectors (4-pin)
- 4
- Peripheral (Molex) power cable length
- 400,550,600,750 mm
- EPS power connector (8-pin)
- Kyllä
- CPU power connector (4+4 pin)
- Kyllä
- CPU power cable length
- 700 mm
- ATX power connector (20+4 pin)
- Kyllä
- PCI Express connector
- Kyllä
- Cabling type
- Fully-Modular
Performance
- Purpose
- PC
- Power supply unit (PSU) form factor
- ATX
- 80 PLUS certification
- 80 PLUS Platinum
- Supported motherboard form factors
- ATX
- ATX version
- 2.52
- EPS version
- 2.92
Design
- Product colour
- Black
- Cooling type
- Active
- Fan diameter
- 140 mm
- Number of fans
- 1 fan(s)
- On/off switch
- Kyllä
Weight & dimensions
- Width
- 150 mm
- Depth
- 150 mm
- Height
- 86 mm
- Weight
- 2340 g
Packaging data
- Package width
- 325 mm
- Package depth
- 210 mm
- Package height
- 110 mm
- Package weight
- 2860 g
- Package type
- Box
Logistics data
- Harmonized System (HS) code
- 84733020
