ASUS PRIME Z690-P D4

Tuote

Valmistaja

ASUS

Tuotenimi

PRIME Z690-P D4

Valmistajan linkki

https://www.asus.com/Motherboards-Components/Motherboards/PRIM..

Tuotekoodit

Valmistajan tuotekoodit

• 90MB18N0-M0EAY0
• 90MB18P0-M0EAY0
• PRIME Z690-P D4
• PRIME Z690-P WIFI D4
• PRIME-Z690-P-D4
• PRIME-Z690-P-WIFI-D4

GTIN- / EAN-koodit

• 4711081471554
• 4711081471684

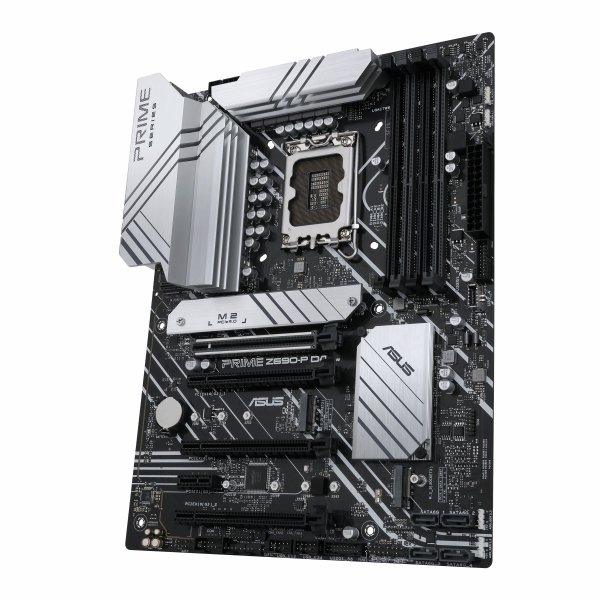

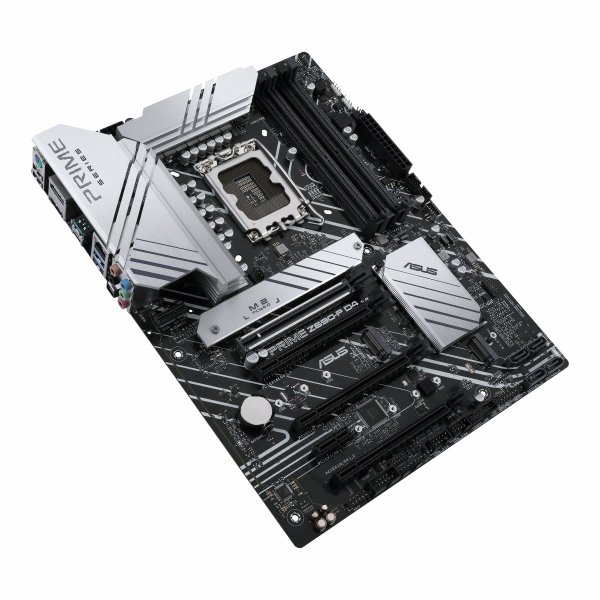

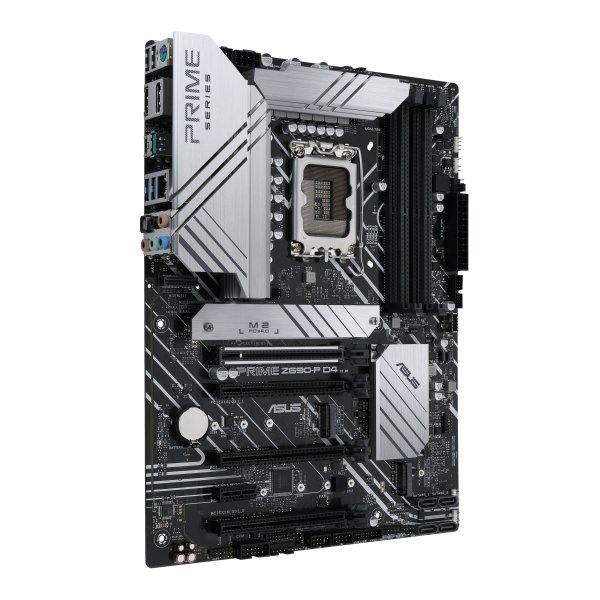

Tuotekuvat

Processor

Processor manufacturer

Intel

Processor socket

LGA 1700

Compatible processor series

Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel Pentium G

Memory

Supported memory types

DDR4-SDRAM

Number of memory slots

4

Memory slots type

DIMM

Memory channels

Dual-channel

ECC сompatibility

Non-ECC

Supported memory clock speeds

2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,3866,4000,4133,4266,4400,4600,4800,5000,5133,5333 MHz

Maximum internal memory

128 GB

Unbuffered memory

Kyllä

Storage controllers

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

M.2, SATA

RAID support

Kyllä

RAID levels

0, 1, 5, 10

Graphics

Parallel processing technology support

Not supported

On-board graphics card

Ei

Internal I/O

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

Number of SATA III connectors

4

Number of SATA II connectors

0

Number of SATA connectors

0

Front panel audio connector

Kyllä

ATX Power connector (24-pin)

Kyllä

Power fan connector

Kyllä

CPU fan connector

Kyllä

Number of chassis fan connectors

3

Peripheral (Molex) power connectors (4-pin)

1

EPS power connector (8-pin)

Kyllä

Number of COM connectors

1

Thunderbolt headers

1

12V power connector

Kyllä

RGB LED pin header

Kyllä

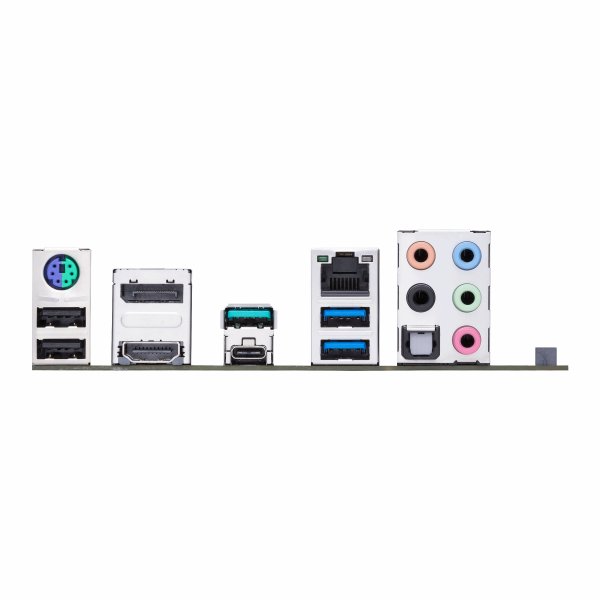

Rear panel I/O ports

USB 2.0 ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

USB 3.2 Gen 2x2 Type-C ports quantity

1

Ethernet LAN (RJ-45) ports

1

PS/2 ports quantity

1

VGA (D-Sub) ports quantity

0

HDMI ports quantity

1

HDMI version

2.1

DVI-D ports quantity

0

DisplayPorts quantity

1

DisplayPort version

1.4

Headphone outputs

1

Microphone in

Kyllä

S/PDIF out port

Kyllä

Network

Ethernet LAN

Kyllä

Ethernet interface type

2.5 Gigabit Ethernet

Wi-Fi

Ei

Bluetooth

Ei

Features

Component for

PC

Motherboard form factor

ATX

Motherboard chipset family

Intel

Motherboard chipset

Intel Z690

Audio output channels

7.1 channels

Product colour

Aluminium, Black

Windows operating systems supported

Windows 10, Windows 11

Expansion slots

PCI Express x1 (Gen 3.x) slots

1

PCI Express x16 (Gen 3.x) slots

2

PCI Express x16 (Gen 4.x) slots

1

Number of M.2 (M) slots

3

BIOS

BIOS type

UEFI AMI

BIOS memory size

192 Mbit

Logistics data

Harmonized System (HS) code

84733020

Weight & dimensions

Width

305 mm

Depth

234 mm

Height

68 mm

Packaging content

Cables included

SATA

Drivers included

Kyllä

Other features

mSATA ports quantity

0

Weight

1020 g
