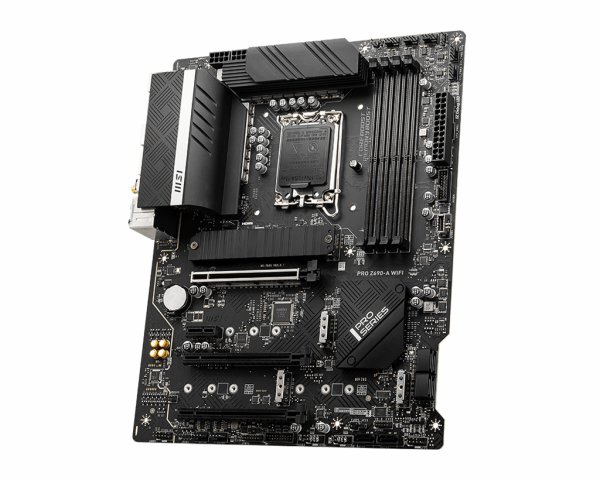

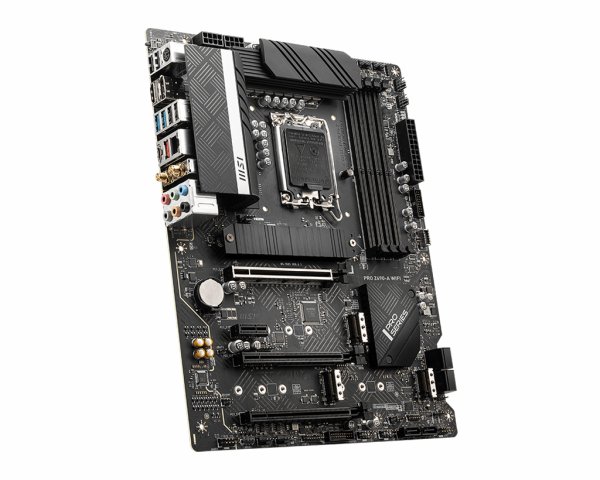

MSI PRO Z690-A WIFI

Tuote

Valmistaja

MSI

Tuotenimi

PRO Z690-A WIFI

Valmistajan linkki

https://www.msi.com/Motherboard/PRO-Z690-A-WIFI

Tuotekoodit

Valmistajan tuotekoodit

• 7D25-006R
• 7D25-017R
• PRO-Z690-A-WIFI

GTIN- / EAN-koodit

• 4719072886592

Tuotekuvat

Processor

Processor manufacturer

Intel

Processor socket

LGA 1700

Compatible processor series

Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®

Maximum number of SMP processors

1

Memory

Supported memory types

DDR5-SDRAM

Number of memory slots

4

Memory slots type

DIMM

Memory channels

Dual-channel

ECC сompatibility

Non-ECC

Supported memory clock speeds

4000,5400,6400 MHz

Maximum internal memory

128 GB

Unbuffered memory

Kyllä

Storage controllers

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

M.2, SATA III

RAID support

Kyllä

RAID levels

0, 1, 5, 10

Graphics

Parallel processing technology support

Crossfire

On-board graphics card

Ei

Internal I/O

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

Number of SATA III connectors

6

Front panel audio connector

Kyllä

ATX Power connector (24-pin)

Kyllä

CPU fan connector

Kyllä

Number of chassis fan connectors

6

Chassis intrusion connector

Kyllä

TPM connector

Kyllä

12V power connector

Kyllä

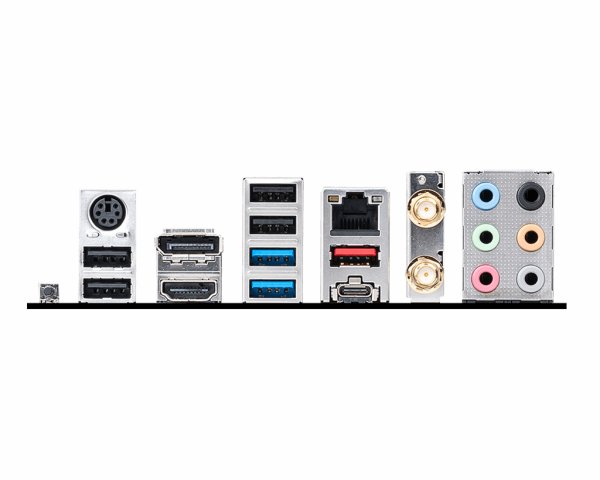

Rear panel I/O ports

USB 2.0 ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

USB 3.2 Gen 2x2 Type-C ports quantity

1

Ethernet LAN (RJ-45) ports

1

HDMI ports quantity

1

HDMI version

2.1

DisplayPorts quantity

1

DisplayPort version

1.4

S/PDIF out port

Kyllä

Digital audio optical out

1

WiFi-AP antenna jack

2

Network

Ethernet LAN

Kyllä

Ethernet interface type

2.5 Gigabit Ethernet

LAN controller

Intel I225-V

Wi-Fi

Kyllä

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Wi-Fi standards

802.11a, 802.11ad, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)

Bluetooth

Kyllä

Bluetooth version

5.2

Features

Component for

PC

Motherboard form factor

ATX

Motherboard chipset family

Intel

Motherboard chipset

Intel Z690

Audio chip

Realtek ALC897

Audio output channels

7.1 channels

Product colour

Black

Number of mounting holes

9

Expansion slots

PCI Express x1 (Gen 3.x) slots

1

PCI Express x16 slots

3

Number of M.2 (M) slots

4

BIOS

BIOS type

UEFI AMI

Clear CMOS jumper

Kyllä

Logistics data

Harmonized System (HS) code

84733020

Weight & dimensions

Width

305 mm

Depth

244 mm

Height

65 mm

Packaging content

Cables included

SATA

Drivers included

Kyllä

Other features

Weight

1000 g
