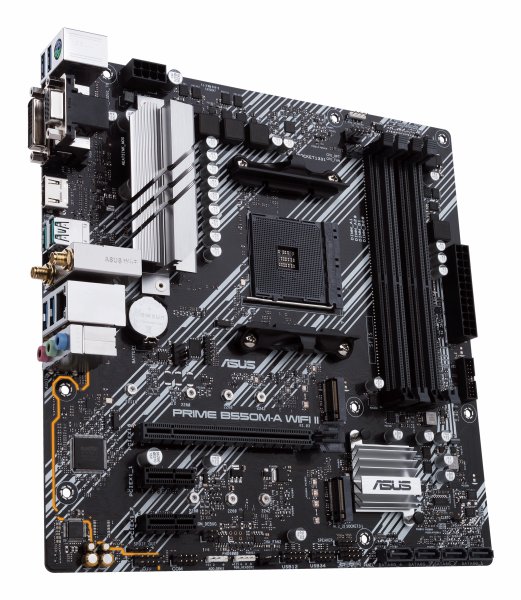

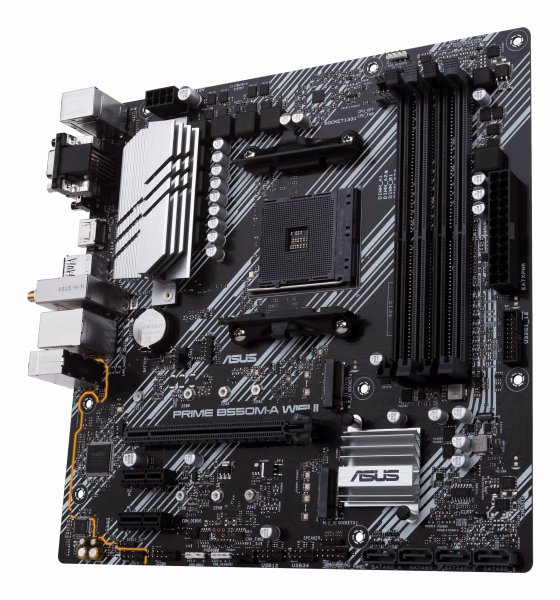

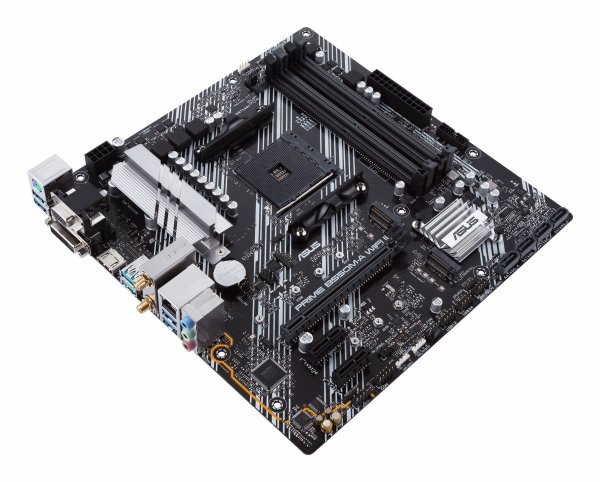

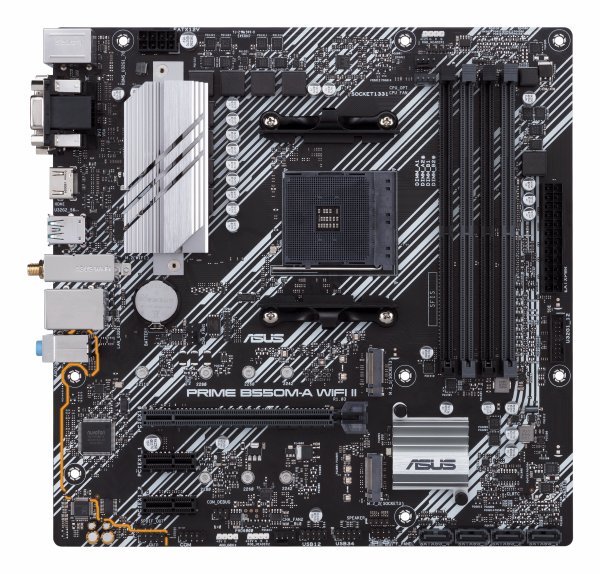

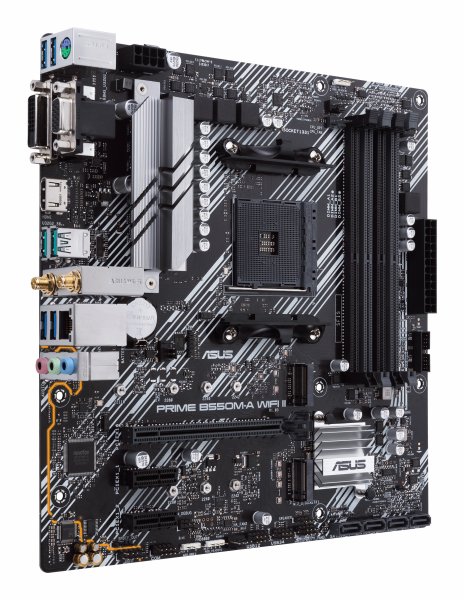

ASUS PRIME B550M-A WIFI II

Tuote

Valmistaja

ASUS

Tuotenimi

PRIME B550M-A WIFI II

Valmistajan linkki

https://www.asus.com/Motherboards-Components/Motherboards/PRIM..

Tuotekoodit

Valmistajan tuotekoodit

• 90MB19X0-M0EAY0
• PRIME B550M-A WIFI II
• PRIMEB550M-AWIFIII

GTIN- / EAN-koodit

• 0195553309745
• 4711081309741

Tuotekuvat

Processor

Processor manufacturer

AMD

Processor socket

Socket AM4

Compatible processor series

AMD Ryzen 3000 Series, AMD Ryzen 5000 Series

Supported processor sockets

Socket AM4

Memory

Supported memory types

DDR4-SDRAM

Number of memory slots

4

Memory slots type

DIMM

Memory channels

Dual-channel

ECC сompatibility

ECC

Supported memory clock speeds

2133,2400,2666,2800,3000,3200,3333,3466,3600,3733,3866,4000,4133,4266,4400,4466,4600,4800,4866 MHz

Maximum internal memory

128 GB

Unbuffered memory

Kyllä

Storage controllers

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

M.2, PCI Express 3.0, PCI Express 4.0, SATA III

Number of storage drives supported

6

RAID support

Kyllä

RAID levels

0, 1, 10

Graphics

Parallel processing technology support

Not supported

On-board graphics card

Ei

Internal I/O

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

Number of SATA II connectors

0

Number of SATA connectors

0

S/PDIF out connector

Kyllä

Front panel audio connector

Kyllä

ATX Power connector (24-pin)

Kyllä

Number of EATX power connectors

1

CPU fan connector

Kyllä

Number of chassis fan connectors

2

EPS power connector (8-pin)

Kyllä

Number of COM connectors

1

TPM connector

Kyllä

12V power connector

Kyllä

RGB LED pin header

Kyllä

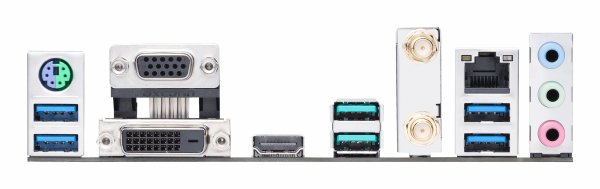

Rear panel I/O ports

USB 2.0 ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

Ethernet LAN (RJ-45) ports

1

PS/2 ports quantity

1

VGA (D-Sub) ports quantity

1

HDMI ports quantity

1

HDMI version

2.1

DVI-D ports quantity

1

Headphone outputs

1

Microphone in

Kyllä

WiFi-AP antenna jack

1

USB connector type

USB Type-A

Network

Ethernet LAN

Kyllä

Ethernet interface type

Gigabit Ethernet

LAN controller

Realtek RTL8111H

Wake-on-LAN ready

Kyllä

Wi-Fi

Kyllä

Top Wi-Fi standard

Wi-Fi 6 (802.11ax)

Wi-Fi standards

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)

Bluetooth

Kyllä

Bluetooth version

5.2

Features

Component for

PC

Motherboard form factor

micro ATX

Motherboard chipset family

AMD

Motherboard chipset

AMD B550

Audio output channels

7.1 channels

Product colour

Multicolour

Windows operating systems supported

Windows 10 x64, Windows 11 x64

Expansion slots

PCI Express x1 (Gen 3.x) slots

2

PCI Express x16 (Gen 4.x) slots

1

Number of M.2 (M) slots

2

1st M.2 largest key size

22110

1st M.2 highest PCI Express generation

4.0

2nd M.2 largest key size

2280

2nd M.2 highest PCI Express generation

3.0

BIOS

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

Clear CMOS jumper

Kyllä

Logistics data

Harmonized System (HS) code

84733020

Weight & dimensions

Width

244 mm

Depth

244 mm

Height

67 mm

Packaging content

Cables included

SATA

Drivers included

Kyllä

Other features

mSATA ports quantity

0

Weight

845 g

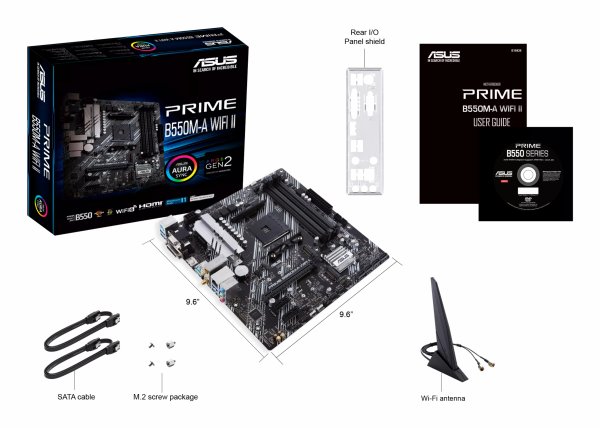

Packaging content

2 x SATA 6Gb/s cables 1 x ASUS Wi-Fi moving antennas 1 x I/O Shield 1 x M.2 SSD screw package 1 x Support DVD 1 x User manual
