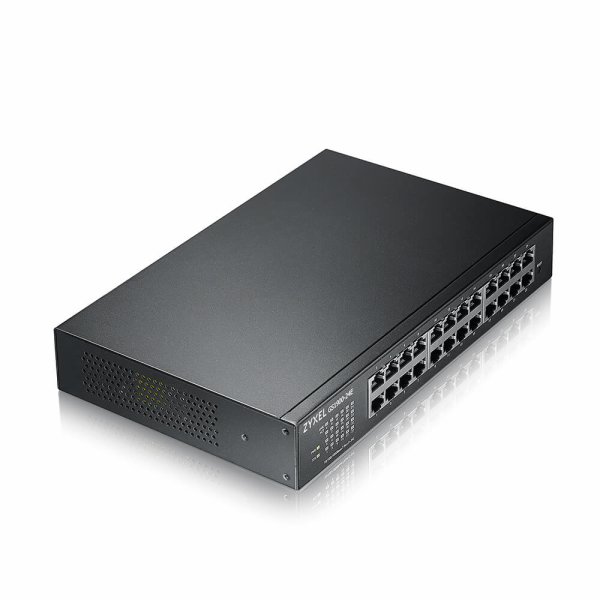

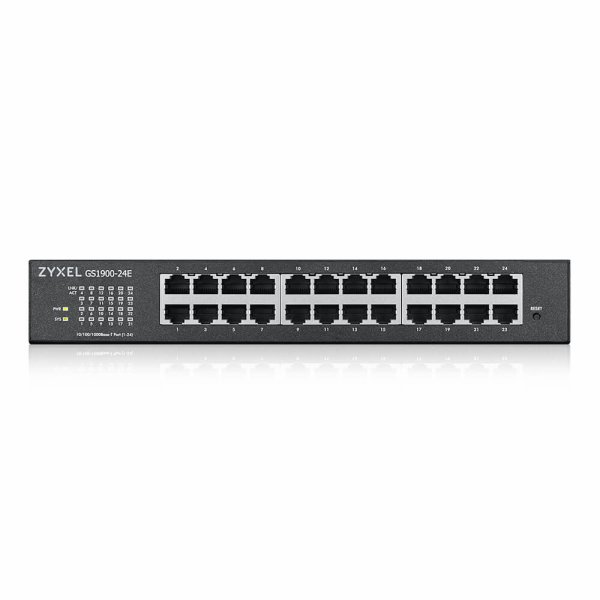

ZyXEL GS1900-24E-EU0103F

Tuote

Valmistaja

ZyXEL

Tuotenimi

GS1900-24E-EU0103F

Julkaisupäivä

13.12.2021

Valmistajan linkki

https://www.zyxel.com/products_services/8-10-16-24-48-port-GbE..

Tuotekoodit

Valmistajan tuotekoodit

• GS1900-24E-EU0103F

GTIN- / EAN-koodit

• 4718937621132

Tuotekuvat

Management features

Switch type

Managed

Switch layer

L2

Quality of Service (QoS) support

Kyllä

Web-based management

Kyllä

System event log

Kyllä

MIB support

RFC 1213 MIB II, RFC 2819 RMON (group 1, 2, 3, 9),RFC 1215 generic traps, RFC 1493 bridge, Zyxel private common MIB

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

24

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Power connector

AC-in jack

Network

Networking standards

IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x

10G support

Ei

Port mirroring

Kyllä

Full duplex

Kyllä

Flow control support

Kyllä

Link aggregation

Kyllä

Spanning tree protocol

Kyllä

Ethernet LAN data rates

10,100,1000 Mbit/s

MAC address auto-learning supported

Kyllä

VLAN support

Kyllä

Virtual LAN features

Stacked VLAN, VLAN mapping

Data transmission

MAC address table

8000 entries

Switching capacity

48 Gbit/s

Forwarding rate

35.7 Mpps

Store-and-forward

Kyllä

Jumbo frames support

Kyllä

Jumbo frames

9000

Packet buffer memory

0.525 MB

Security

DHCP features

DHCP client

IGMP snooping

Kyllä

Security algorithms

802.1x RADIUS

MAC address filtering

Kyllä

Static port security

Kyllä

SSH/SSL support

Kyllä

Password protection

Kyllä

Authentication type

RADIUS, TACACS+

Design

Rack mounting

Kyllä

Stackable

Kyllä

Form factor

1U

Product colour

Black

Reset button

Kyllä

LED indicators

Kyllä

Wall mountable

Kyllä

Performance

Mean time between failures (MTBF)

804.714 h

Power

Power source

AC

Power supply included

Kyllä

AC input voltage

100 - 240 V

AC input frequency

50 - 60 Hz

Power consumption (max)

15.1 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)

Ei

Operational conditions

Operating temperature (T-T)

0 - 50 °C

Storage temperature (T-T)

-40 - 70 °C

Operating relative humidity (H-H)

10 - 95 %

Storage relative humidity (H-H)

10 - 95 %

Heat dissipation

51.49 BTU/h

Weight & dimensions

Width

267 mm

Depth

162 mm

Height

42 mm

Weight

1560 g

Packaging content

Cables included

AC

Rack mount kit

Kyllä

Packaging data

Package type

Box

Package width

325 mm

Package depth

223 mm

Package height

71 mm

Package weight

2050 g

Certificates

Certification

EMC ■ CE, FCC, C-Tick, Class A (GS1900-24/24EP/24HPv2/48/ 48HPv2) ■ CE, FCC, C-Tick, Class B (GS1900-8/8HP/10HP/16/24E) ■ BSMI CNS13438 • Safety ■ LVD EN60950-1 ■ BSMI CNS14336-1 ■ CB IEC60950-1 (GS1900-8HP/10HP/16/24E/24) • RoHS compliant

Logistics data

Harmonized System (HS) code

85176990
