Epson TM-P80II AC (121)

Tuote

Valmistaja

Epson

Tuotenimi

TM-P80II AC (121)

Julkaisupäivä

01.09.2022

Valmistajan linkki

https://epson.com/

Tuotekoodit

Valmistajan tuotekoodit

• C31CK00121

GTIN- / EAN-koodit

• 8715946709291

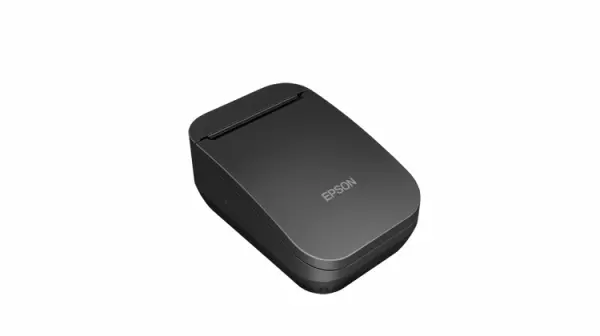

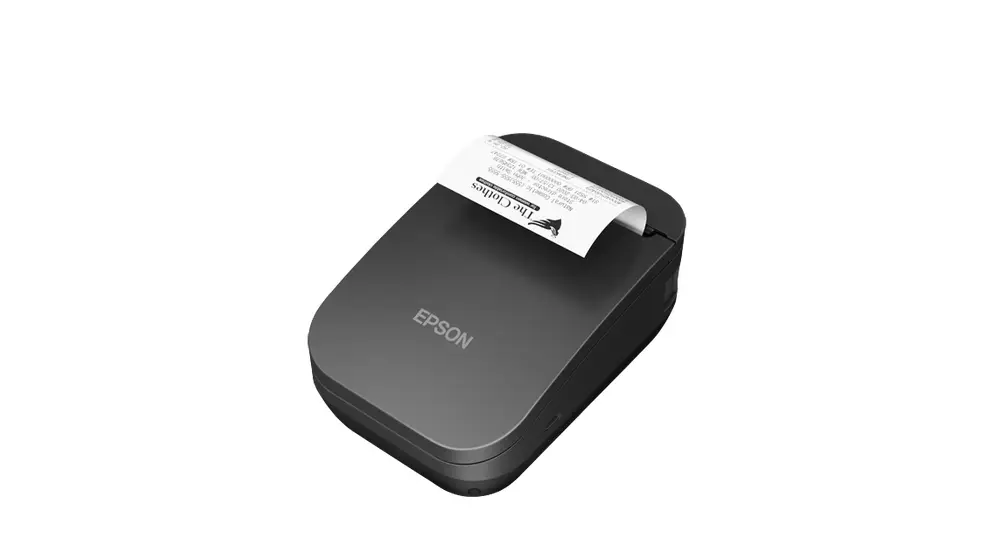

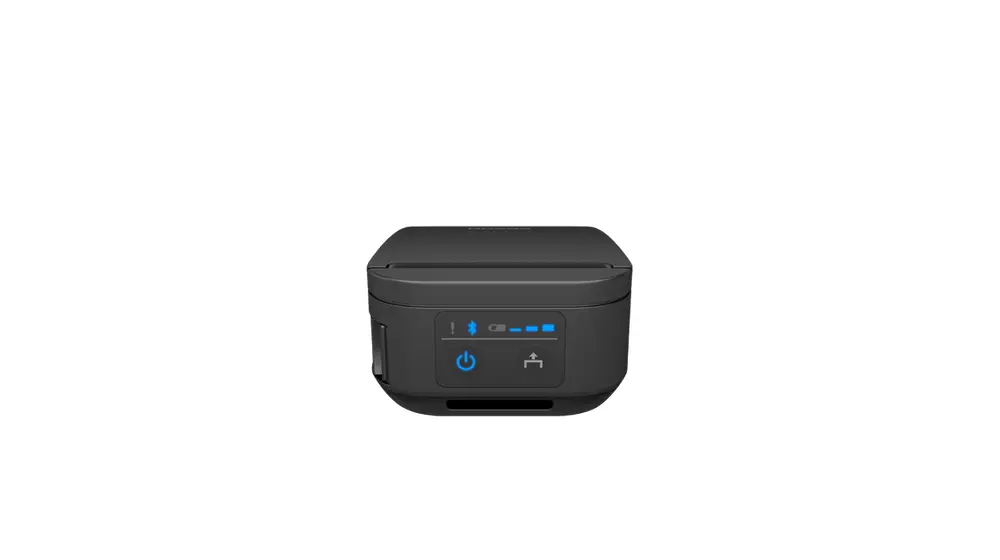

Tuotekuvat

Printing

Print technology

Thermal

Type

Mobile printer

Colour

Ei

Maximum resolution

203 x 203 DPI

Print speed

100 mm/sec

Print speed (receipt)

100 mm/sec

Printing characters

Graphic, Barcode, 2D barcode, Text

Paper handling

Paper loading type

Top & front

Printing media thickness

75 µm

Supported paper width

80 mm

Maximum printing width

80 mm

Ports & interfaces

Connectivity technology

Wired & Wireless

USB port

Kyllä

USB connector

USB Type-C

Bluetooth

Kyllä

Bluetooth version

5.0

Near Field Communication (NFC)

Kyllä

Interface

Bluetooth, USB Type-C

Features

Built-in barcodes

Code 128 (A/B/C), CODABAR (NW-7), UPC-E, UPC-A, GS1 DataBar, EAN8, GS1-128, EAN13, Code 39, Data Matrix, Code 93, ITF, MaxiCode, PDF417

Sound pressure level (printing)

53 dB

Mean time between failures (MTBF)

120000 h

Cutter

Kyllä

Paper save function

Kyllä

Print head life

50 km

Country of origin

Philippines

Design

Product colour

Black

Power

Power source type

DC

AC input voltage

7.2 V

Battery life (max)

34 h

Operational conditions

Operating temperature (T-T)

-15 - 50 °C

Storage temperature (T-T)

-25 - 70 °C

Operating relative humidity (H-H)

10 - 90 %

Storage relative humidity (H-H)

0 - 90 %

Weight & dimensions

Width

105 mm

Depth

153 mm

Height

67 mm

Weight

500 g

Packaging data

Cables included

USB

Quantity per pack

1 pc(s)

Package width

220 mm

Package depth

165 mm

Package height

115 mm

Package weight

795 g

Battery

Battery capacity

1950 mAh

Logistics data

Products per pallet

320 pc(s)

Products per pallet layer

40 pc(s)

Pallet gross width

800 mm

Pallet gross length

1200 mm

Pallet gross height

2230 mm

Products per pallet (UK)

384 pc(s)

Products per pallet layer (UK)

48 pc(s)

Pallet length (UK)

1200 mm

Pallet height (UK)

2230 mm

Technical details

Technology

Thermal Line

Font styles

ANK, BIG5, GB18030-80, JIS X0208-90, KSC-5601C, Traditional Chinese, Simplified Chinese

Box contents

Battery (OT-BY20), Belt clip, Main unit, Quick Start Guide, Roll paper, Setup guide, USB cable, Warranty document

Paper size roll paper

79.50 ± 0.50 (W) mm x dia 51.00 mm

Print speed

Max. 100 mm/sec at 203 x 203 DPI ( printing width80 mm)

Other features

Buffer size

64 KB
