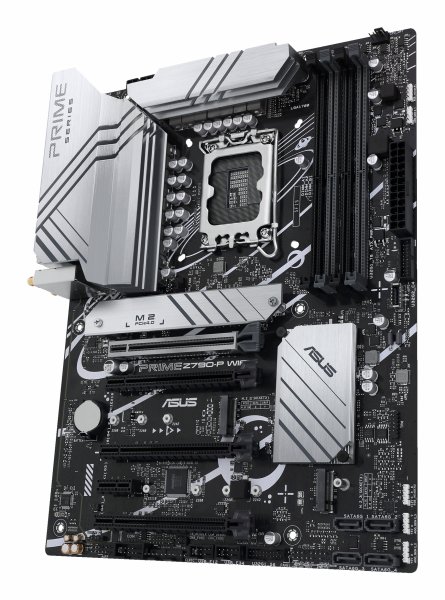

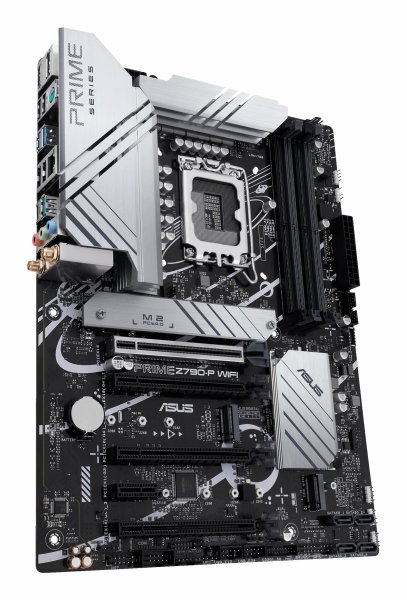

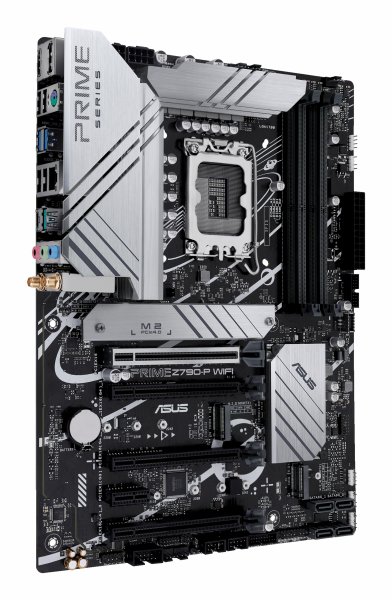

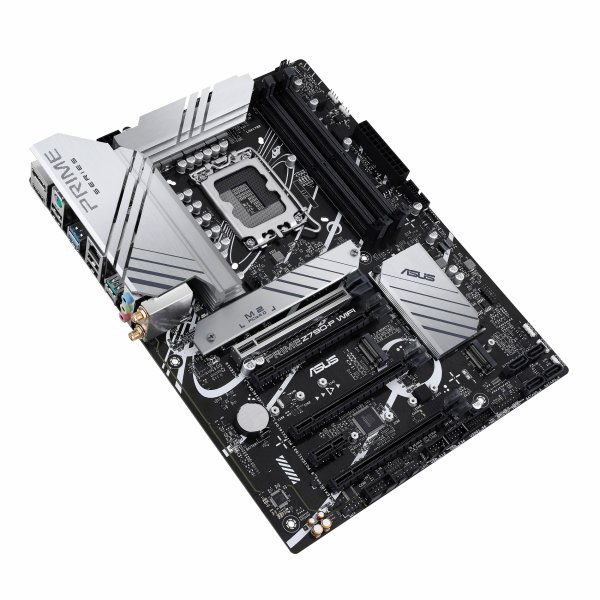

ASUS PRIME Z790-P WIFI

Tuote

Valmistaja

ASUS

Tuotenimi

PRIME Z790-P WIFI

Valmistajan linkki

https://www.asus.com/Motherboards-Components/Motherboards/PRIM..

Tuotekoodit

Valmistajan tuotekoodit

• 90MB1CJ0-M0EAY0
• 90MB1CJ0-M1EAY0
• PRIME Z790-P WIFI
• PRIMEZ790-PWIFI

GTIN- / EAN-koodit

• 0195553937221
• 4711081937227

Tuotekuvat

Processor

Processor manufacturer

Intel

Processor socket

LGA 1700

Compatible processor series

Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold

Supported processor sockets

LGA 1700

Memory

Supported memory types

DDR5-SDRAM

Number of memory slots

4

Memory slots type

DIMM

Memory channels

Dual-channel

ECC сompatibility

Non-ECC

Supported memory clock speeds

4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200 MHz

Supported memory clock speed (max)

7200 MHz

Maximum internal memory

128 GB

Unbuffered memory

Kyllä

Storage controllers

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

M.2, SATA III

RAID support

Kyllä

RAID levels

0, 1, 5, 10

Graphics

Parallel processing technology support

Not supported

Internal I/O

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

Number of SATA III connectors

4

S/PDIF out connector

Kyllä

Front panel audio connector

Kyllä

ATX Power connector (24-pin)

Kyllä

CPU fan connector

Kyllä

Number of chassis fan connectors

3

Peripheral (Molex) power connectors (4-pin)

1

EPS power connector (8-pin)

Kyllä

Number of COM connectors

1

TPM connector

Kyllä

Thunderbolt headers

1

12V power connector

Kyllä

RGB LED pin header

Kyllä

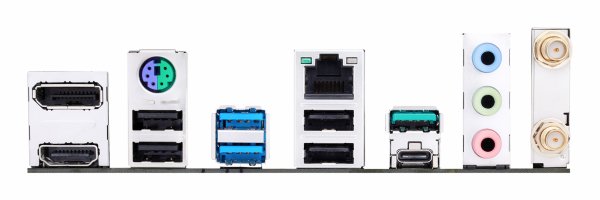

Rear panel I/O ports

USB 2.0 ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

USB 3.2 Gen 2x2 Type-C ports quantity

1

Ethernet LAN (RJ-45) ports

1

PS/2 ports quantity

1

VGA (D-Sub) ports quantity

0

HDMI ports quantity

1

DVI-D ports quantity

0

DisplayPorts quantity

1

Headphone outputs

1

Line-in

Kyllä

Microphone in

Kyllä

WiFi-AP antenna jack

1

Network

Ethernet LAN

Kyllä

Ethernet interface type

2.5 Gigabit Ethernet

Wi-Fi

Kyllä

Top Wi-Fi standard

Wi-Fi 6 (802.11ax)

Wi-Fi standards

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)

Bluetooth

Kyllä

Bluetooth version

5.2

Features

Component for

PC

Motherboard form factor

ATX

Motherboard chipset family

Intel

Motherboard chipset

Intel Z790

Audio output channels

7.1 channels

Power source type

ATX

Windows operating systems supported

Windows 10 x64, Windows 11

Expansion slots

PCI Express x1 (Gen 3.x) slots

1

PCI Express x16 (Gen 4.x) slots

3

PCI Express x16 (Gen 5.x) slots

1

Number of M.2 (M) slots

3

BIOS

BIOS type

UEFI AMI

BIOS memory size

192 Mbit

Clear CMOS button

Kyllä

Packaging data

Package width

338 mm

Package depth

273 mm

Package height

68 mm

Package weight

1682 g

Weight & dimensions

Width

305 mm

Depth

234 mm

Height

40 mm

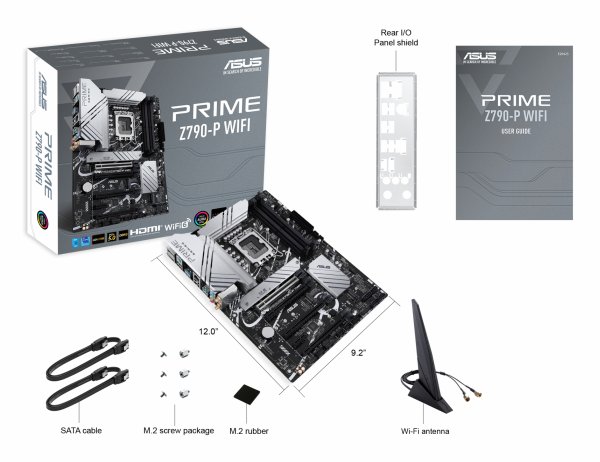

Packaging content

Cables included

SATA

Drivers included

Kyllä

Other features

Weight

1031 g
