MSI MAG B650 Tomahawk WIFI

Tuote

Valmistaja

MSI

Tuotenimi

MAG B650 Tomahawk WIFI

Valmistajan linkki

https://uk.msi.com/Motherboard/MAG-B650-TOMAHAWK-WIFI

Tuotekoodit

Valmistajan tuotekoodit

• 4711377010153
• 7D75-001R
• 911-7D75-05S
• MAG B650 TOMAHAWK WIFI
• MAGB650TOMAHAWKWIFI

GTIN- / EAN-koodit

• 4711377010153

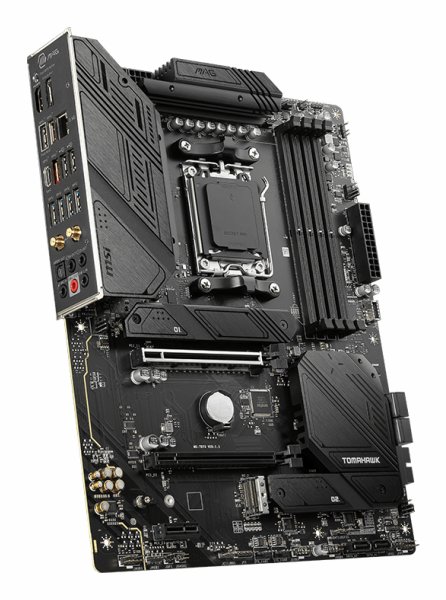

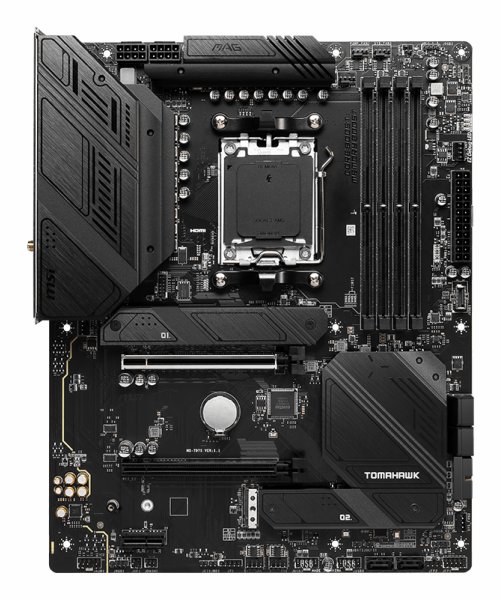

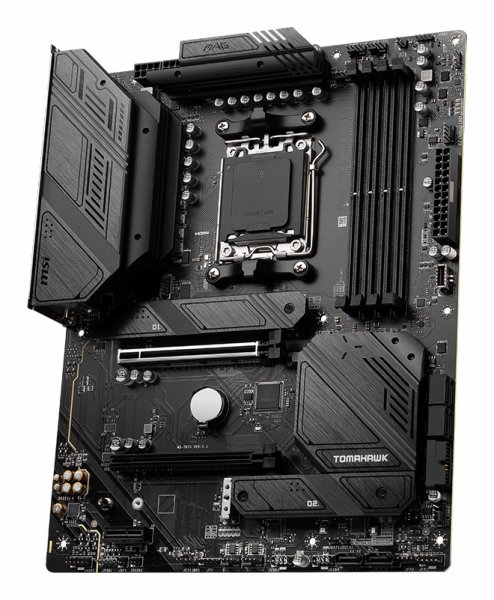

Tuotekuvat

Processor

Processor manufacturer

AMD

Processor socket

Socket AM5

Compatible processor series

AMD Ryzen 7000 Series

Supported processor sockets

Socket AM5

Memory

Supported memory types

DDR5-SDRAM

Number of memory slots

4

ECC сompatibility

Non-ECC

Supported memory clock speeds

4800,5000,5200,5400,5600,5800,6000,6200,6400,6600 MHz

Maximum internal memory

128 GB

Storage controllers

Supported storage drive interfaces

M.2, SATA

RAID support

Kyllä

RAID levels

0, 1, 10

Internal I/O

USB 2.0 connectors

4

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

6

Number of SATA II connectors

0

Number of SATA connectors

0

Front panel audio connector

Kyllä

Front panel connector

Kyllä

ATX Power connector (24-pin)

Kyllä

CPU fan connector

Kyllä

Chassis intrusion connector

Kyllä

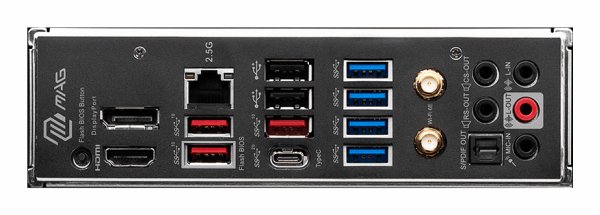

Rear panel I/O ports

USB 2.0 ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

3

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

USB 3.2 Gen 2x2 Type-C ports quantity

1

Ethernet LAN (RJ-45) ports

1

VGA (D-Sub) ports quantity

0

HDMI ports quantity

1

HDMI version

2.1

DVI-D ports quantity

0

Headphone outputs

1

Microphone in

Kyllä

S/PDIF out port

Kyllä

Network

Ethernet LAN

Kyllä

Ethernet interface type

2.5 Gigabit Ethernet

LAN controller

Realtek RTL8125B

Wi-Fi

Kyllä

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Wi-Fi standards

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)

Bluetooth

Kyllä

Bluetooth version

5.2

Features

Component for

PC

Motherboard form factor

ATX

Motherboard chipset family

AMD

Motherboard chipset

AMD B650

Audio chip

Realtek ALC4080

Audio output channels

7.1 channels

Product colour

Black

PC health monitoring

Fan

Windows operating systems supported

Windows 11 x64

Expansion slots

PCI Express x16 (Gen 3.x) slots

1

Number of M.2 (M) slots

3

Weight & dimensions

Width

304.8 mm

Depth

243.84 mm
