Ominaisuudet
- Prosessorin kanta
- LGA 1700
- Emolevyn muototekijä
- Mini ITX
- Emolevyn piirisarja
- Intel Z790
- Tuetut muistityypit
- DDR5-SDRAM
Arvostelut
Arvostele tuoteAlin hinta 30 päivän aikana
185,90 €
+0,16 %
Hinta on nyt 0,30 € kalliimpi.
HintahistoriaTuotetiedot
Tuote
- Valmistaja
- Asrock
- Tuotenimi
- Z790M-ITX WiFi
- Valmistajan linkki
- https://www.asrock.com/mb/Intel/Z790M-ITX%20WiFi/index.asp
Tuotekoodit
- Valmistajan tuotekoodit
- 4710483941054
- 90-MXBKE0-A0UAYZ
- Z790M-ITX WIFI
- Z790M-ITX-WIFI
- GTIN- / EAN-koodit
- 4710483941054
Tuotekuvat
Processor
- Processor manufacturer
- Intel
- Processor socket
- LGA 1700
- Compatible processor series
- Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
- Maximum number of SMP processors
- 1
Memory
- Supported memory types
- DDR5-SDRAM
- Number of memory slots
- 2
- Memory slots type
- DIMM
- Memory channels
- Dual-channel
- ECC сompatibility
- Non-ECC
- Maximum internal memory
- 64 GB
- Unbuffered memory
- Kyllä
Storage controllers
- Supported storage drive types
- HDD & SSD
- Supported storage drive interfaces
- M.2, SATA III
- RAID support
- Kyllä
- RAID levels
- 0, 1, 5, 10
Internal I/O
- USB 2.0 connectors
- 1
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 1
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
- 1
- Number of SATA III connectors
- 4
- Front panel audio connector
- Kyllä
- ATX Power connector (24-pin)
- Kyllä
- RGB LED pin header
- Kyllä

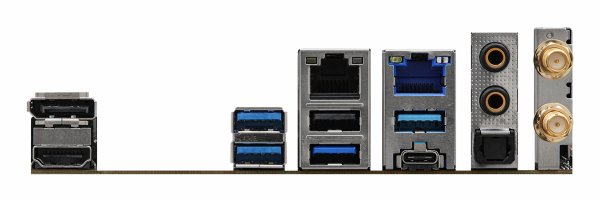

Rear panel I/O ports
- USB 2.0 ports quantity
- 1
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 0
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
- 0
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 4
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 0
- USB 3.2 Gen 2x2 Type-C ports quantity
- 1
- Ethernet LAN (RJ-45) ports
- 2
- VGA (D-Sub) ports quantity
- 0
- HDMI ports quantity
- 1
- DVI-D ports quantity
- 0
- DisplayPorts quantity
- 1
- DisplayPort version
- 1.4
- Headphone outputs
- 1
- Line-in
- Kyllä
- S/PDIF out port
- Kyllä
Network
- Ethernet LAN
- Kyllä
- Ethernet interface type
- 2.5 Gigabit Ethernet
- Wi-Fi
- Kyllä
- Top Wi-Fi standard
- Wi-Fi 6E (802.11ax)
- Wi-Fi standards
- 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)
- Bluetooth
- Kyllä
Features
- Component for
- PC
- Motherboard form factor
- mini ITX
- Motherboard chipset family
- Intel
- Motherboard chipset
- Intel Z790
- Audio chip
- Realtek ALC897
- Audio output channels
- 7.1 channels
- Windows operating systems supported
- Windows 10 x64, Windows 11 x64
Expansion slots
- PCI Express x16 (Gen 5.x) slots
- 1
BIOS
- BIOS type
- UEFI AMI
- BIOS memory size
- 128 Mbit
Weight & dimensions
- Width
- 170 mm
- Depth
- 170 mm
