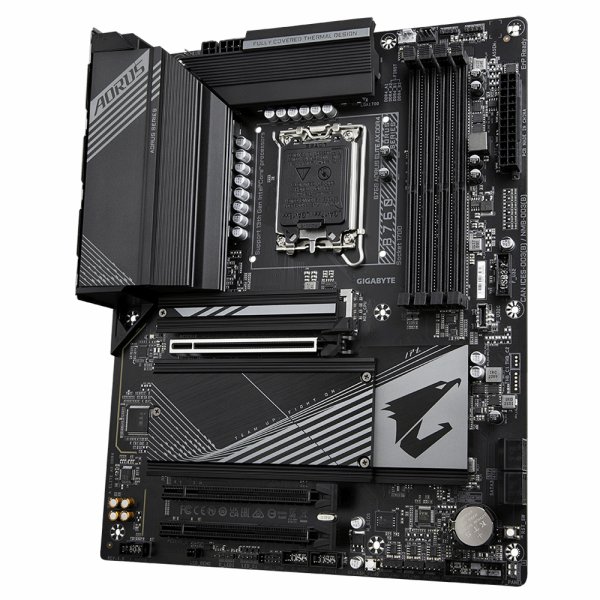

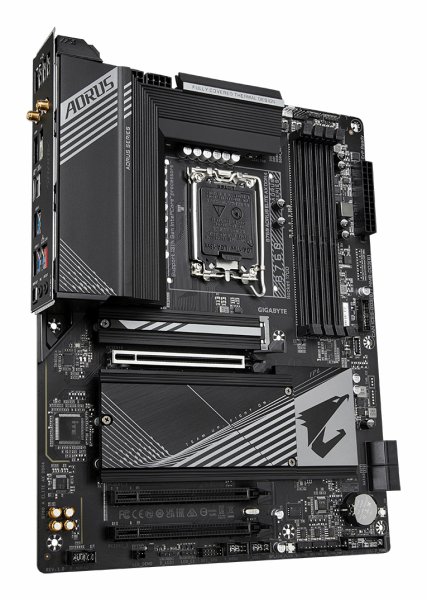

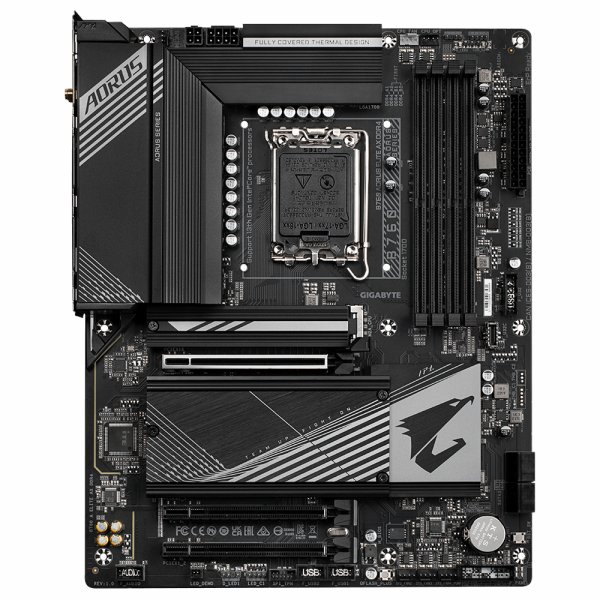

Gigabyte B760 AORUS ELITE AX DDR4

Tuote

Valmistaja

Gigabyte

Tuotenimi

B760 AORUS ELITE AX DDR4

Valmistajan linkki

https://www.gigabyte.com

Tuotekoodit

Valmistajan tuotekoodit

• B760 A ELITE AX DDR4
• B760 A ELITE AX DDR4 1.0
• B760 AORUS ELITE AX DDR4
• B760-A-ELITE-AX-DDR4
• B760AELITEAXDDR4

GTIN- / EAN-koodit

• 4719331851224

Tuotekuvat

Processor

Processor socket

LGA 1700

Compatible processor series

Intel® Celeron®, Intel® Pentium® Gold

Supported processor sockets

LGA 1700

Maximum internal memory supported by processor

128 GB

Memory

Supported memory types

DDR4-SDRAM

Number of memory slots

4

Memory slots type

DIMM

Memory channels

Dual-channel

ECC сompatibility

Non-ECC

Supported memory clock speeds

2133,2400,2666,2933,3000,3200,3300,3333,3466,3600,3666,3733,3800,3866,4000,4133,4266,4300,4400,4500,4600,4700,4800,4933,5000,5133,5333 MHz

Supported memory clock speed (max)

5333 MHz

Maximum internal memory

128 GB

Unbuffered memory

Kyllä

Storage controllers

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

M.2, SATA III

Number of HDDs supported

4

Number of storage drives supported

7

RAID support

Kyllä

RAID levels

0, 1, 5, 10

Graphics

Parallel processing technology support

Not supported

On-board graphics card

Kyllä

Graphics card family

Intel

Graphics card

HD Graphics

Maximum resolution

4096 x 2304 pixels

HDCP

Kyllä

DirectX version

12.0

On-board graphics card model

Intel® HD Graphics

Internal I/O

USB 2.0 connectors

4

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

Number of SATA III connectors

4

Total number of SATA connectors

4

Front panel audio connector

Kyllä

Front panel connector

Kyllä

ATX Power connector (24-pin)

Kyllä

Power fan connector

Kyllä

CPU fan connector

Kyllä

Number of chassis fan connectors

4

EPS power connector (8-pin)

Kyllä

TPM connector

Kyllä

12V power connector

Kyllä

RGB LED pin header

Kyllä

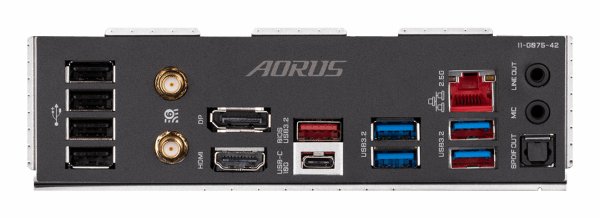

Rear panel I/O ports

USB 2.0 ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

Ethernet LAN (RJ-45) ports

1

VGA (D-Sub) ports quantity

0

HDMI ports quantity

1

HDMI version

2.0

DVI-D ports quantity

0

DisplayPorts quantity

1

DisplayPort version

1.2

Digital audio optical out

1

Network

Ethernet LAN

Kyllä

Ethernet interface type

2.5 Gigabit Ethernet

Wi-Fi

Kyllä

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Wi-Fi standards

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)

WLAN controller model

Intel Wi-Fi 6E AX211

Bluetooth

Kyllä

Bluetooth version

5.3

Features

Component for

PC

Motherboard form factor

ATX

Motherboard chipset family

Intel

Motherboard chipset

Intel B760 Express

Audio output channels

7.1 channels

Product colour

Black

PC health monitoring

Fan, Temperature, Voltage, Water cooling

Windows operating systems supported

Windows 10 x64, Windows 11 x64

Expansion slots

PCI Express x16 (Gen 3.x) slots

2

PCI Express x16 (Gen 4.x) slots

1

Number of M.2 (M) slots

3

BIOS

BIOS type

EFI AMI

BIOS memory size

256 Mbit

ACPI version

5.0

Clear CMOS jumper

Kyllä

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

Logistics data

Country of origin

China

Products per shipping (inner) case

1 pc(s)

Battery

Battery weight

3 g

Lithium weight per battery

0.07 g

Number of battery cells

1

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

Packaging data

Package width

335 mm

Package depth

270 mm

Package height

80 mm

Package weight

2173 g

Weight & dimensions

Width

305 mm

Depth

244 mm

Height

35 mm

Packaging content

Batteries included

Kyllä

Bundled software

Norton® Internet Security (OEM version) LAN bandwidth management software

Technical details

Warranty period

3 year(s)
