Ominaisuudet
- 80 PLUS certification
- 80 PLUS Gold
- Hyötysuhde
- 100 %
Arvostelut
Arvostele tuoteAlin hinta 30 päivän aikana
169,76 €
-0,02 %
Hinta on nyt 0,03 € halvempi.
HintahistoriaTuotetiedot
Tuote
- Valmistaja
- Thermaltake
- Tuotenimi
- SFX-750AH8FKG
Tuotekoodit
- Valmistajan tuotekoodit
- PS-STP-0750FNFAGE-1
- GTIN- / EAN-koodit
- 4713227534994
Tuotekuvat
Power
- Total power
- 750 W
- AC input voltage
- 100 - 240 V
- AC input frequency
- 50 - 60 Hz
- Input current
- 10 A
- Power Factor Correction (PFC) type
- Active
- Combined power (+3.3V)
- 100 W
- Combined power (+12V)
- 750 W
- Combined power (+5V)
- 100 W
- Combined power (-12V)
- 3.6 W
- Combined power (+5Vsb)
- 15 W
- Max output current (+3.3V)
- 20 A
- Max output current (+12V)
- 62.5 A
- Max output current (+5V)
- 20 A
- Max output current (-12V)
- 0.3 A
- Max output current (+5Vsb)
- 3 A
- Hold time
- 17 ms
- Efficiency
- 100 %
- Power protection features
- Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

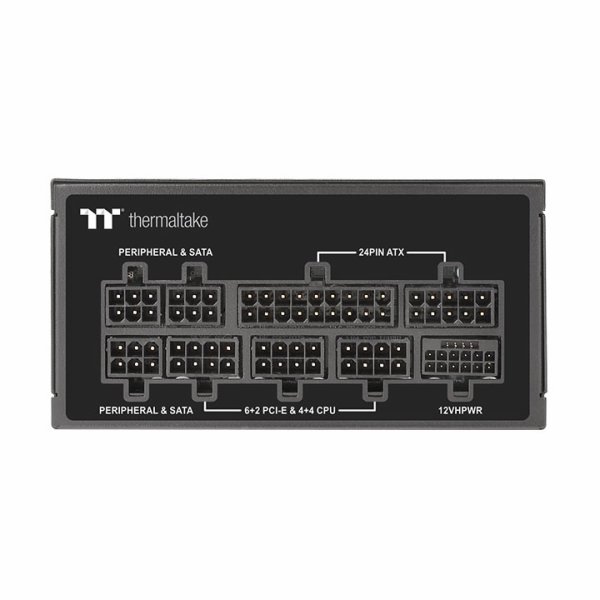

Ports & interfaces
- Motherboard power connector
- 24-pin ATX
- Motherboard power cable length
- 300 mm
- Number of SATA power connectors
- 8
- SATA power cable length
- 300 mm
- Peripheral (Molex) power connectors (4-pin)
- 4
- Peripheral (Molex) power cable length
- 300 mm
- PCI Express power connectors (6+2 pin)
- 2
- PCI Express power connectors (16-pin)
- 1
- PCI Express power cable length
- 4004 mm
- CPU power connector (4+4 pin)
- Kyllä
- CPU power cable length
- 400 mm
- ATX Power connector (24-pin)
- Kyllä
- Floppy disk drive connector
- Kyllä
- Floppy disk drive cable length
- 150 mm
- PCI Express connector
- Kyllä
- Cabling type
- Fully-Modular
Performance
- Purpose
- PC/Server
- Power supply unit (PSU) form factor
- ATX
- 80 PLUS certification
- 80 PLUS Gold
- Supported motherboard form factors
- ATX, micro ATX, Mini-ATX, Mini-ITX
- ATX version
- 3.0
- Bearing technology
- FDB
- Mean time between failures (MTBF)
- 100000 h
Design
- Product colour
- Black
- Cooling type
- Active
- Fan diameter
- 92 mm
- Number of fans
- 1 fan(s)
- Fan location
- Top
- On/off switch
- Kyllä
Operational conditions
- Operating temperature (T-T)
- 0 - 45 °C
- Storage temperature (T-T)
- -40 - 70 °C
- Operating relative humidity (H-H)
- 5 - 85 %
- Storage relative humidity (H-H)
- 5 - 95 %
Packaging content
- Cables included
- AC, CPU, PCIe, Peripheral (Molex), SATA
Certificates
- Compliance certificates
- CES, cTUVus, BSMI, CB, CCC, CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD), UKCA
Weight & dimensions
- Width
- 125 mm
- Depth
- 100 mm
- Height
- 63.5 mm
- Weight
- 1000 g
Technical details
- Sustainability compliance
- Kyllä
