Salicru EQX2 2001-S

Tuote

Valmistaja

Salicru

Tuotenimi

EQX2 2001-S

Tuotekoodit

Valmistajan tuotekoodit

• 6B2AB000001

GTIN- / EAN-koodit

• 8436584872870

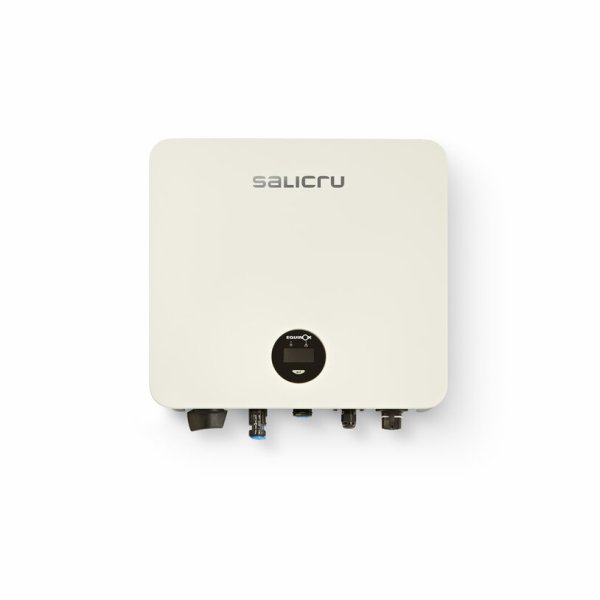

Tuotekuvat

Features

Product type

On-grid inverter

Output power capacity (max)

2.2 kVA

Output operation voltage (min)

195.5 V

Output operation voltage (max)

253 V

Output frequency

50/60 Hz

MPP voltage range

80 - 450 V

Maximum input power (DC)

2600 W

Maximum power

2000 W

Output current

8.7 A

Power consumption (idle)

1 W

Pollution degree

2/3

Starting voltage

60 V

DC input voltage

500 V

Isolation type

Transformerless

Network voltage

230 V

Short-circuit current per MPPT (max)

15 A

DC disconnector

Kyllä

Number of power levels

7

Number of maximum power point tracking (MPPT)

1

Number of strings per MPPT

1

Maximum input current per MPPT

12.5 A

Total Harmonic Distortion (THD)

3 %

Power factor

0.8

Noise level

25 dB

Efficiency

97.5 %

Efficiency (MPPT)

99.9 %

Efficiency (EU)

97 %

Photovoltaic (PV) charging supported

Kyllä

Material

Silicon carbide (SiC)

Certification

Certificate EN 61000-6-2/3, IEC 62109-1/2 / EN 61000-6-2/3, IEC EN UNE 61683, IEC EN UNE 60068-2-1/2/14/30, UNE EN 62116:2014, IEC 61727:2004, UNE 217002:2020, UNE 217001:2020, ISO 9001, ISO 14001, ISO 45001

Design

Product colour

Black, White

Housing material

Aluminium

Cooling type

Passive

International Protection (IP) code

IP65

Power protection features

Over voltage

Overvoltage category

CAT II

Wall mountable

Kyllä

Easy to install

Kyllä

Suitable for indoor use

Kyllä

Suitable for outdoor use

Kyllä

Display

Built-in display

Kyllä

Display technology

OLED

Operational conditions

Operating temperature (T-T)

30 - 60 °C

Operating relative humidity (H-H)

0 - 100 %

Operating altitude

0 - 4000 m

Weight & dimensions

Width

327 mm

Depth

114 mm

Height

297 mm

Weight

6500 g

Charger

Charger type

MPPT

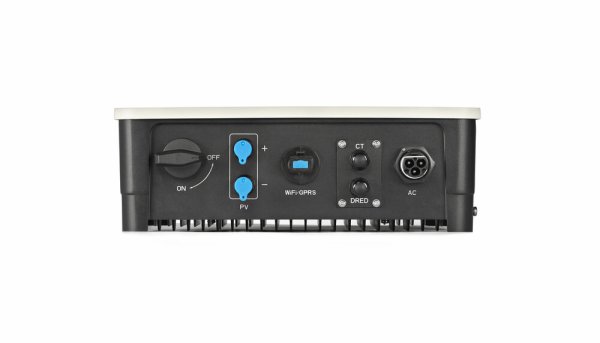

Ports & interfaces

Interface type

MC4

Photovoltaic (PV) input

2

RS-485 ports

1
