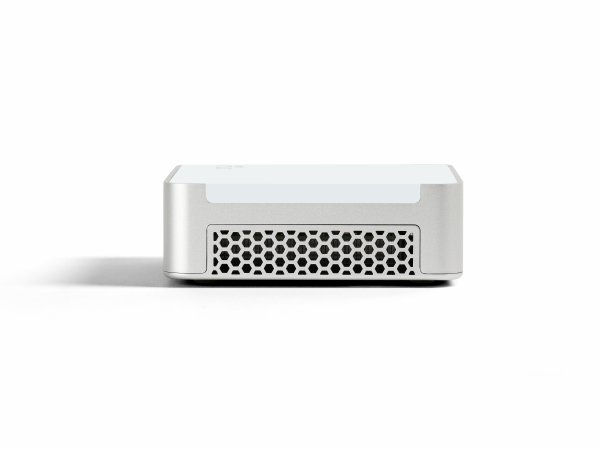

Intel NUC 13 Pro Desk Edition Kit (NUC13VYKi7)

Tuote

Valmistaja

Intel

Tuoteperhe / -sarja

NUC

Tuotenimi

13 Pro Desk Edition Kit (NUC13VYKi7)

Valmistajan linkki

https://ark.intel.com/content/www/us/en/ark/products/233969/in..

Tuotekoodit

Valmistajan tuotekoodit

• 90AB3VYK-MR8120
• RNUC13VYKI70002

GTIN- / EAN-koodit

• 5032037268448
• 5032037268455

Tuotekuvat

Processor

Built-in processor

Kyllä

Processor manufacturer

Intel

Processor family

Intel® Core™ i7

Processor generation

13th gen Intel® Core™ i7

Processor model

i7-1360P

Processor cores

12

Processor threads

16

Processor boost frequency

5 GHz

Performance cores

4

Efficient cores

8

Performance-core boost frequency

5 GHz

Efficient-core boost frequency

3.7 GHz

Processor cache

18 MB

Processor codename

Raptor Lake

CPU configuration (max)

1

Memory

Memory slots type

SO-DIMM

Number of memory slots

2

Number of DIMM slots

2

Maximum internal memory

64 GB

Supported memory clock speeds

3200 MHz

Supported memory types

DDR4-SDRAM

Memory channels

Dual-channel

Memory voltage

1.2 V

ECC

Ei

Non-ECC

Kyllä

Storage

Supported storage drive types

SSD

Storage drive sizes supported

M.2 "

SSD form factor

M.2

Storage drive interface

PCI Express, Serial ATA

NVMe

Kyllä

Number of storage drives supported

2

Graphics

On-board graphics card

Ei

Graphics card family

Intel

On-board graphics card model

Intel Iris Xe Graphics

Maximum resolution

7680 x 4320 pixels

Number of displays supported

4

Performance

Motherboard form factor

UCFF

Commodity Classification Automated Tracking System (CCATS)

G157815L2

Export Control Classification Number (ECCN)

5A992C

Audio

Built-in speaker(s)

Ei

Network

Ethernet LAN

Kyllä

Wi-Fi

Kyllä

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Wi-Fi standards

Wi-Fi 6E (802.11ax)

WLAN controller model

Intel Wi-Fi 6E AX211

LAN controller

Intel I226-V

Bluetooth

Kyllä

Bluetooth version

5.3

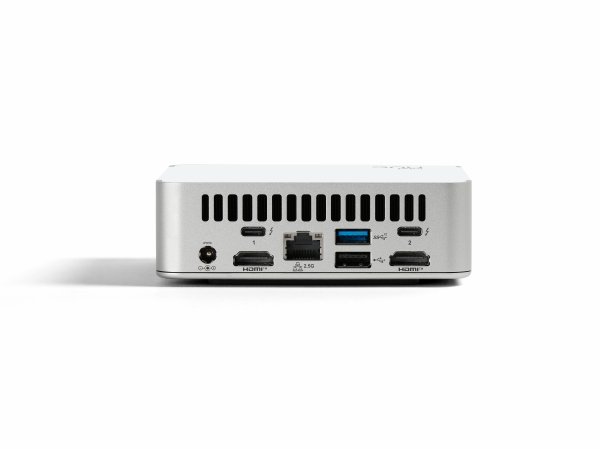

Ports & interfaces

USB 2.0 ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

HDMI ports quantity

2

HDMI version

2.1

VGA (D-Sub) ports quantity

0

Combo headphone/mic port

Kyllä

Ethernet LAN (RJ-45) ports

1

Serial port via internal header

Ei

Number of SATA III connectors

1

M.2 card slot (wireless)

2230 (E-key) (E)

USB ports quantity

4

M.2 card slot (storage)

22x80 NVMe (M); 22x42 SATA (B)

Thunderbolt 4 ports quantity

2

DC-in jack

Kyllä

Expansion slots

PCI Express slots version

3.0, 4.0

Number of M.2 (M) slots

1

Design

Chassis type

UCFF

Product colour

Silver, White

Cooling type

Active

On/off switch

Kyllä

LED indicators

Kyllä

Cable lock slot

Kyllä

Cable lock slot type

Kensington

Product type

Mini PC barebone

ARK ID

233969

Status

Launched

Product family

Intel NUC

Product codename

Vivid Canyon

Processor special features

Intel® High Definition Audio (Intel® HD Audio)

Kyllä

Embedded options available

Ei

Intel® AES New Instructions (Intel® AES-NI)

Kyllä

Intel Virtualization Technology for Directed I/O (VT-d)

Kyllä

Intel VT-x with Extended Page Tables (EPT)

Kyllä

Intel Flex Memory Access

Kyllä

Intel Trusted Execution Technology

Kyllä

Execute Disable Bit

Kyllä

Intel ME Firmware Version

16.1

Intel® Optane™ Memory Ready

Ei

Intel® Platform Trust Technology (Intel® PTT)

Kyllä

Intel Virtualization Technology (VT-x)

Kyllä

Technical details

Compliance certificates

REACH, RoHS

Logistics data

Harmonized System (HS) code

8471500150

Software

Windows operating systems supported

Windows 10 IoT Enterprise, Windows 11 Home, Windows 11 Pro

Linux operating systems supported

Kyllä

Compatible operating systems

Windows 11 Home*, Windows 11 Pro*, Windows 10 IoT Enterprise*, Red Hat Linux*, Ubuntu*

Operating system installed

Ei

Power

Power supply type

External AC adapter

Power supply

120 W

AC adapter output voltage

20 V

Operational conditions

Operating temperature (T-T)

0 - 35 °C

Storage temperature (T-T)

-20 - 60 °C

Weight & dimensions

Width

117 mm

Depth

112 mm

Height

37 mm

Packaging content

Power cord included

Kyllä

Other features

DC input voltage

12 - 20 V

Launch date

Q2'23
