Ominaisuudet
- 80 PLUS certification
- 80 PLUS Gold
- Hyötysuhde
- 90 %
Arvostelut
Arvostele tuoteAlin hinta 30 päivän aikana
89,90 €
-22,25 %
Hinta on nyt 20 € halvempi.
HintahistoriaTuotetiedot
Tuote
- Valmistaja
- MSI
- Tuoteperhe / -sarja
- MAG
- Tuotenimi

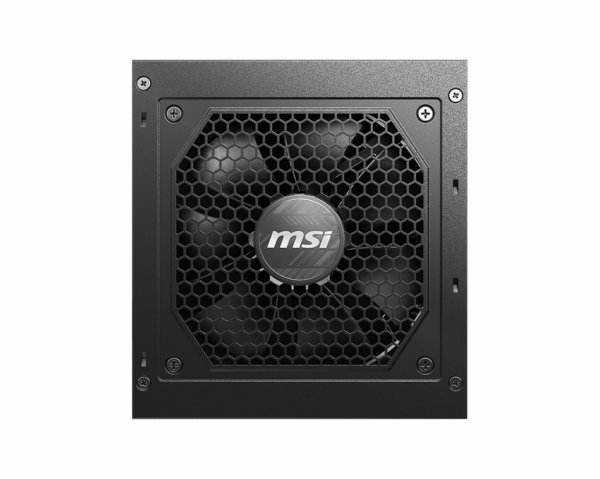

- A750GL PCIE5
- Valmistajan linkki
- https://www.msi.com/Power-Supply/MAG-A750GL-PCIE5
Tuotekoodit
- Valmistajan tuotekoodit
- 306-7ZP8B11-CE0
- 306-7ZP8E11-CE0
- 3067ZP8B11CE0
- MAG A750GL PCIE5
- MAG A750GL PCIE5 II
- MAG-A750GL-PCIE5
- MAGA750GLPCIE5
- GTIN- / EAN-koodit
- 4711377084284
- 4711377087261
- 4711377246705
Tuotekuvat
Power
- Total power
- 750 W
- AC input voltage
- 100 - 240 V
- AC input frequency
- 47 - 63 Hz
- Maximum input current (@110V)
- 8 A
- Maximum input current (@220V)
- 4 A
- Power Factor Correction (PFC) type
- Active
- Combined power (+3.3V)
- 110 W
- Combined power (+12V)
- 744 W
- Combined power (+5V)
- 110 W
- Combined power (-12V)
- 3.6 W
- Combined power (+5Vsb)
- 12.5 W
- Max output current (+3.3V)
- 20 A
- Max output current (+12V)
- 62 A
- Max output current (+5V)
- 20 A
- Max output current (-12V)
- 0.3 A
- Max output current (+5Vsb)
- 2.5 A
- Efficiency
- 90 %
- Power protection features
- Over current, Over power, Over voltage, Overheating, Short circuit
Ports & interfaces

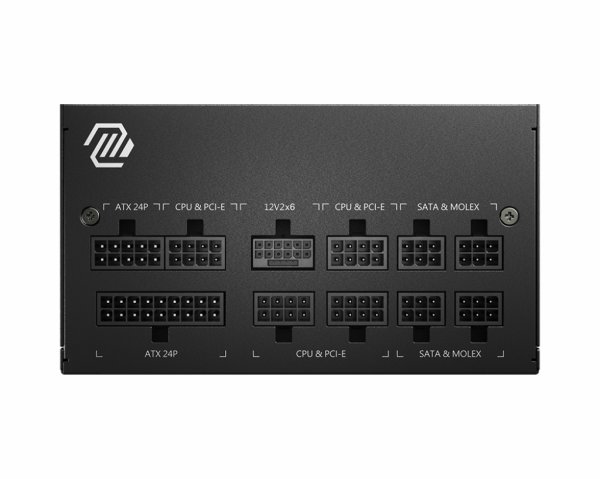

- Motherboard power connector
- 20+4 pin ATX
- Motherboard power cable length
- 450 mm
- Number of SATA power connectors
- 8
- Peripheral (Molex) power connectors (4-pin)
- 4
- EPS power connector (8-pin)
- Ei
- EPS power connector (4+4 pin)
- Kyllä
- PCI Express power connectors (6-pin)
- 0
- PCI Express power connectors (6+2 pin)
- 3
- PCI Express power connectors (8-pin)
- 0
- PCI Express power connectors (12+4 pin)
- 0
- PCI Express power connectors (12-pin)
- 0
- CPU power connector (4+4 pin)
- Kyllä
- ATX Power connector (24-pin)
- Ei
- ATX power connector (20+4 pin)
- Ei
- PCI Express connector
- Kyllä
- Cabling type
- Fully-Modular
Performance
- Purpose
- PC
- Power supply unit (PSU) form factor
- ATX
- 80 PLUS certification
- 80 PLUS Gold
- ATX version
- 3.1
Design
- Product colour
- Black
- Cooling type
- Active
- Fan diameter
- 120 mm
- Number of fans
- 1 fan(s)
- Illumination
- Ei
- On/off switch
- Kyllä
Weight & dimensions
- Width
- 150 mm
- Depth
- 140 mm
- Height
- 86 mm
Packaging data
- Package type
- Box
Logistics data
- Harmonized System (HS) code
- 84733020
