Gigabyte A620I AX 1.0

Tuote

Valmistaja

Gigabyte

Tuotenimi

A620I AX 1.0

Valmistajan linkki

https://www.gigabyte.com/Motherboard/A620I-AX-rev-10#kf

Tuotekoodit

Valmistajan tuotekoodit

• A620I AX
• A620I AX 1.0
• A620IAX1.0

GTIN- / EAN-koodit

• 4719331855826

Tuotekuvat

Processor

Processor manufacturer

AMD

Processor socket

Socket AM5

Memory

Supported memory types

DDR5-SDRAM

Number of memory slots

2

Memory slots type

DIMM

Memory channels

Dual-channel

ECC сompatibility

Non-ECC

Supported memory clock speeds

4400,4800,5200,5600,6000,6200,6400 MHz

Supported memory clock speed (max)

6400 MHz

Maximum internal memory

96 GB

Supported memory module capacities

48GB

Unbuffered memory

Kyllä

Storage controllers

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

M.2, SATA III

RAID support

Kyllä

RAID levels

0, 1

Graphics

Maximum resolution

4096 x 2160 pixels

HDCP

Kyllä

Internal I/O

USB 2.0 connectors

1

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

Number of SATA III connectors

2

Front panel audio connector

Kyllä

Front panel connector

Kyllä

ATX Power connector (24-pin)

Kyllä

CPU fan connector

Kyllä

Chassis intrusion connector

Kyllä

12V power connector

Kyllä

RGB LED pin header

Kyllä

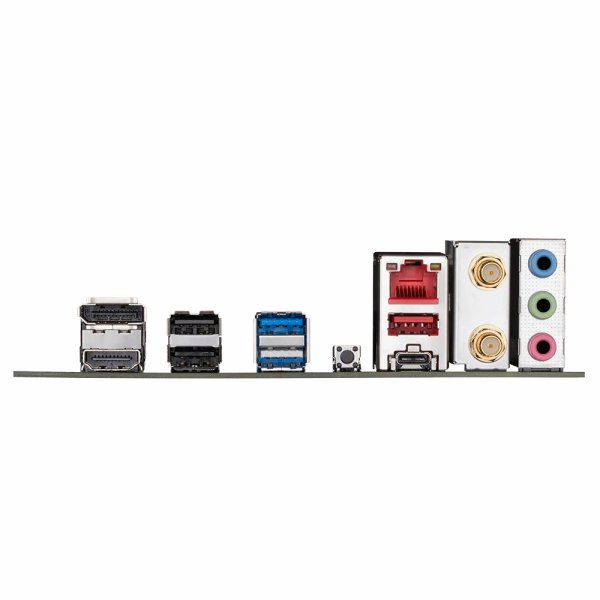

Rear panel I/O ports

USB 2.0 ports quantity

3

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

Ethernet LAN (RJ-45) ports

1

HDMI ports quantity

1

DisplayPorts quantity

1

DisplayPort version

1.4

Headphone outputs

1

Line-in

Kyllä

Microphone in

Kyllä

WiFi-AP antenna jack

2

USB connector type

USB Type-A, USB Type-C

Network

Ethernet LAN

Kyllä

Ethernet interface type

2.5 Gigabit Ethernet

Wi-Fi

Kyllä

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Wi-Fi standards

802.11a, 802.11b, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)

WLAN controller model

Realtek RTL8852CE

Bluetooth

Kyllä

Bluetooth version

5.3

Features

Component for

PC

Motherboard form factor

mini ITX

Motherboard chipset family

AMD

Motherboard chipset

AMD A620

Audio output channels

7.1 channels

PC health monitoring

Fan, Temperature, Voltage, Water cooling

Windows operating systems supported

Windows 10 x64, Windows 11 x64

Expansion slots

PCI Express x16 (Gen 4.x) slots

1

Number of M.2 (M) slots

1

BIOS

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

ACPI version

5.0

Clear CMOS jumper

Kyllä

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

Weight & dimensions

Width

170 mm

Depth

170 mm

Packaging content

Bundled software

Norton® Internet Security (OEM) LAN bandwidth management
