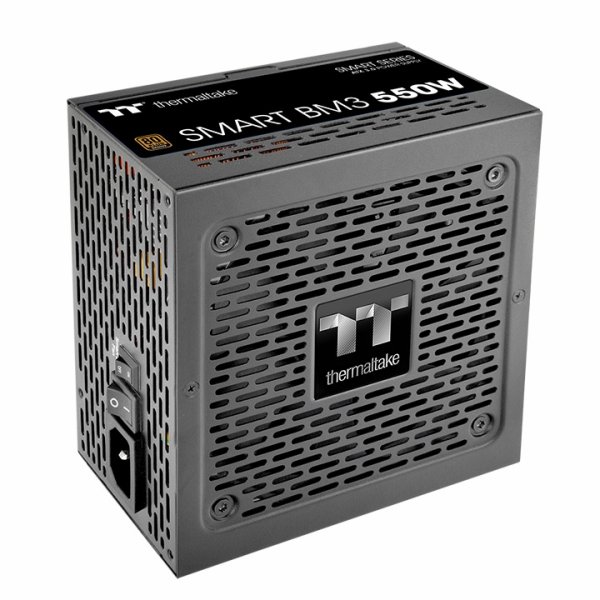

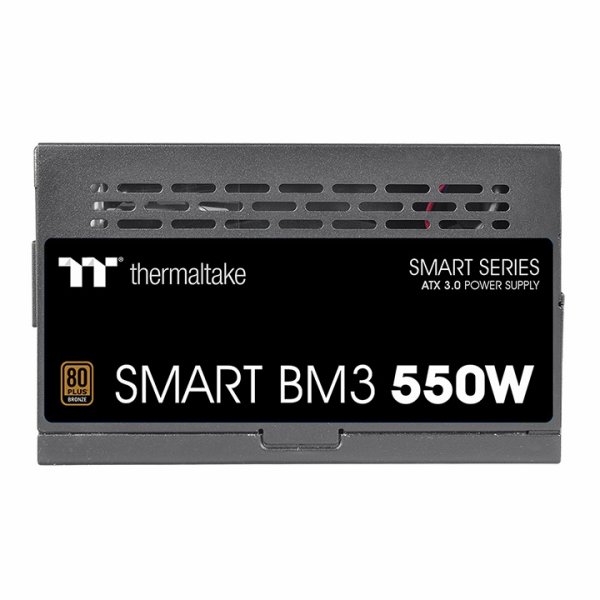

Thermaltake Smart BM3

Tuote

Valmistaja

Thermaltake

Tuotenimi

Smart BM3

Julkaisupäivä

04.06.2023

Tuotekoodit

Valmistajan tuotekoodit

• PS-SPD-0550MNFABE-3

GTIN- / EAN-koodit

• 4713227539524

Tuotekuvat

Power

Total power

550 W

AC input voltage

100 - 240 V

AC input frequency

50/60 Hz

Input current

12 A

Power Factor Correction (PFC) type

Active

Combined power (+3.3V)

105 W

Combined power (+12V)

550 W

Combined power (+5V)

105 W

Combined power (-12V)

3.6 W

Combined power (+5Vsb)

15 W

Max output current (+3.3V)

16 A

Max output current (+12V)

45.85 A

Max output current (+5V)

16 A

Max output current (-12V)

0.3 A

Max output current (+5Vsb)

3 A

Hold time

17 ms

Power protection features

Over power, Over voltage, Overheating, Overload, Short circuit, Under voltage

Ports & interfaces

Motherboard power connector

24-pin ATX

Motherboard power cable length

600 mm

Number of SATA power connectors

3

SATA power cable length

150,500 mm

Peripheral (Molex) power connectors (4-pin)

7

Peripheral (Molex) power cable length

150,500 mm

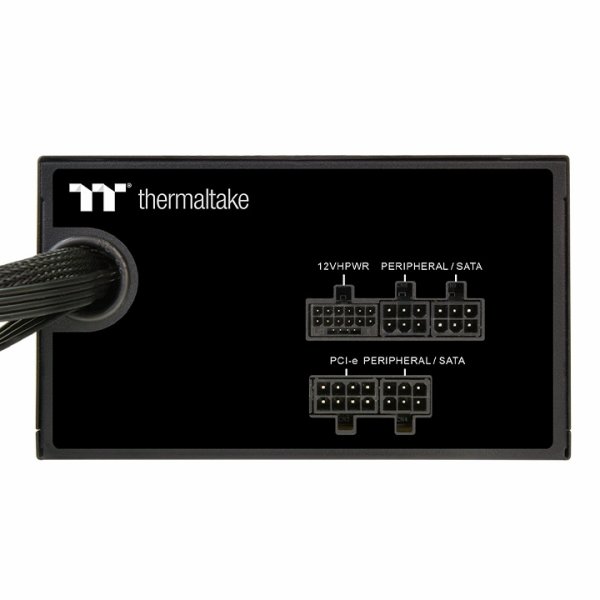

PCI Express power connectors (6+2 pin)

2

PCI Express power connectors (12+4 pin)

1

PCI Express power connectors (12+4 pin) cable length

600 mm

Cabling type

Semi-Modular

Performance

Purpose

PC

Power supply unit (PSU) form factor

ATX

80 PLUS certification

80 PLUS Bronze

ATX version

3.0

Mean time between failures (MTBF)

100000 h

Design

Product colour

Black

Cooling type

Active

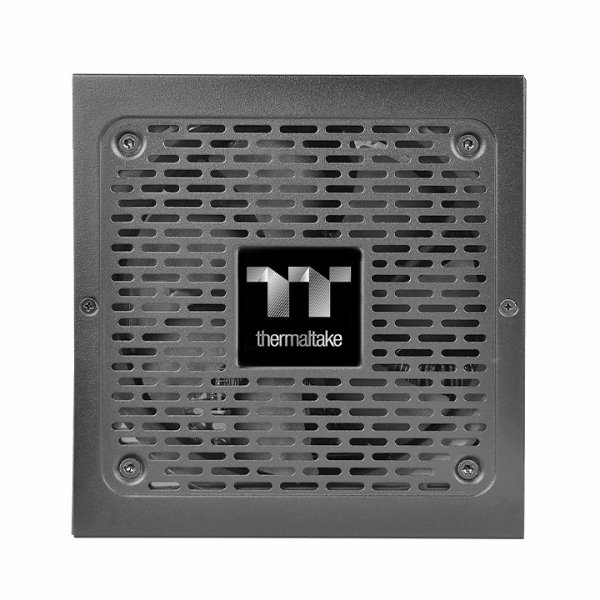

Fan diameter

120 mm

Number of fans

1 fan(s)

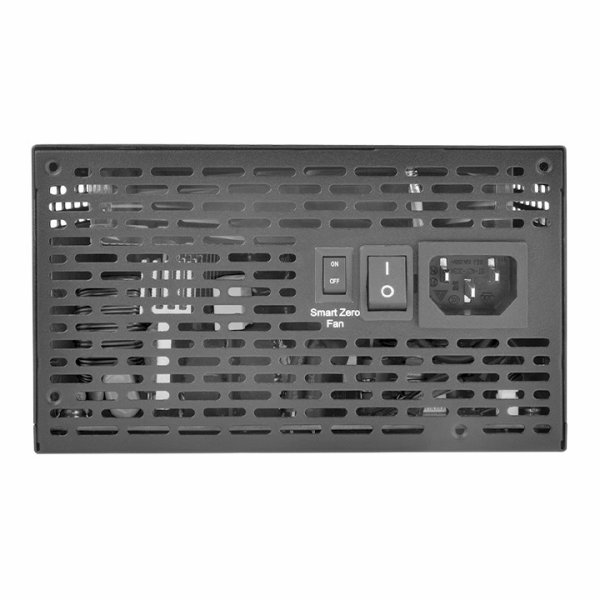

On/off switch

Kyllä

Operational conditions

Operating temperature (T-T)

5 - 45 °C

Storage temperature (T-T)

-40 - 55 °C

Operating relative humidity (H-H)

20 - 85 %

Storage relative humidity (H-H)

10 - 95 %

Safety regulation & standards

Safety

CE/UKCA/LVD/UKCA/FCC/ICES/TUV/CB/cTUVus/BSMI/CCC

Weight & dimensions

Width

150 mm

Depth

140 mm

Height

86 mm
