Gigabyte B650M S2H

Tuote

Valmistaja

Gigabyte

Tuotenimi

B650M S2H

Valmistajan linkki

https://www.gigabyte.com/

Tuotekoodit

Valmistajan tuotekoodit

• B650M S2H
• B650M S2H 1.0
• B650M-S2H
• B650MS2H

GTIN- / EAN-koodit

• 4719331856298

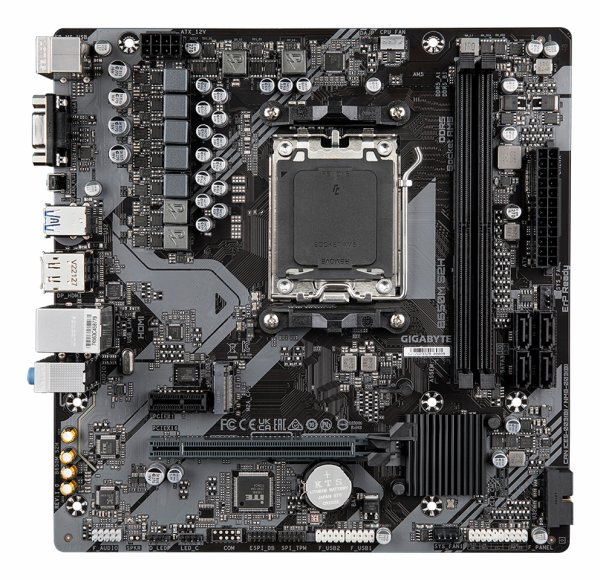

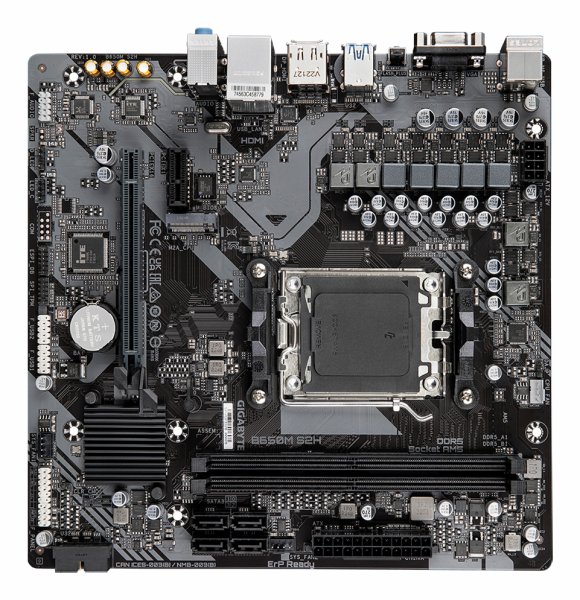

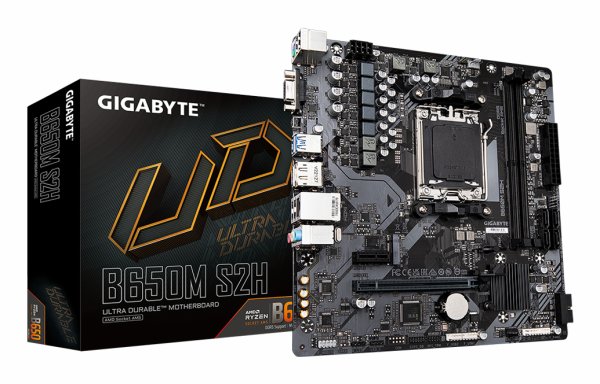

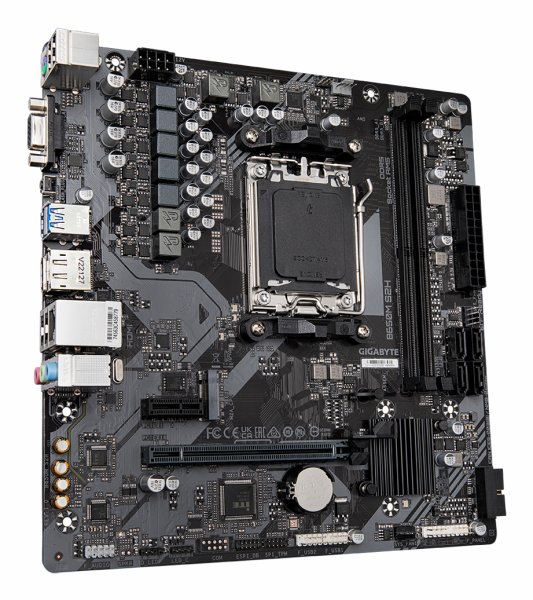

Tuotekuvat

Processor

Processor manufacturer

AMD

Processor socket

Socket AM5

Compatible processor series

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Supported processor sockets

Socket AM5

Memory

Supported memory types

DDR5-SDRAM

Number of memory slots

2

Memory slots type

DIMM

Memory channels

Dual-channel

ECC сompatibility

Non-ECC

Supported memory clock speeds

4400,4800,5200,5600,6000,6200,6400 MHz

Supported memory clock speed (max)

6400 MHz

Maximum internal memory

128 GB

Unbuffered memory

Kyllä

Maximum internal memory per slot

64 GB

Storage controllers

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

M.2, SATA III

Number of HDDs supported

4

Number of storage drives supported

5

RAID support

Kyllä

RAID levels

0, 1, 10

Graphics

Parallel processing technology support

Not supported

Maximum resolution

4096 x 2160 pixels

HDCP

Kyllä

DirectX version

12.0

Discrete graphics support

Kyllä

Internal I/O

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

Front panel audio connector

Kyllä

Front panel connector

Kyllä

ATX Power connector (24-pin)

Kyllä

CPU fan connector

Kyllä

Number of CPU fan connectors

1

Number of chassis fan connectors

2

EPS power connector (8-pin)

Kyllä

Number of EPS power connectors (8-pin)

1

TPM connector

Kyllä

12V power connector

Kyllä

RGB LED pin header

Kyllä

Number of RGB LED pin headers

2

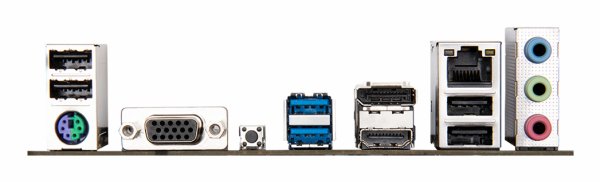

Rear panel I/O ports

USB 2.0 ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

Ethernet LAN (RJ-45) ports

1

PS/2 ports quantity

1

VGA (D-Sub) ports quantity

1

HDMI ports quantity

1

HDMI version

2.1

DVI-D ports quantity

0

DisplayPorts quantity

1

DisplayPort version

1.4

Headphone outputs

1

Line-in

Kyllä

Microphone in

Kyllä

Network

Ethernet LAN

Kyllä

Ethernet interface type

Gigabit Ethernet

LAN controller

Realtek RTL8111H

Wi-Fi

Ei

Features

Component for

PC

Motherboard form factor

micro ATX

Motherboard chipset family

AMD

Motherboard chipset

AMD B650

Audio chip

Realtek ALC897

Audio output channels

7.1 channels

Product colour

Brown

PC health monitoring

Fan, Temperature, Voltage

Cooling type

Passive

Power source type

ATX

Windows operating systems supported

Windows 10 x64, Windows 11 x64

Expansion slots

PCI Express x1 (Gen 3.x) slots

1

PCI Express x16 (Gen 4.x) slots

1

Number of M.2 (M) slots

1

1st M.2 largest key size

2580

1st M.2 highest PCI Express generation

4.0

BIOS

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

ACPI version

5.0

Clear CMOS jumper

Kyllä

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

Logistics data

Country of origin

China

Products per shipping (inner) case

1 pc(s)

Battery

Battery weight

3 g

Lithium weight per battery

0.07 g

Number of battery cells

1

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

Packaging data

Package width

265 mm

Package depth

265 mm

Package height

54 mm

Package weight

917 g

Weight & dimensions

Width

230 mm

Depth

225 mm

Height

35 mm

Packaging content

Batteries included

Kyllä

Screws included

Kyllä

Bundled software

Norton® Internet Security (OEM version) LAN bandwidth management software

Technical details

Warranty period

3 year(s)
